| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-50-11211 | PIN | A10001-- | |
| 2 | 01010-81425 | BOLT | A10001-- | |
| 3 | 569-40-61710 | WASHER | A10001-- | |
| 4 | 56B-50-11240 | SPACER | A10001-- | |
| 5 | 56B-50-13222 | COVER | A10001-- | |
| 6 | 07281-11469 | CLAMP | A10001-- | |
| 7 | 566-09-6A110 | CLAMP | A10001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 1l s/n a10001 up
- Suspension and wheel related parts
- Fig. s3200 02a0 front suspension (r.h.)
Поиск по каталогу

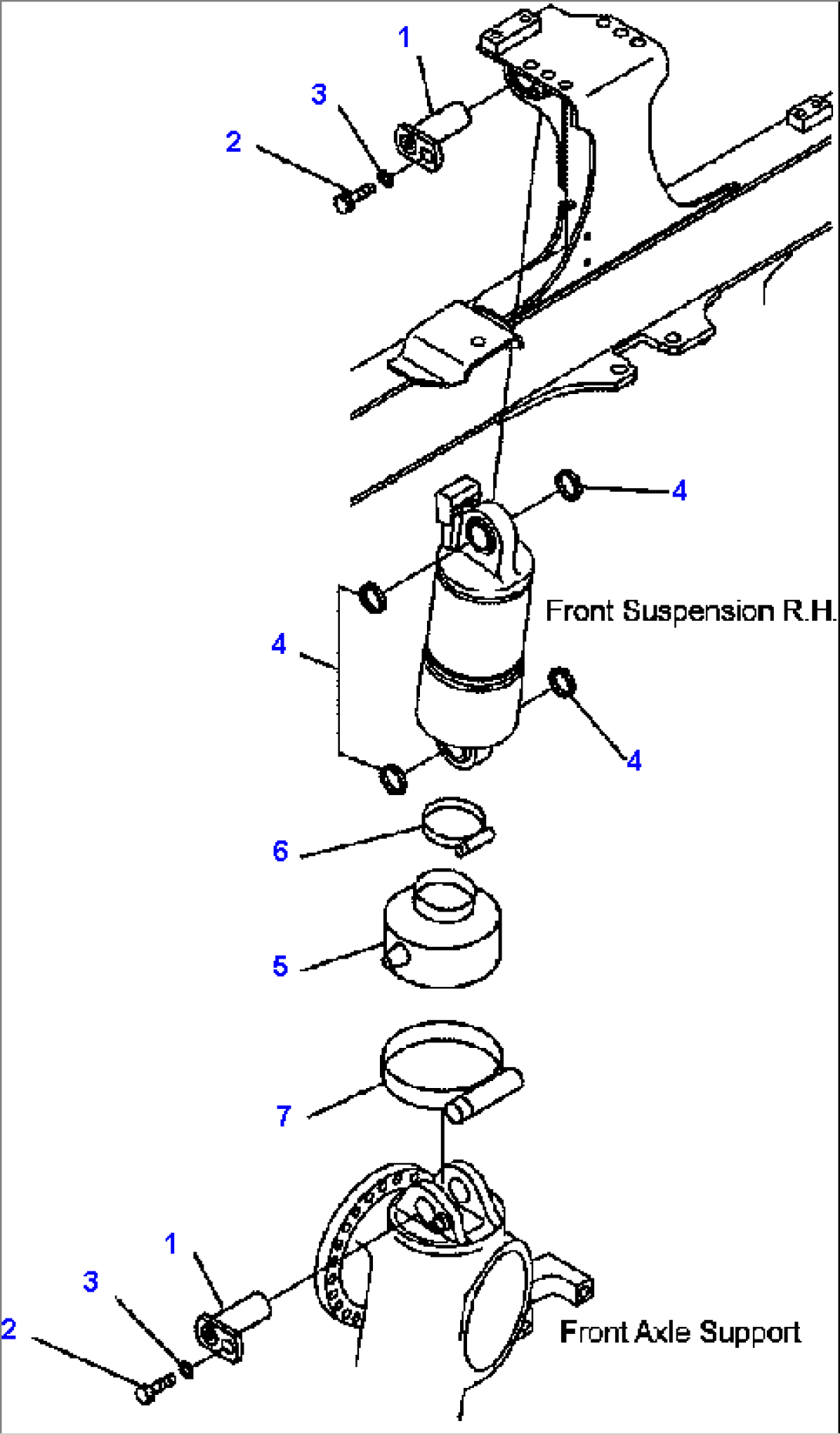

FIG. S3200-02A0 FRONT SUSPENSION (R.H.)
