| Item | Part No. | Part Name | Qty | Serial No. |

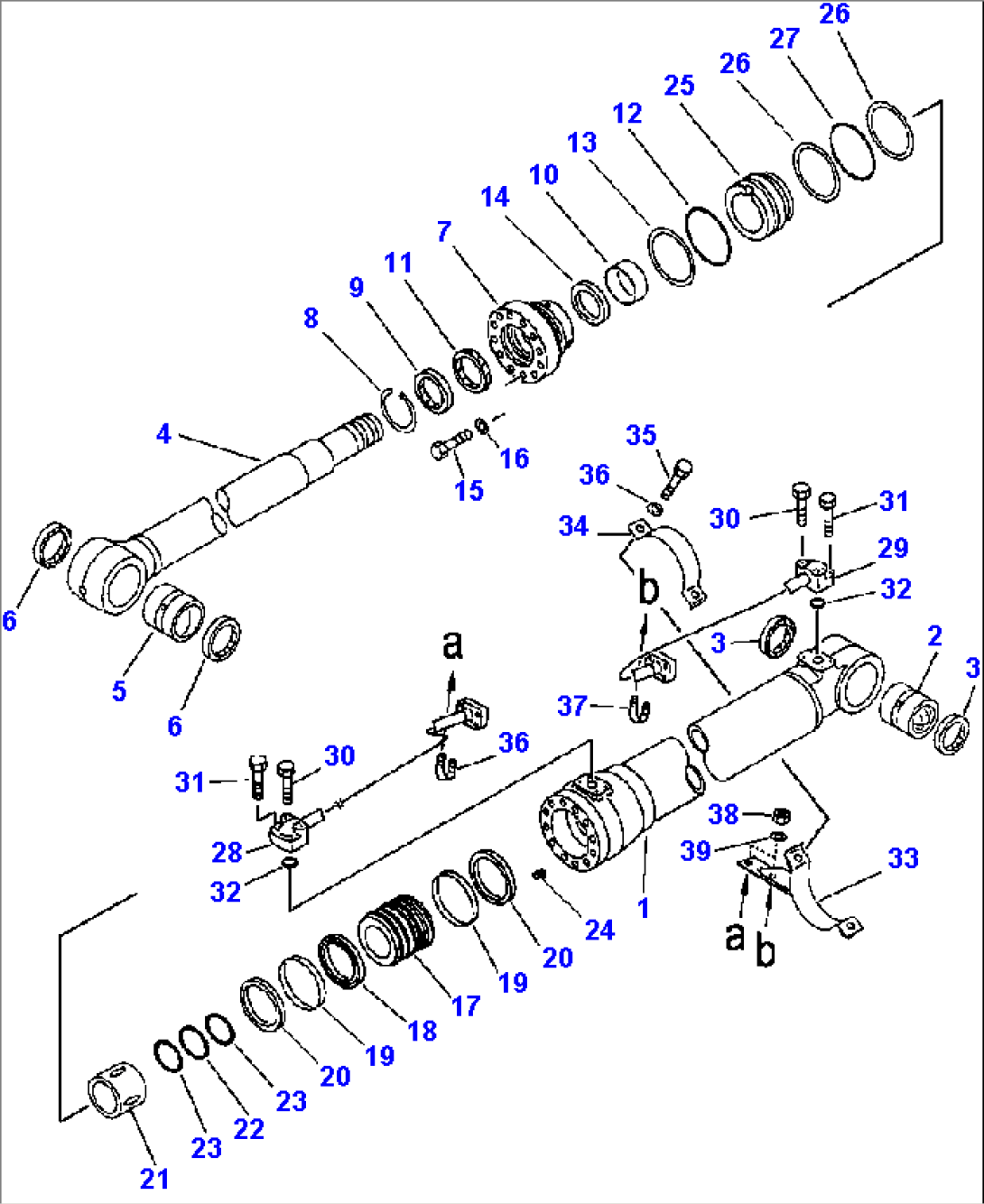

| 206-63-03100 | CYLINDER ASSEMBLY | A85001-- | ||
| 1 | 206-63-54740 | CYLINDER | A85001-- | |
| 2 | 206-70-55280 | BUSHING | A85001-- | |
| 3 | 07145-00080 | SEAL, DUST (KIT) | A85001-- | |
| 4 | 206-63-54720 | ROD, PISTON | A85001-- | |
| 5 | 707-76-80010 | BUSHING | A85001-- | |
| 6 | 07145-00080 | SEAL, DUST (KIT) | A85001-- | |
| 7 | 707-27-13921 | HEAD, CYLINDER | A85001-- | |
| 8 | 07179-13104 | RING, SNAP | A85001-- | |
| 9 | 195-63-94170 | SEAL, DUST (KIT) | A85001-- | |
| 10 | 707-52-90680 | BUSHING | A85001-- | |
| 11 | 707-51-90030 | PACKING, ROD (KIT) | A85001-- | |
| 12 | 07000-15120 | O-RING (KIT) | A85001-- | |
| 13 | 707-35-91320 | RING, BACK-UP (KIT) | A85001-- | |
| 14 | 707-51-90630 | RING, BUFFER (KIT) | A85001-- | |
| 15 | 01010-81670 | BOLT | A85001-- | |
| 16 | 01643-51645 | WASHER | A85001-- | |
| 17 | 707-36-13471 | PISTON | A85001-- | |
| 18 | 707-44-13180 | RING, PISTON (KIT) | A85001-- | |
| 19 | 707-39-13110 | RING, WEAR (KIT) | A85001-- | |
| 20 | 707-44-13911 | RING | A85001-- | |
| 21 | 707-71-60930 | PLUNGER | A85001-- | |
| 22 | 07000-15080 | O-RING | A85001-- | |
| 23 | 707-35-90940 | RING, BACK-UP | A85001-- | |
| 24 | 01310-01216 | SCREW | A85001-- | |
| 25 | 707-71-32680 | COLLAR | A85001-- | |
| 26 | 707-35-91320 | RING, BACK-UP | A85001-- | |
| 27 | 07000-15120 | O-RING (KIT) | A85001-- | |
| 28 | 206-63-54770 | TUBE, LEFT HAND | A85001-- | |
| 206-63-54870 | TUBE, RIGHT HAND | A85001-- | ||
| 29 | 206-62-64270 | TUBE, LEFT HAND | A85001-- | |
| 206-62-64290 | TUBE, RIGHT HAND | A85001-- | ||
| 30 | 01435-01055 | BOLT | A85001-- | |
| 31 | 01435-01040 | BOLT | A85001-- | |
| 32 | 07000-13030 | O-RING (KIT) | A85001-- | |
| 33 | 206-63-54192 | BRACKET, L.H. | A85001-- | |
| 206-63-54292 | BRACKET, RIGHT HAND | A85001-- | ||
| 34 | 707-88-95081 | BAND | A85001-- | |
| 35 | 01010-81035 | BOLT | A85001-- | |
| 36 | 01643-51032 | WASHER | A85001-- | |
| 37 | 07283-22738 | CLIP | A85001-- | |
| 38 | 01599-01011 | NUT | A85001-- | |
| 39 | 01643-31032 | WASHER | A85001-- |
