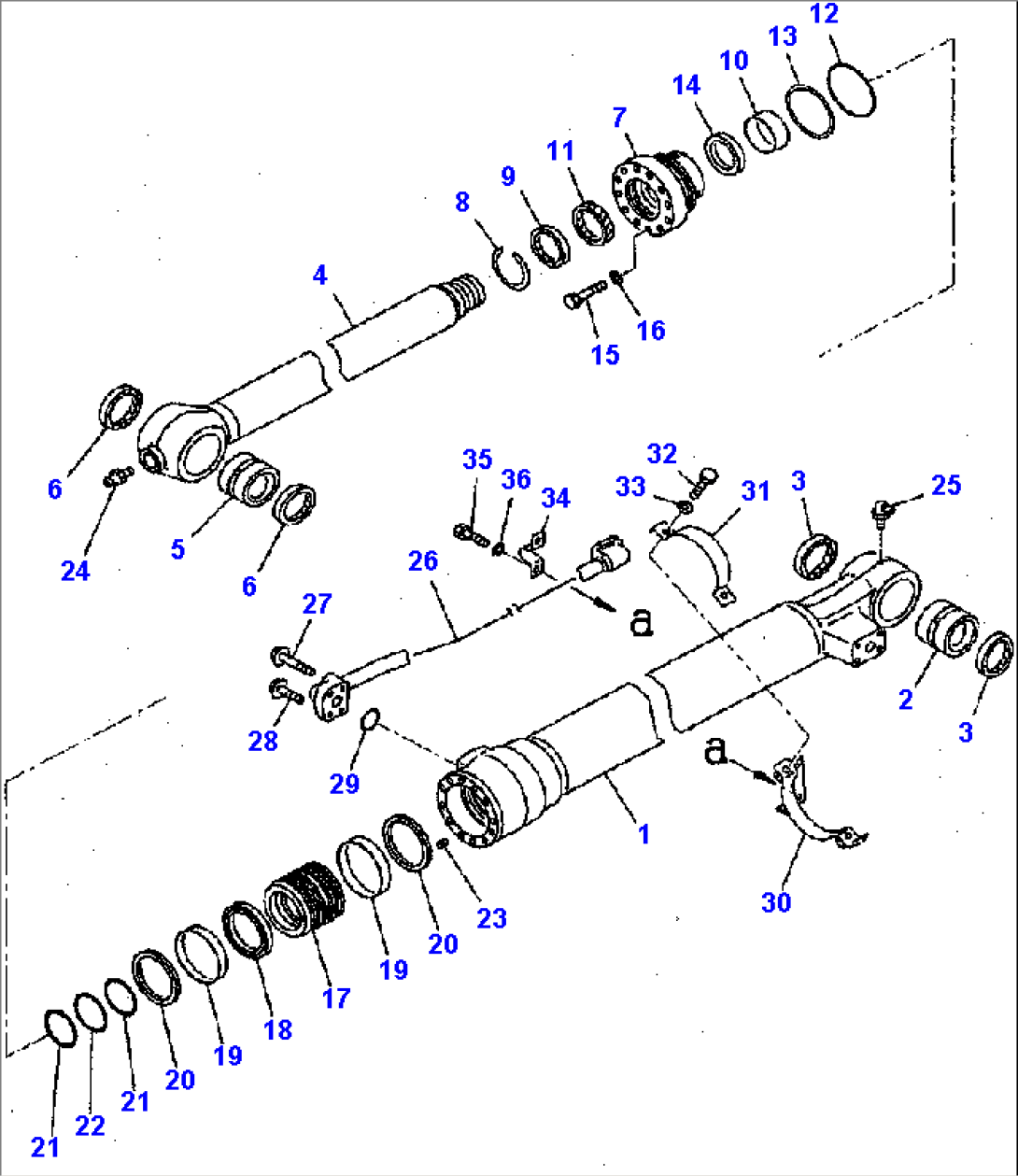

| Item | Part No. | Part Name | Qty | Serial No. |
| 205-63-03131 | CYLINDER ASSEMBLY | A85001 -- | ||
| 1 | 205-63-71141 | CYLINDER | A85001 -- | |
| 2 | 707-76-70110 | BUSHING | A85001 -- | |
| 3 | 07145-00070 | SEAL, DUST (KIT) | A85001 -- | |
| 4 | 205-63-71121 | ROD, PISTON | A85001 -- | |
| 5 | 707-76-70120 | BUSHING | A85001 -- | |
| 6 | 21K-70-12180 | SEAL, DUST (KIT) | A85001 -- | |
| 7 | 707-27-11981 | HEAD, CYLINDER | A85001 -- | |
| 8 | 07179-13094 | RING, SNAP | A85001 -- | |
| 9 | 195-63-92190 | SEAL, DUST (KIT) | A85001 -- | |
| 10 | 707-52-90560 | BUSHING | A85001 -- | |
| 11 | 707-51-80030 | PACKING, ROD (KIT) | A85001 -- | |
| 12 | 07000-15105 | O-RING (KIT) | A85001 -- | |
| 13 | 707-35-91150 | RING, BACK-UP (KIT) | A85001 -- | |
| 14 | 707-51-80630 | RING, BUFFER (KIT) | A85001 -- | |
| 15 | 01010-81670 | BOLT\xd4 | A85001 -- | |
| 16 | 01643-51645 | WASHER | A85001 -- | |
| 17 | 707-36-11661 | PISTON | A85001 -- | |
| 18 | 707-44-11280 | RING, PISTON (KIT) | A85001 -- | |
| 19 | 707-39-11510 | RING, WEAR (KIT) | A85001 -- | |
| 20 | 707-44-11920 | RING | A85001 -- | |
| 21 | 707-35-90360 | RING, BACK-UP (KIT) | A85001 -- | |
| 22 | 07000-15070 | O-RING (KIT) | A85001 -- | |
| 23 | 01310-01216 | SCREW | A85001 -- | |
| 24 | 07020-00000 | FITTING, GREASE | A85001 -- | |
| 25 | 07020-00900 | FITTING, GREASE | A85001 -- | |
| 26 | 205-63-71171 | TUBE | A85001 -- | |
| 27 | 01435-01055 | BOLT | A85001 -- | |
| 28 | 01435-01040 | BOLT | A85001 -- | |
| 29 | 07000-13030 | O-RING (KIT) | A85001 -- | |
| 30 | 707-88-95370 | BRACKET | A85001 -- | |
| 31 | 707-88-95350 | BAND | A85001 -- | |
| 32 | 01010-81035 | BOLT | A85001 -- | |
| 33 | 01643-51032 | WASHER | A85001 -- | |
| 34 | 07282-02793 | CLAMP | A85001 -- | |
| 35 | 01010-81020 | BOLT | A85001 -- | |
| 36 | 01643-31032 | WASHER | A85001 -- |
