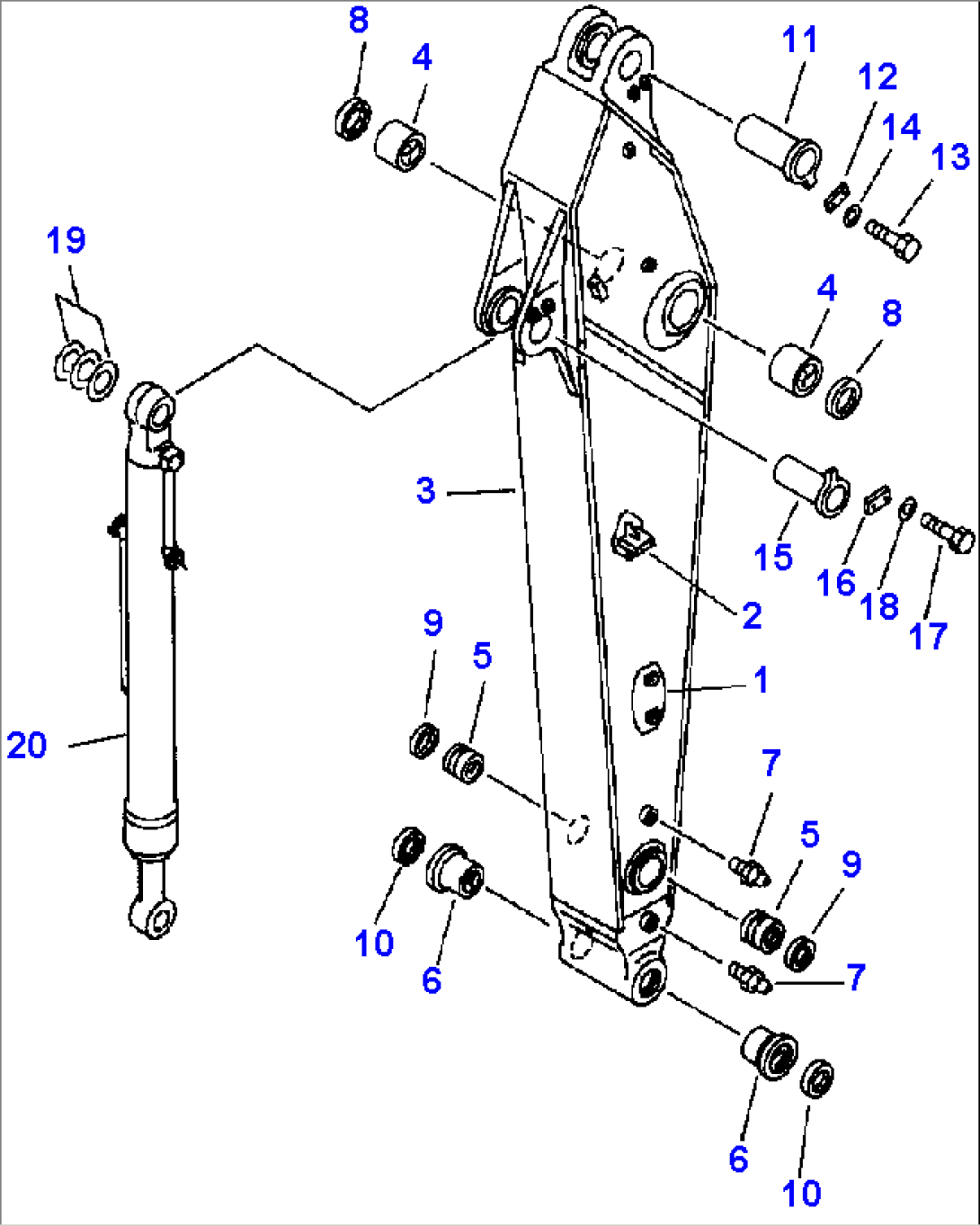

| Item | Part No. | Part Name | Qty | Serial No. |
| 208-970-6310 | ARM ASSEMBLY | A85001-- | ||
| 1 | 208-970-5380 | BRACKET | A85001-- | |
| 2 | 208-970-5420 | BRACKET | A85001-- | |
| 3 | (NSS) | ARM | A85001-- | |
| 4 | 208-70-61521 | BUSHING | A85001-- | |
| 5 | 208-70-13141 | BUSHING | A85001-- | |
| 6 | 208-70-32140 | BUSHING | A85001-- | |
| 7 | 07020-00000 | FITTING, GREASE | A85001-- | |
| 8 | 07145-00120 | SEAL | A85001-- | |
| 9 | 208-70-12231 | SEAL, DUST | A85001-- | |
| 10 | 205-70-62160 | SEAL | A85001-- | |
| 11 | 208-70-61220 | PIN | A85001-- | |
| 12 | 205-70-66580 | PLATE | A85001-- | |
| 13 | 01010-81235 | BOLT | A85001-- | |
| 14 | 01643-31232 | WASHER | A85001-- | |
| 15 | 208-70-61240 | PIN | A85001-- | |
| 16 | 205-70-66580 | PLATE | A85001-- | |
| 17 | 01010-81235 | BOLT | A85001-- | |
| 18 | 01643-31232 | WASHER | A85001-- | |
| 19 | 207-70-11340 | SPACER, 0.8 MM | A85001-- | |
| 20 | BUCKET CYLINDER (SEE FIG. T1220-01A0) | A85001-- |
