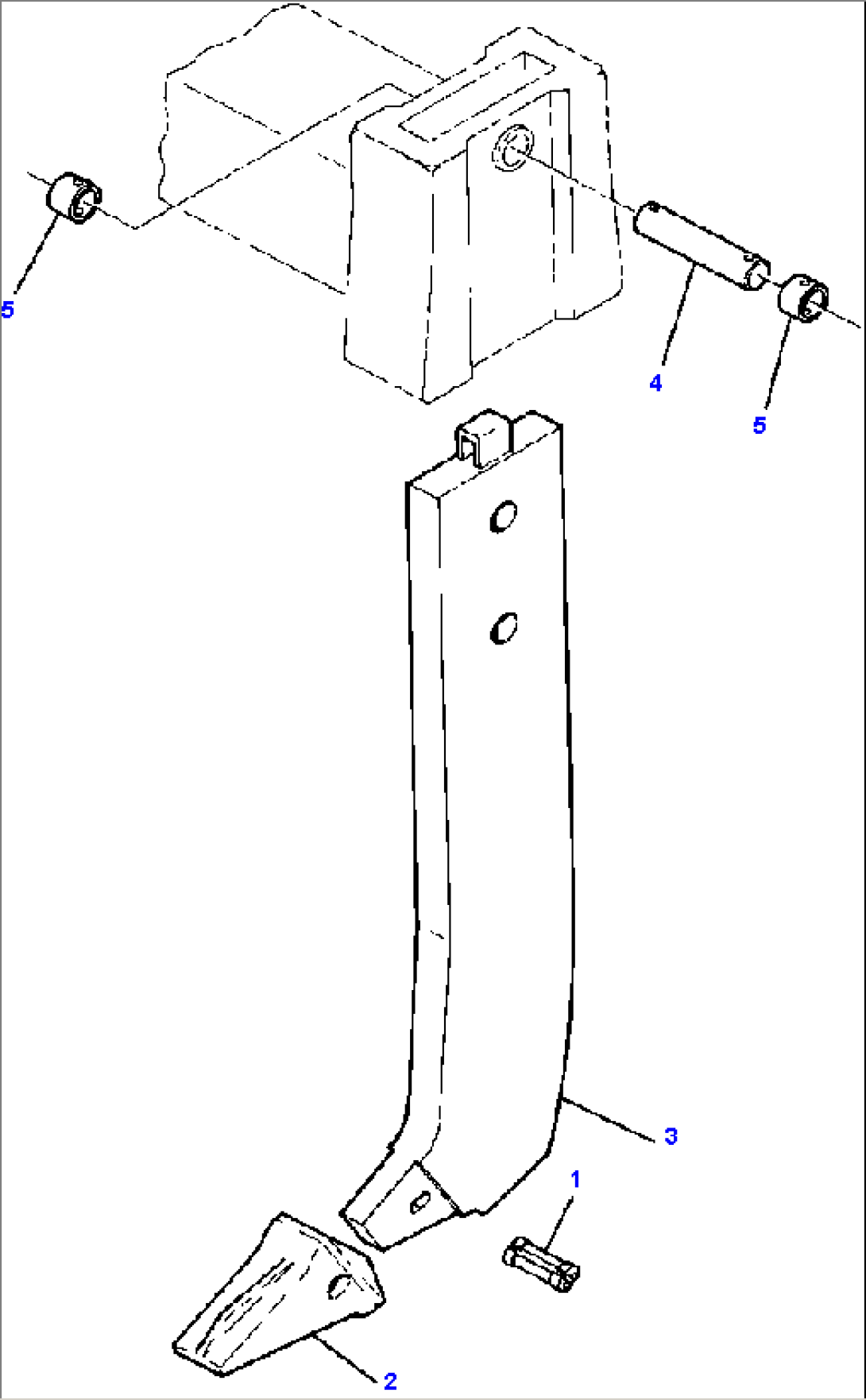

| Item | Part No. | Part Name | Qty | Serial No. |
| 1208 227 H91 | SHANK ASSEMBLY W/TIP & PIN, RIPPER | P90001-- | ||
| 734 870 C91 | SHANK ASSEMBLY | P90001- | ||
| 1 | 668 984 C1 | PIN, FLEX | P90001-- | |
| 2 | 734 869 C1 | POINT, SHANK | P90001-- | |
| 3 | 734 872 C1 | SHANK, RIPPER | P90001-- | |
| 4 | 710 369 C1 | PIN, SHANK MOUNTING | P90001-- | |
| 5 | 710 368 C1 | TUBE, LOCKING | P90001-- | |
| 25 510 R1 | BOLT | P90001-- | ||
| 9412 231 | NUT, LOCK | P90001-- | ||
| F1 PART NUMBER IS A NON-SERVICE PART AND IS FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | ||||
