| Item | Part No. | Part Name | Qty | Serial No. |

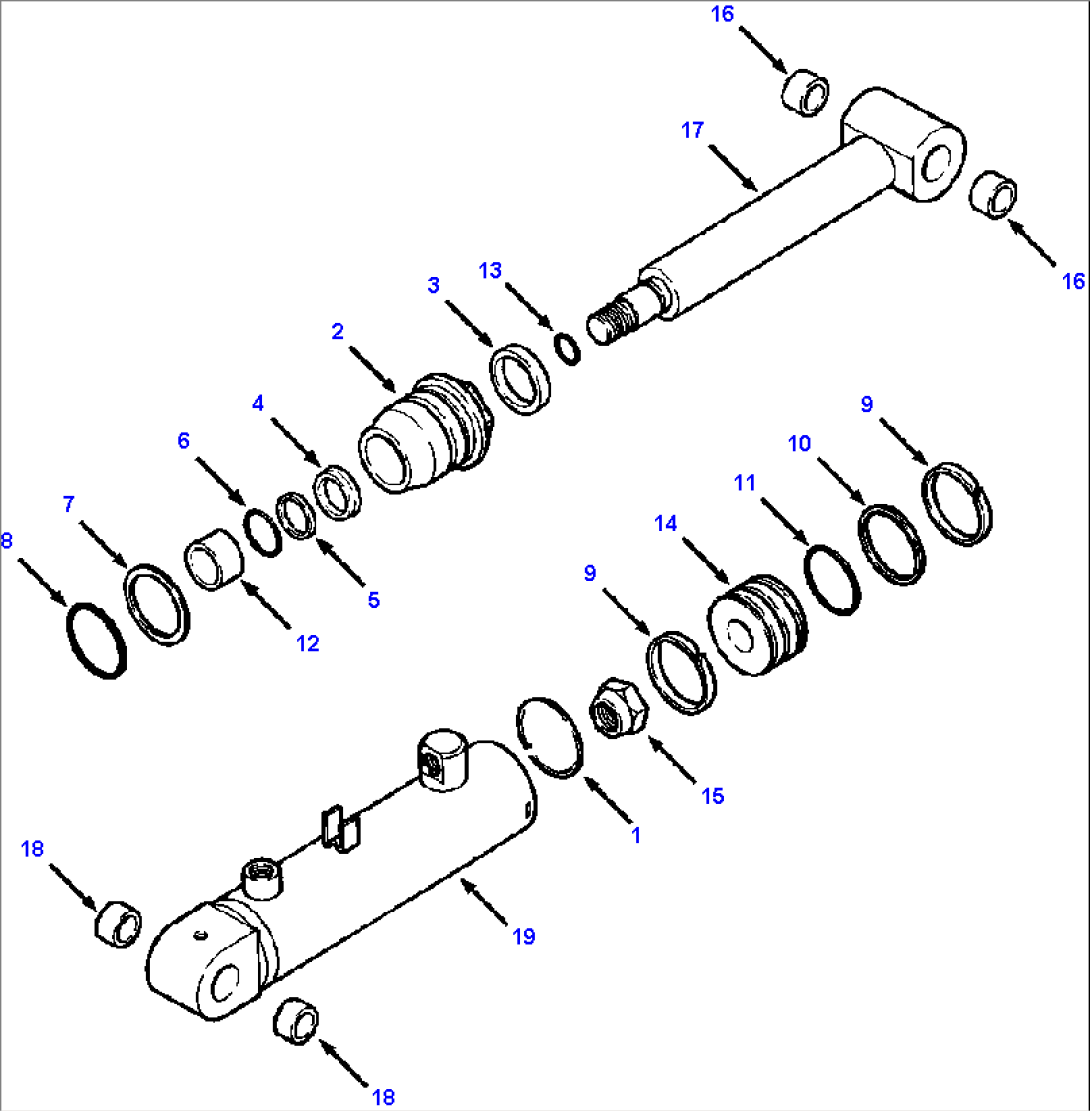

| 529 789 R92 | CYLINDER ASSEMBLY, RIPPER | P076093-- | ||
| 1 | 381 873 R1 | RING, RETAINER | P076093-- | |
| 2 | 1261 115 H1 | GLAND, CYLINDER | P076093-- | |
| 626 231 C5 | KIT, SEAL | P076093-- | ||
| 3 | (NSS) | WIPER, ROD | P076093-- | |
| 4 | (NSS) | SEAL, ROD | P076093-- | |
| 5 | (NSS) | RING, BUFFER | P076093-- | |
| 6 | (NSS) | RING, SEAL | P076093-- | |
| 7 | (NSS) | RING, BACKUP | P076093-- | |
| 8 | (NSS) | RING, SEAL | P076093-- | |
| 9 | (NSS) | RING, WEAR | P076093-- | |
| 10 | (NSS) | RING, SEAL | P076093-- | |
| 11 | (NSS) | RING, SEAL | P076093-- | |
| 12 | (NSS) | RING, WEAR | P076093-- | |
| 13 | (NSS) | RING, SEAL - ROD | P076093-- | |
| 14 | 387 371 R1 | PISTON, CYLINDER | P076093-- | |
| 15 | 25 126 R1 | NUT, LOCK 1-1/8NF | P076093-- | |
| 529 844 R1 | ROD ASSEMBLY, CYLINDER | P076093-- | ||
| 16 | 378 478 R1 | BUSHING, ROD | P076093-- | |
| 17 | (NSS) | ROD, CYLINDER | P076093-- | |
| 529 841 R2 | HOUSING ASSEMBLY, CYLINDER | P076093-- | ||
| 18 | 378 478 R1 | BUSHING, HOUSING | P076093-- | |
| 19 | (NSS) | HOUSING, CYLINDER | P076093-- |
