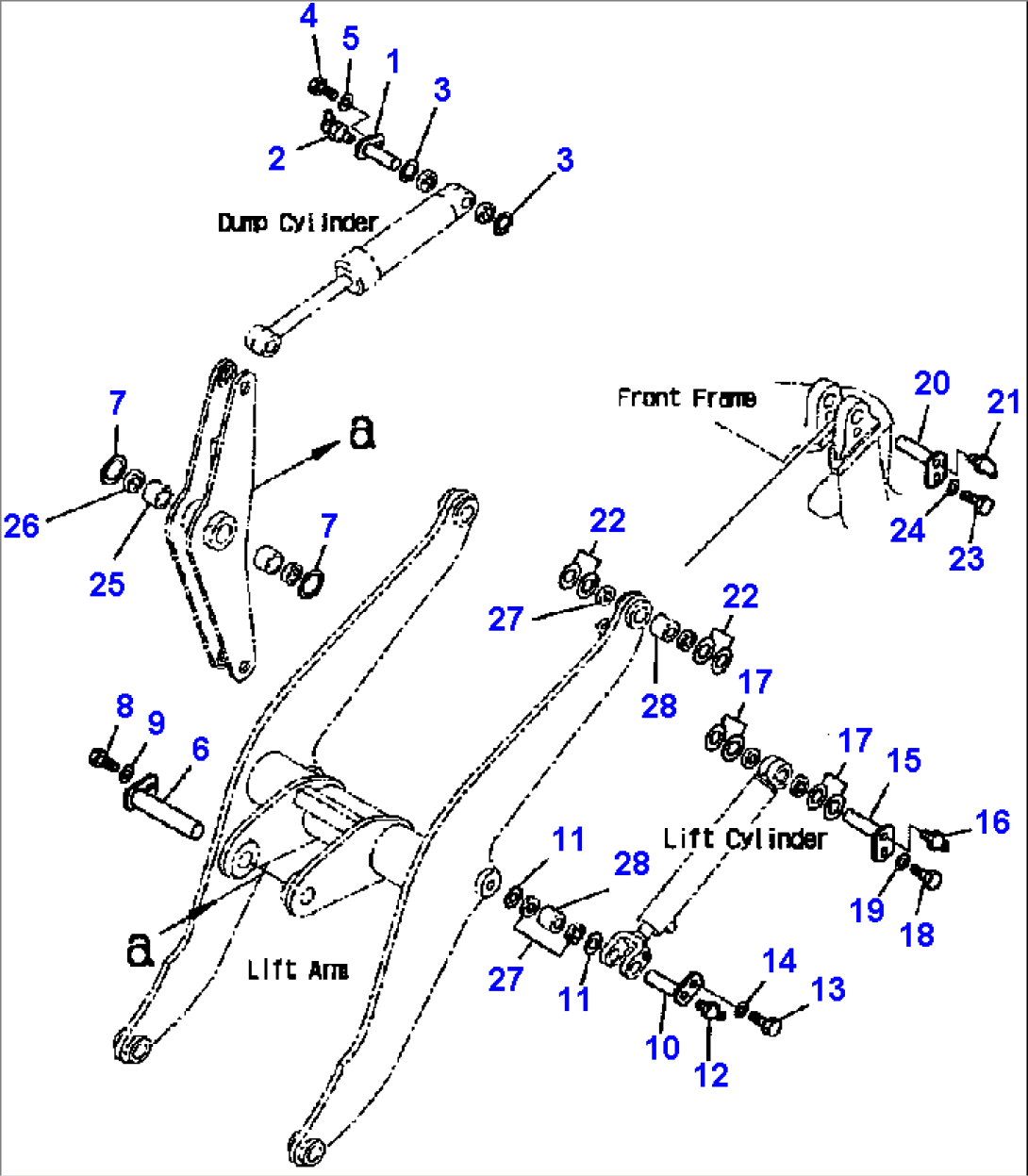

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-70-A1320 | PIN | A81001-UP- | |
| 2 | 07020-00900 | FITTING, GREASE | A81001-UP- | |
| 3 | 417-70-11310 | SHIM - 0.059 IN. (1.50 MM) | A81001-UP- | |
| 417-70-11320 | SHIM - 0.118 IN. (3.00 MM) | A81001-UP- | ||
| 4 | 01010-81220 | BOLT | A81001-UP- | |
| 5 | 175-54-34170 | WASHER | A81001-UP- | |
| 6 | 417-70-11960 | PIN | A81001-UP- | |
| 7 | 417-70-11340 | SHIM - 0.059 IN. (1.50 MM) | A81001-UP- | |
| 417-70-11370 | SHIM - 0.020 IN. (0.50 MM) | A81001-UP- | ||
| 8 | 01010-81625 | BOLT | A81001-UP- | |
| 9 | 421-70-11280 | WASHER | A81001-UP- | |
| 10 | 417-70-11970 | PIN | A81001-UP- | |
| 11 | 417-70-11330 | SHIM - 0.059 IN. (1.50 MM) | A81001-UP- | |
| 12 | 07020-00000 | FITTING, GREASE | A81001-UP- | |
| 13 | 01010-81220 | BOLT | A81001-UP- | |
| 14 | 175-54-34170 | WASHER | A81001-UP- | |
| 15 | 417-70-11980 | PIN | A81001-UP- | |
| 16 | 07020-00000 | FITTING, GREASE | A81001-UP- | |
| 17 | 417-70-11310 | SHIM - 0.059 IN. (1.50 MM) | A81001-UP- | |
| 417-70-11320 | SHIM - 0.118 IN. (3.00 MM) | A81001-UP- | ||
| 18 | 01010-81220 | BOLT | A81001-UP- | |
| 19 | 175-54-34170 | WASHER | A81001-UP- | |
| 20 | 417-70-11980 | PIN | A81001-UP- | |
| 21 | 07020-00675 | FITTING, GREASE | A81001-UP- | |
| 22 | 417-70-11310 | SHIM - 0.059 IN. (1.50 MM) | A81001-UP- | |
| 417-70-11320 | SHIM - 0.118 IN. (3.00 MM) | A81001-UP- | ||
| 23 | 01010-81220 | BOLT | A81001-UP- | |
| 24 | 175-54-34170 | WASHER | A81001-UP- | |
| 25 | BUSHING (SEE FIG. T4110-01A0) | A81001-UP- | ||
| 26 | SEAL, DUST (SEE FIG. T4110-01A0) | A81001-UP- | ||
| 27 | SEAL, DUST (SEE FIG. T4110-01A0) | A81001-UP- | ||
| 28 | BUSHING (SEE FIG. T4110-01A0) | A81001-UP- |
