| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-815-1220 | EDGE, SIDE | A81001-UP- | |
| 2 | 417-815-1210 | EDGE, CENTER | A81001-UP- | |
| 3 | 02090-11475 | BOLT | A81001-UP- | |
| 4 | 02290-11422 | NUT | A81001-UP- | |
| 5 | 01643-32260 | WASHER | A81001-UP- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180 3mc s/n a81001 up
- Work equipment
- Fig. t4122 01a0 bucket assembly bolt on cutting edge
Поиск по каталогу

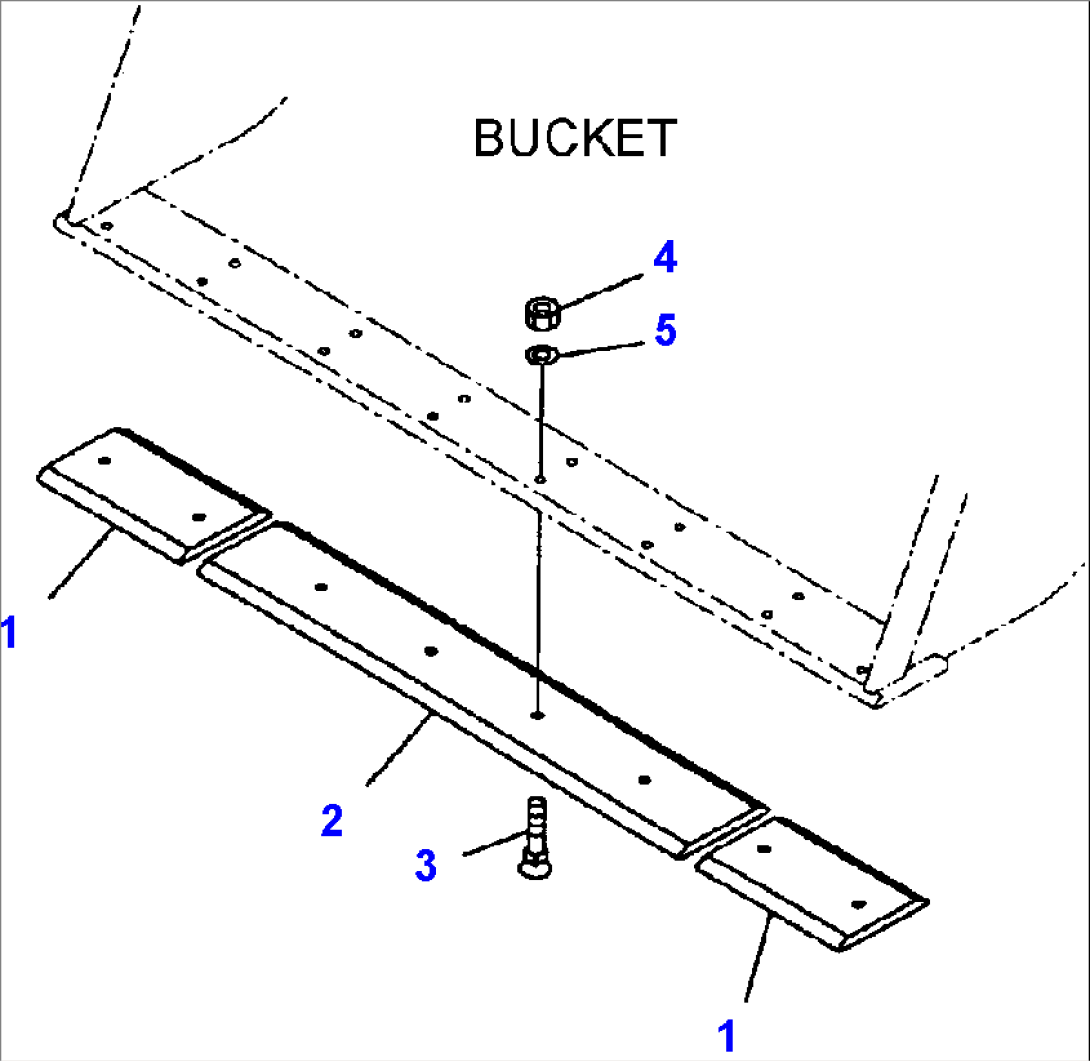

FIG. T4122-01A0 BUCKET ASSEMBLY - BOLT-ON CUTTING EDGE
