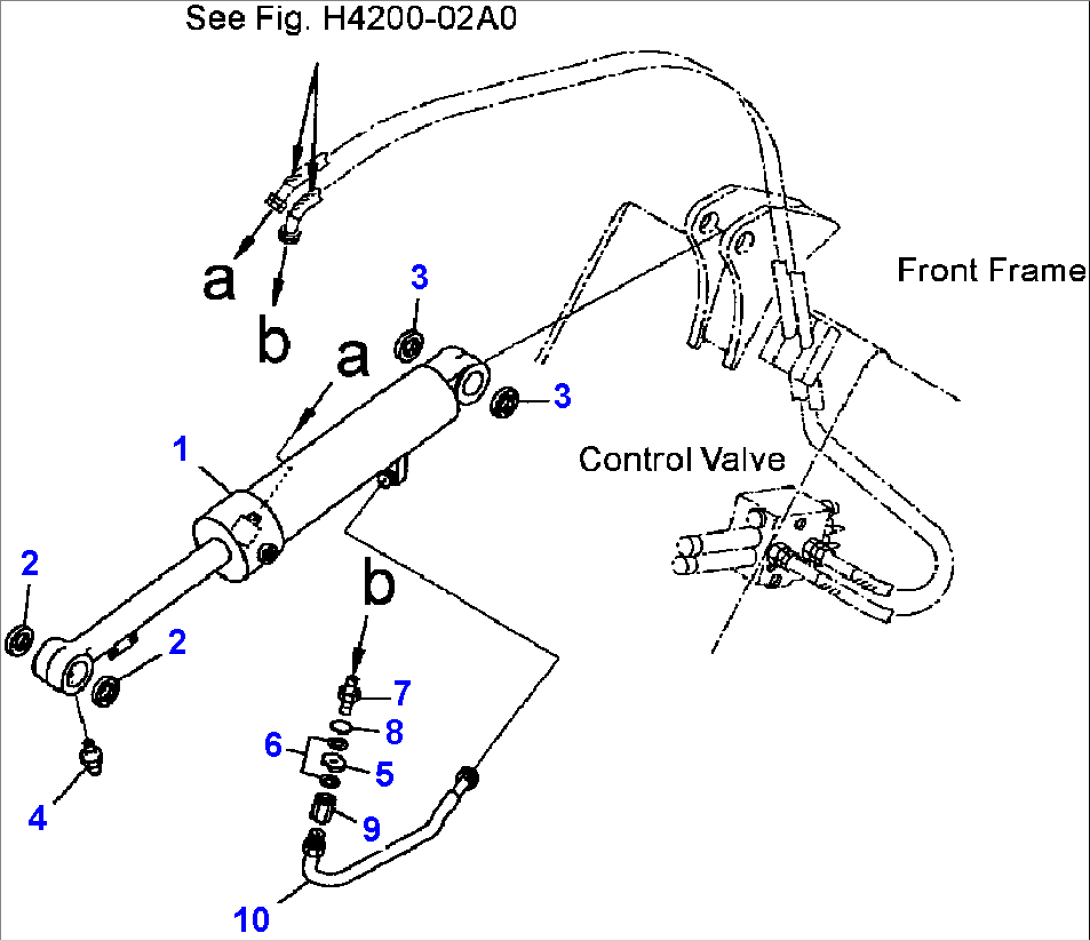

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER ASSEMBLY, DUMP(SEE FIG. T4150-01A2) | A81001-UP- | ||
| 2 | 416-09-11140 | SEAL, DUST | A81001-UP- | |
| 3 | 416-09-11120 | SEAL | A81001-UP- | |
| 4 | 07020-00000 | FITTING | A81001-UP- | |
| 5 | 01642-21016 | WASHER | A81001-UP- | |
| 6 | 417-62-13790 | VENT | A81001-UP- | |
| 7 | 417-62-13720 | NIPPLE | A81001-UP- | |
| 8 | 07002-13034 | O-RING | A81001-UP- | |
| 9 | 417-62-13580 | NIPPLE | A81001-UP- | |
| 10 | 417-62-23110 | TUBE | A81001-UP- |
