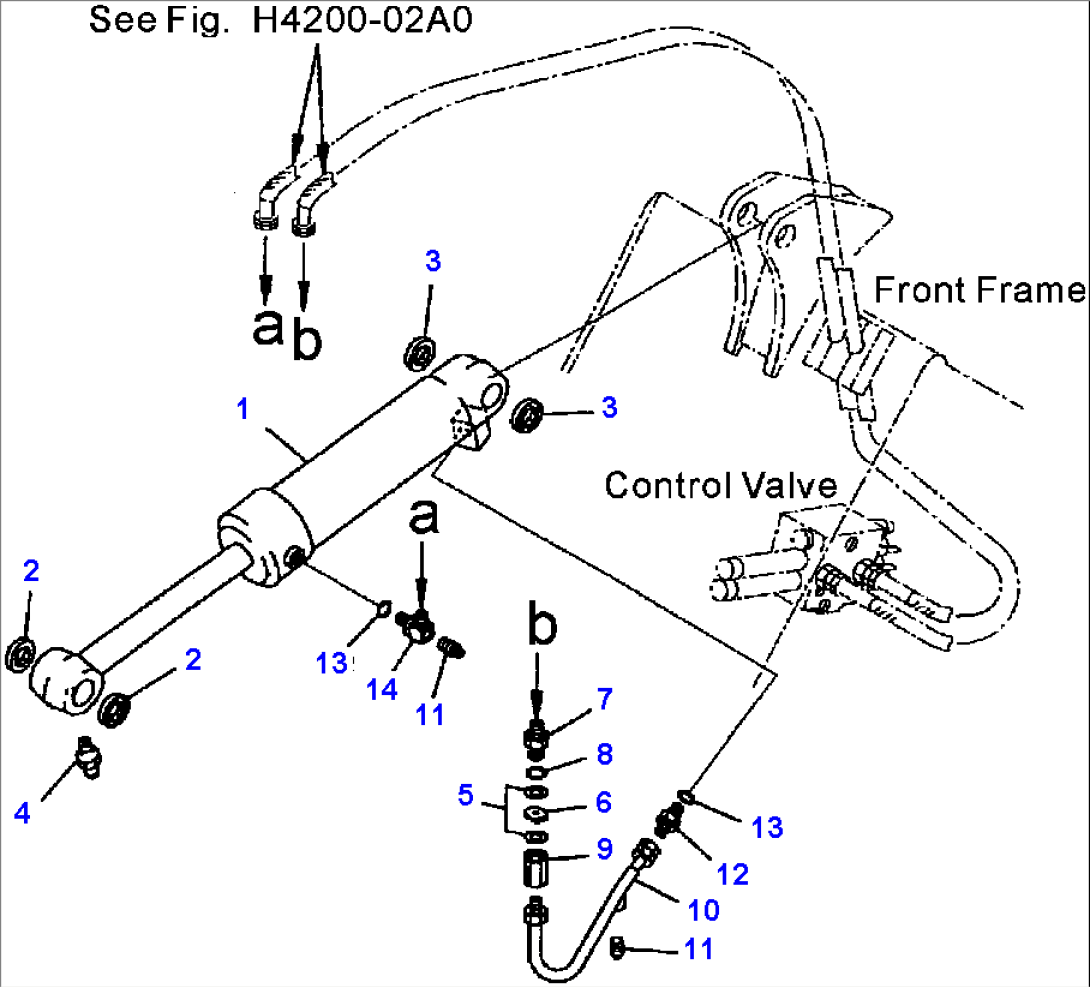

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 707-00-12300 | CYLINDER ASSEMBLY, DUMP | A81001-UP- | |
| 2 | 416-09-11140 | SEAL, DUST | A81001-UP- | |
| 3 | 416-09-11120 | SEAL | A81001-UP- | |
| 4 | 07020-00000 | FITTING, GREASE | A81001-UP- | |
| 5 | 01642-21016 | WASHER | A81001-UP- | |
| 6 | 417-62-13790 | VENT | A81001-UP- | |
| 7 | 417-62-13720 | NIPPLE | A81001-UP- | |
| 8 | 07002-13034 | O-RING | A81001-UP- | |
| 9 | 417-62-13580 | NIPPLE | A81001-UP- | |
| 10 | 417-62-13362 | TUBE | A81001-UP- | |
| 11 | 07042-20108 | PLUG | A81001-UP- | |
| 12 | 07230-20628 | UNION | A81001-UP- | |
| 13 | 07002-12434 | O-RING | A81001-UP- | |
| 14 | 07235-50628 | ELBOW | A81001-UP- |
