| Item | Part No. | Part Name | Qty | Serial No. |

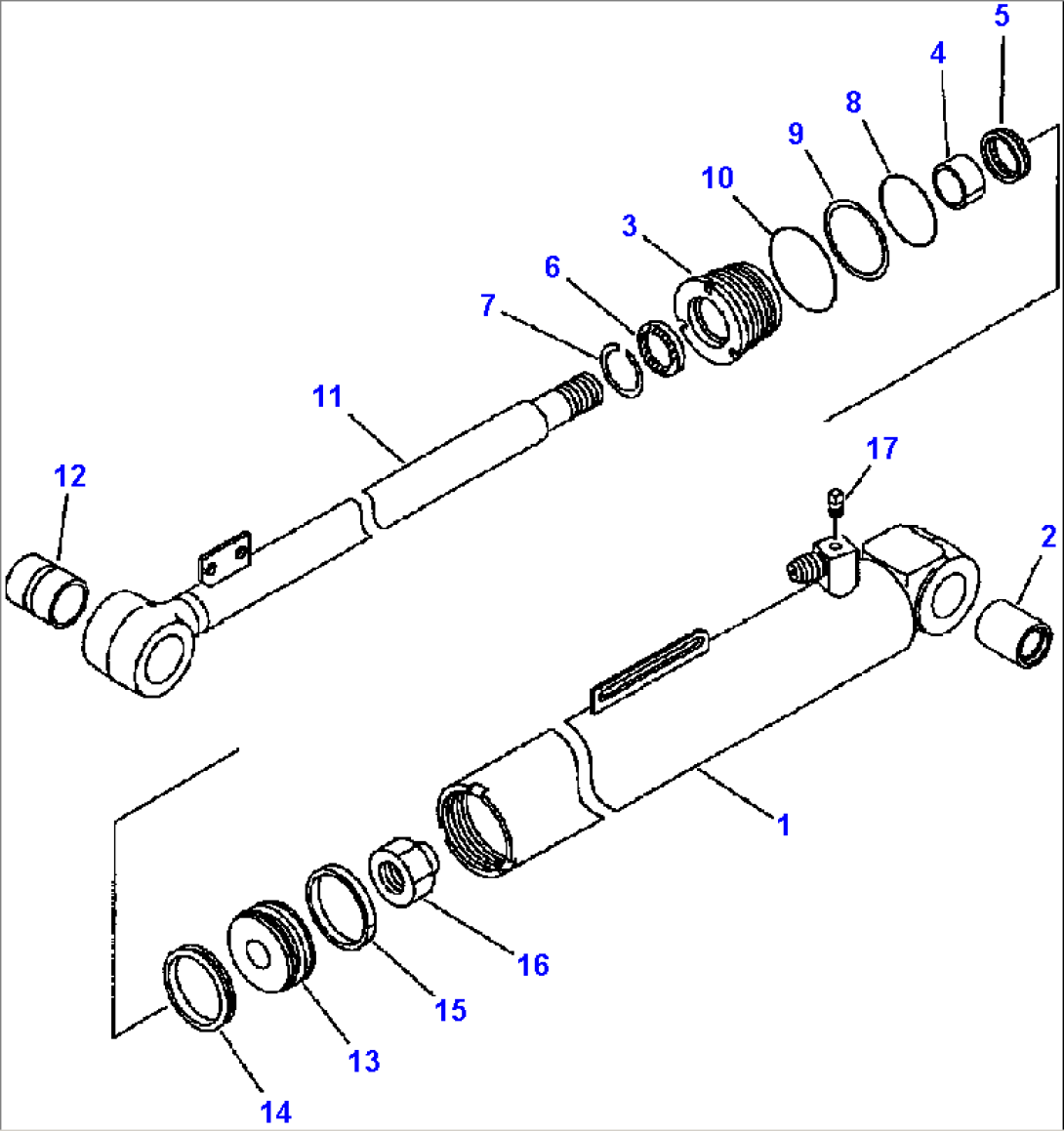

| 707-00-02310 | CYLINDER ASSEMBLY, DUMP | A81001-UP- | ||
| 1 | 707-11-13220 | CYLINDER | A81001-UP- | |
| 2 | 707-76-60160 | BUSHING | A81001-UP- | |
| 3 | 707-29-13840 | HEAD, CYLINDER | A81001-UP- | |
| 4 | 707-52-10700 | BUSHING | A81001-UP- | |
| 5 | 707-51-70030 | PACKING, ROD | A81001-UP- | |
| 6 | 144-63-95170 | SEAL, DUST | A81001-UP- | |
| 7 | 07179-12084 | RING, SNAP | A81001-UP- | |
| 8 | 07000-12125 | O-RING | A81001-UP- | |
| 9 | 07146-02126 | RING, BACK-UP | A81001-UP- | |
| 10 | 07000-02130 | O-RING | A81001-UP- | |
| 11 | 707-58-70660 | ROD, PISTON | A81001-UP- | |
| 12 | 707-76-50090 | BUSHING | A81001-UP- | |
| 13 | 707-36-13240 | PISTON | A81001-UP- | |
| 14 | 707-44-13180 | RING, PISTON | A81001-UP- | |
| 15 | 07156-01315 | RING, WEAR | A81001-UP- | |
| 16 | 07165-15252 | NUT, NYLON | A81001-UP- | |
| 17 | 07042-20108 | PLUG | A81001-UP- | |
| 707-99-43520 | SERVICE KIT | A81001-UP- | ||
| F1 - INCLUDED IN SERVICE KIT. | ||||
