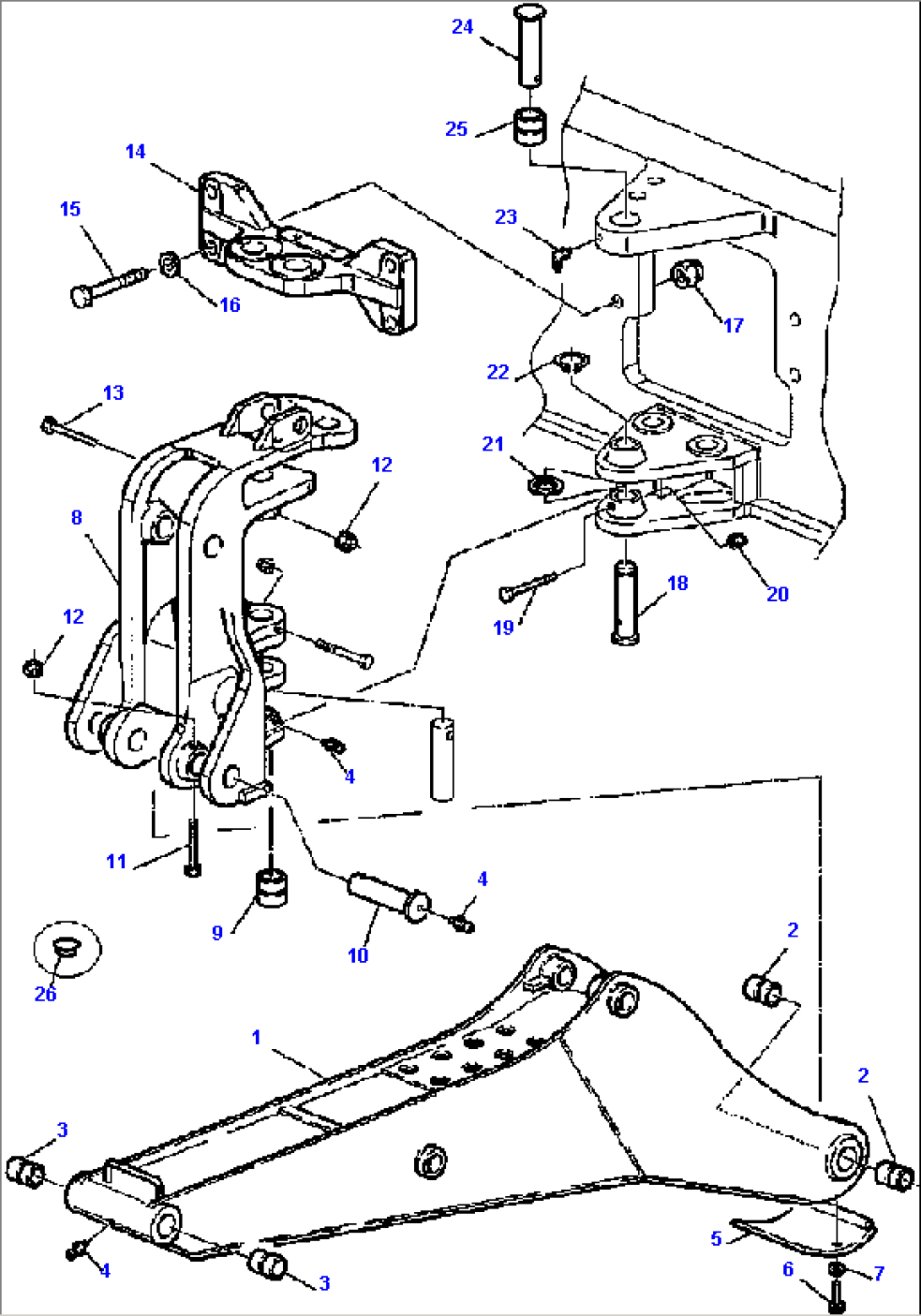

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312708052 | BOOM | A90001 -- | |
| 2 | 500210034 | BUSHING | A90001 -- | |
| 3 | 500212005 | BUSHING | A90001 -- | |
| 4 | 860010007 | FITTING, GREASE | A90001 -- | |
| 5 | 312708053 | PLATE, BOOM PROTECTION | A90001 -- | |
| 6 | 801015110 | BOLT | A90001 -- | |
| 7 | 802170002 | WASHER | A90001 -- | |
| 8 | 312704612 | BRACKET ASSEMBLY, SWING | A90001 -- | |
| 9 | 312704604 | BUSHING | A90001 -- | |
| 10 | 312704608 | PIN, BOOM | A90001 -- | |
| 11 | 801015584 | BOLT | A90001 -- | |
| 12 | 801880212 | NUT, SELF-LOCKING | A90001 -- | |
| 13 | 801015586 | BOLT | A90001 -- | |
| 14 | 312703624 | BRACKET, SWING BRACKET SUPPORT | A90001 -- | |
| 15 | 801015291 | BOLT | A90001 -- | |
| 16 | 802060024 | WASHER | A90001 -- | |
| 17 | 801920112 | NUT | A90001 -- | |
| 18 | 312704602 | PIN, LOWER SWING BRACKET | A90001 -- | |
| 19 | 801015586 | BOLT | A90001 -- | |
| 20 | 801880212 | NUT, SELF-LOCKING | A90001 -- | |
| 21 | 390606064 | SPACER, SWING BRACKET | A90001 -- | |
| 22 | 802770024 | RING, SNAP | A90001 -- | |
| 23 | 860030004 | FITTING, GREASE | A90001 -- | |
| 24 | 390597065 | PIN, UPPER SWING BRACKET | A90001 -- | |
| 25 | 312704603 | BUSHING | A90001 -- | |
| 26 | 500610633 | PLUG | A90001 -- |
