| Item | Part No. | Part Name | Qty | Serial No. |

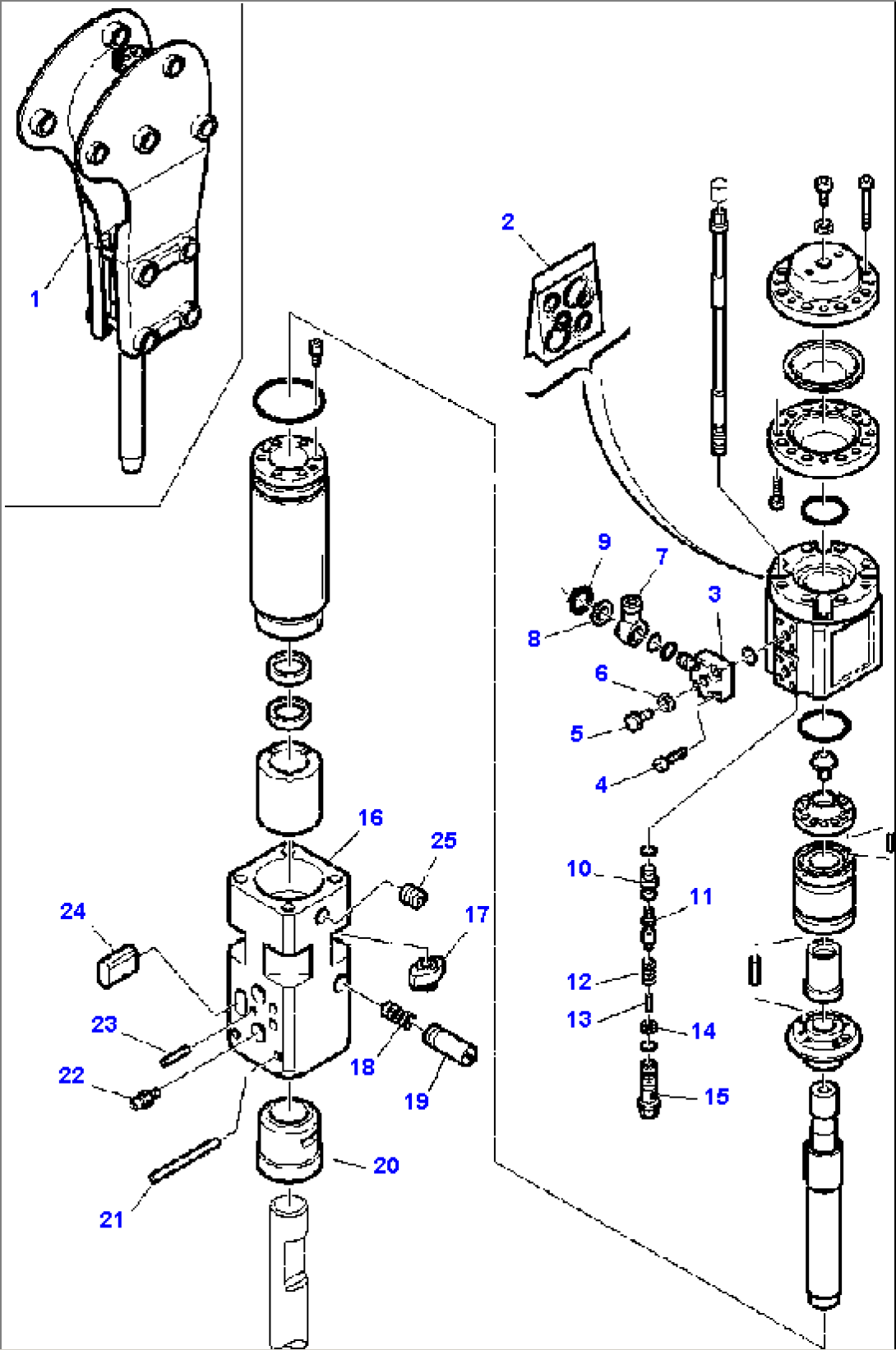

| 1 | M60 HAMMER (SEE FIG. T7820-01A0) | A90001 -- | ||
| 2 | 827010279 | GASKET KIT | A90001 -- | |
| 3 | 827010388 | LINKAGE | A90001 -- | |
| 4 | 827010393 | SCREW | A90001 -- | |
| 5 | 827010390 | PLUG | A90001 -- | |
| 6 | 827010389 | GASKET | A90001 -- | |
| 7 | 827010391 | UNION | A90001 -- | |
| 8 | 827010366 | WASHER | A90001 -- | |
| 9 | 827010392 | SNAP RING | A90001 -- | |
| 10 | 827010395 | CYLINDER | A90001 -- | |
| 11 | 827010397 | PISTON | A90001 -- | |
| 12 | 827010398 | SPRING | A90001 -- | |
| 13 | 827010400 | SPACER CYLINDER | A90001 -- | |
| 14 | 827010261 | ADJUSTER SHIM | A90001 -- | |
| 15 | 827010401 | PLUG | A90001 -- | |
| 16 | 827010361 | BLOCK | A90001 -- | |
| 17 | 827010275 | NUT | A90001 -- | |
| 18 | 827010258 | SPRING | A90001 -- | |
| 19 | 827010272 | PIN | A90001 -- | |
| 20 | 827010406 | LOWER BUSHING | A90001 -- | |
| 21 | 827010407 | PIN | A90001 -- | |
| 22 | 827010254 | FITTING | A90001 -- | |
| 23 | 827010273 | SPLIT PIN | A90001 -- | |
| 24 | 827010271 | RETAINER | A90001 -- | |
| 25 | 827010270 | PLUG | A90001 -- |
