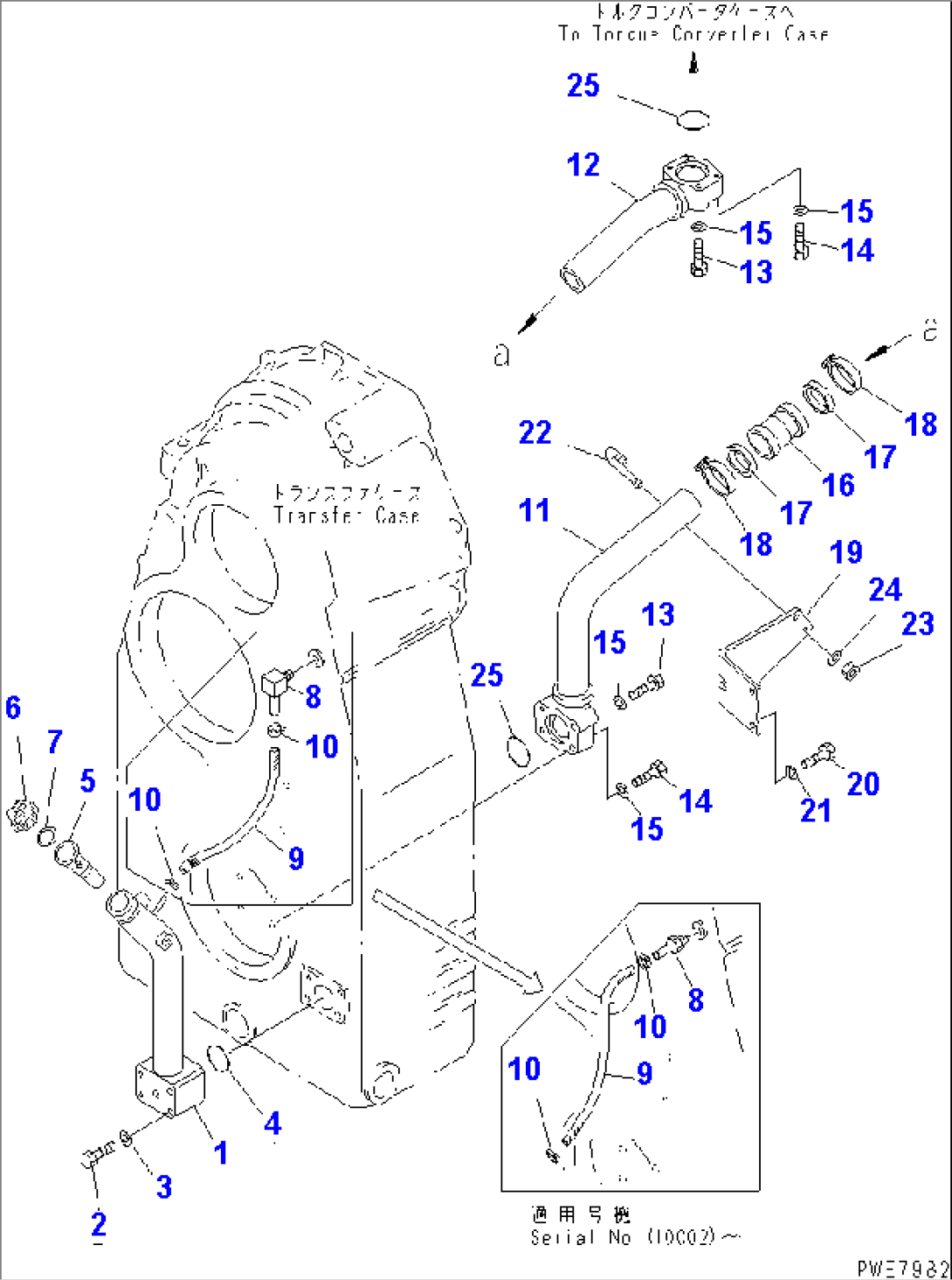

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (428-15-21001) | TRANSMISSION ASS'Y | 51001- | ||
| (428-15-21000) | TRANSMISSION ASS'Y | 50001-51000 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 428-15-18111 | TUBE | 50001- | |
| 2 | 01011-81210 | BOLT | 50001- | |
| 3 | 01643-31232 | WASHER | 50001- | |
| 4 | 07000-73048 | O-RING (K5) | 50001- | |
| 5 | 07056-10045 | STRAINER | 50001- | |
| 6 | 07051-00000 | CAP | 50001- | |
| 7 | 07051-00003 | GASKET | 50001- | |
| 8 | 428-15-18120 | NIPPLE | (10002)- | |
| 427-15-11610 | ELBOW | 50001-(10001) | ||
| 9 | 07260-20936 | HOSE | (10002)- | |
| 07260-20932 | HOSE | 50001-(10001) | ||
| 10 | 07281-00197 | CLAMP | 50001- | |
| 11 | 428-15-13770 | TUBE | 50001- | |
| 12 | 428-15-13760 | TUBE | 50001- | |
| 13 | 01010-81275 | BOLT | 50001- | |
| 14 | 01010-81260 | BOLT | 50001- | |
| 15 | 01643-31232 | WASHER | 50001- | |
| 16 | 07332-02000 | COUPLING | 50001- | |
| 17 | 07332-52000 | GASKET | 50001- | |
| 18 | 07332-62000 | CLAMP | 50001- | |
| 19 | 428-15-13750 | BRACKET | 50001- | |
| 20 | 01010-81240 | BOLT | 50001- | |
| 21 | 01643-31232 | WASHER | 50001- | |
| 22 | 07283-26155 | CLIP | 50001- | |
| 23 | 01599-01011 | NUT | 50001- | |
| 24 | 01643-31032 | WASHER | 50001- | |
| 25 | 07000-02070 | O-RING (K5) | 50001- |
