| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-27-00037 | FINAL DRIVE ASS'Y,L.H. | 10205- | ||
| \0\17M-27-00034 | FINAL DRIVE ASS'Y,L.H. | 10187-10204 | ||
| \0\17M-27-00033 | FINAL DRIVE ASS'Y,L.H. | 10106-10186 | ||
| \0\17M-27-00030 | FINAL DRIVE ASS'Y,L.H. | 10001-10105 | ||
| 17M-27-00160 | FINAL DRIVE ASS'Y,L.H. | 10001-10105 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A1, F2380-02A1 AND F2380-03A1. | ||||
| 17M-27-00047 | FINAL DRIVE ASS'Y,R.H. | 10351- | ||
| \0\17M-27-00045 | FINAL DRIVE ASS'Y,R.H. | 10205-10350 | ||
| \0\17M-27-00044 | FINAL DRIVE ASS'Y,R.H. | 10187-10204 | ||
| \0\17M-27-00043 | FINAL DRIVE ASS'Y,R.H. | 10106-10186 | ||
| 17M-27-00040 | FINAL DRIVE ASS'Y,R.H. | 10001-10105 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A1, F2380-03A1, AND F2380-04A1. | ||||

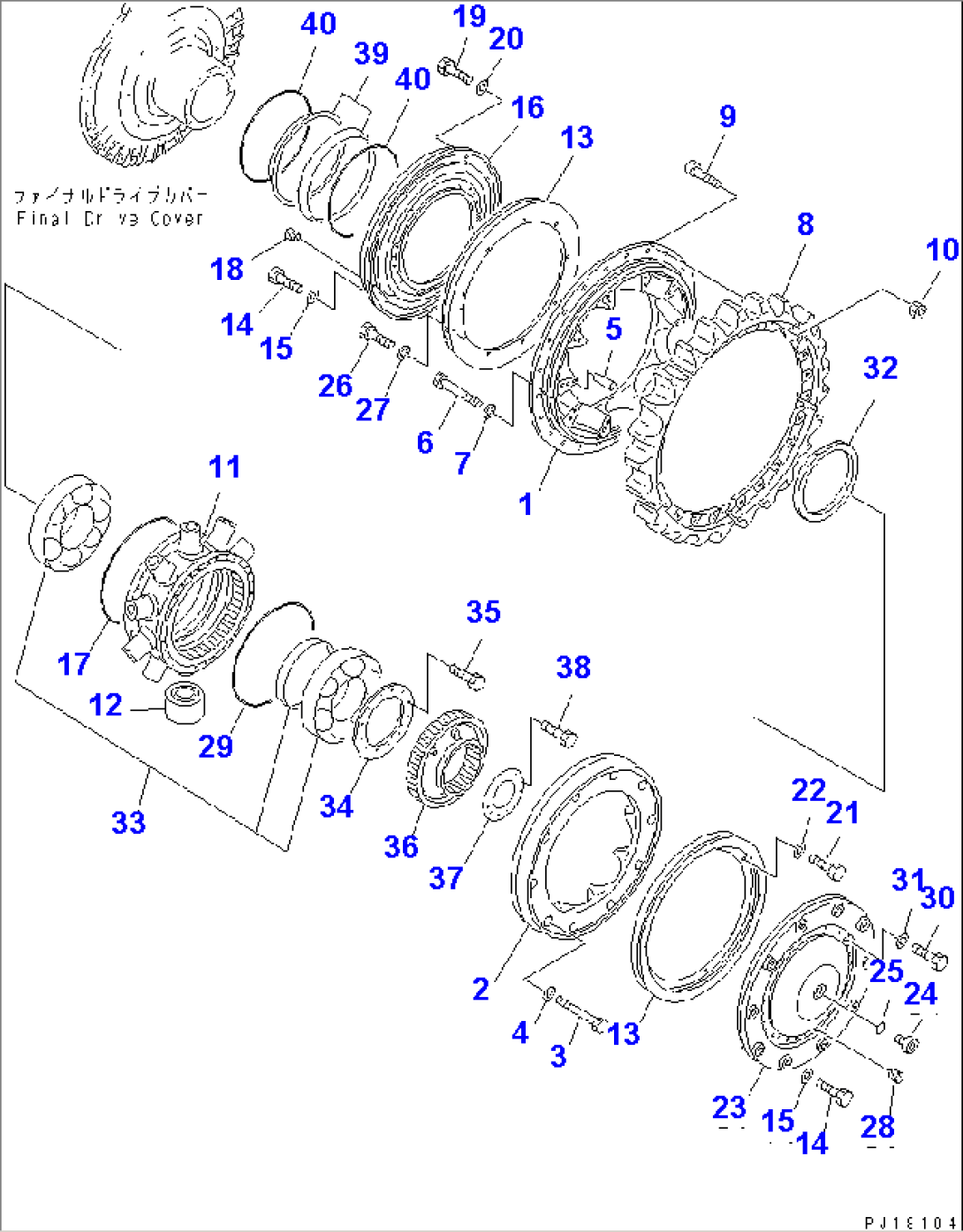

| 17M-27-21501 | DRUM ASS'Y | 10001- | ||
| 1 | \6\ | DRUM | 10001- | |
| 2 | \6\ | DRUM | 10001- | |
| 3 | 17M-27-12210 | BOLT | 10001- | |
| 4 | 01643-32060 | WASHER | 10001- | |
| 5 | 04020-01024 | PIN,DOWEL | 10001- | |
| 6 | 17M-27-12210 | BOLT | 10001- | |
| 7 | 01643-32060 | WASHER | 10001- | |
| 8 | 17M-27-21631 | TOOTH | 10001- | |
| 9 | 195-27-12632 | BOLT | 10001- | |
| 10 | 01803-02430 | NUT | 10001- | |
| 11 | 17M-27-21530 | DRUM | 10001- | |
| 12 | 17M-27-21562 | BUSHING | 10206- | |
| 12 | \0\17M-27-21561 | BUSHING | 10187-10205 | |
| 12 | \0\17M-27-21560 | BUSHING | 10001-10186 | |
| 13 | 17M-27-21570 | SEAL | 10001- | |
| 14 | 01010-81230 | BOLT | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- | |
| 16 | 17M-27-21540 | COVER | 10001- | |
| 17 | 07000-45440 | O-RING | 10001- | |
| 18 | 07049-01215 | PLUG | 10001- | |
| 19 | 01010-81645 | BOLT | 10001- | |
| 20 | 01643-31645 | WASHER | 10001- | |
| 21 | 01010-81025 | BOLT | 10001- | |
| 22 | 01643-31032 | WASHER | 10001- | |
| 23 | 17M-27-21550 | COVER | 10001- | |
| 24 | 07044-13620 | PLUG | 10001- | |
| 25 | 07002-43634 | O-RING | 10001- | |
| 26 | 01010-81025 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 07049-01620 | PLUG | 10001- | |
| 29 | 07000-45440 | O-RING | 10001- | |
| 30 | 01010-81645 | BOLT | 10001- | |
| 31 | 01643-31645 | WASHER | 10001- | |
| 32 | 17M-27-21381 | COLLAR | 10001- | |
| 33 | 17M-09-21130 | BEARING | 10001- | |
| 34 | 17M-27-21390 | HOLDER | 10001- | |
| 35 | 01010-81645 | BOLT | 10001- | |
| 36 | 17M-27-21582 | HUB | 10106- | |
| 36 | 17M-27-21580 | HUB | 10001-10105 | |
| 37 | 17M-27-21410 | PLATE | 10001- | |
| 38 | 01010-81230 | BOLT | 10001- | |
| 17M-27-00121 | FLOATING SEAL ASS'Y | 10106- | ||
| 17M-27-00120 | FLOATING SEAL ASS'Y | 10001-10105 | ||
| 39 | \6\ | RING,SEAL | 10106- | |
| 39 | \6\ | RING,SEAL | 10001-10105 | |
| 40 | \6\ | O-RING | 10001- |
