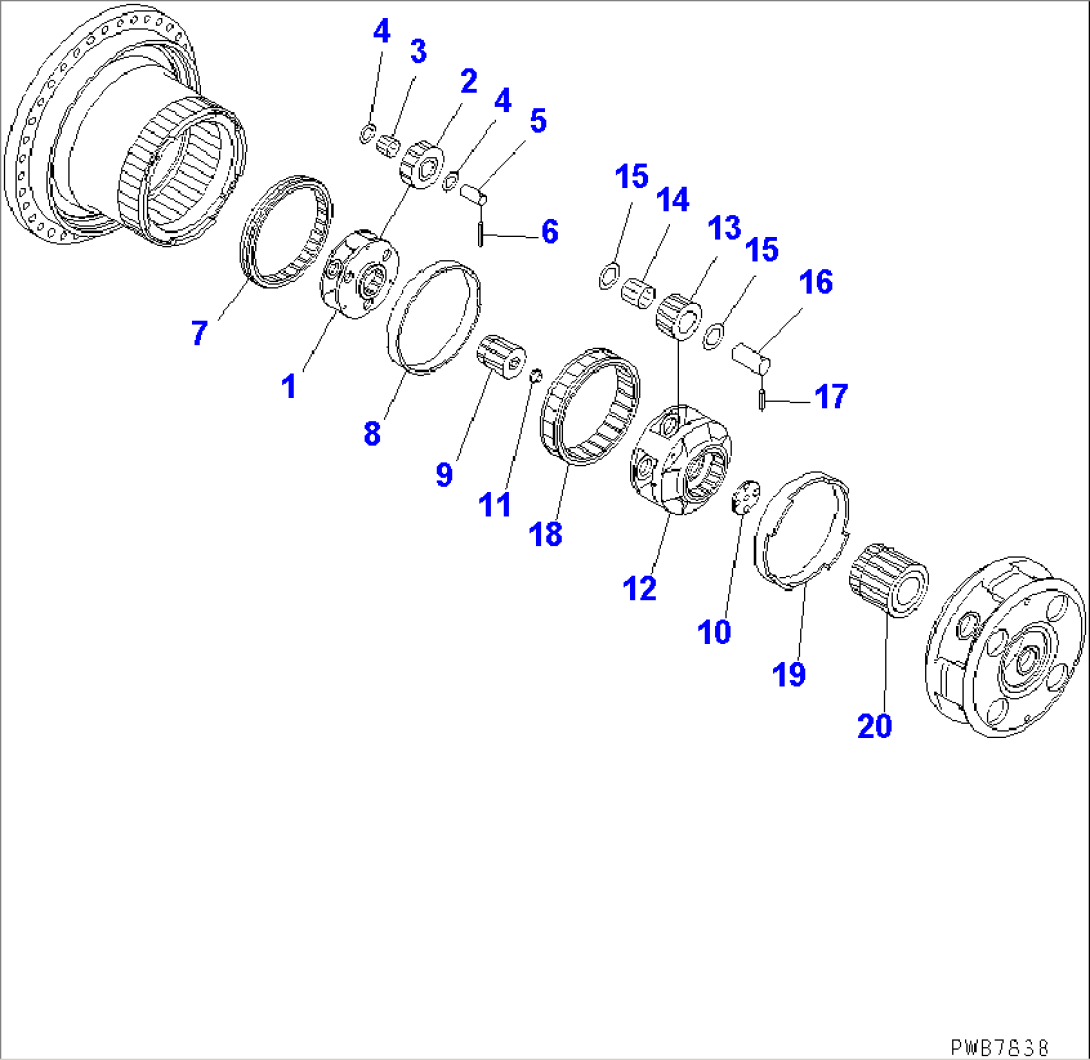

| Item | Part No. | Part Name | Qty | Serial No. |
| (21N-27-00110) | FINAL DRIVE ASS'Y | 10001- | ||
| (21N-27-00120) | FINAL DRIVE ASS'Y | 10001- | ||
| 1 | 209-27-71190 | CARRIER | 10001- | |
| 2 | 21N-27-31250 | GEAR | 10001- | |
| 3 | 20G-26-11240 | BEARING | 10001- | |
| 4 | 20Y-27-21240 | WASHER | 10001- | |
| 5 | 209-27-71310 | PIN | 10001- | |
| 6 | 20Y-27-21280 | PIN | 10001- | |
| 7 | 21N-27-31260 | GEAR, 68 TEETH | 10001- | |
| 8 | 209-27-71410 | SPACER | 10001- | |
| 9 | 209-27-71141 | GEAR | 10001- | |
| 10 | 209-27-71350 | PLATE | 10001- | |
| 11 | 208-27-61350 | BUTTON | 10233- | |
| 11 | 207-27-61280 | BUTTON | 10001-10232 | |
| 12 | 21N-27-31143 | CARRIER | 10197- | |
| 12 | 21N-27-31142 | CARRIER | 10001-10196 | |
| 13 | 209-27-71261 | GEAR | 10001- | |
| 14 | 207-27-61230 | BEARING | 10001- | |
| 15 | 20Y-27-21250 | WASHER | 10001- | |
| 16 | 209-27-71480 | PIN | 10001- | |
| 17 | 20Y-27-21290 | PIN | 10001- | |
| 18 | 209-27-71390 | GEAR | 10001- | |
| 19 | 209-27-71330 | SPACER | 10001- | |
| 20 | 21N-27-31110 | GEAR, 13 TEETH | 10001- |
