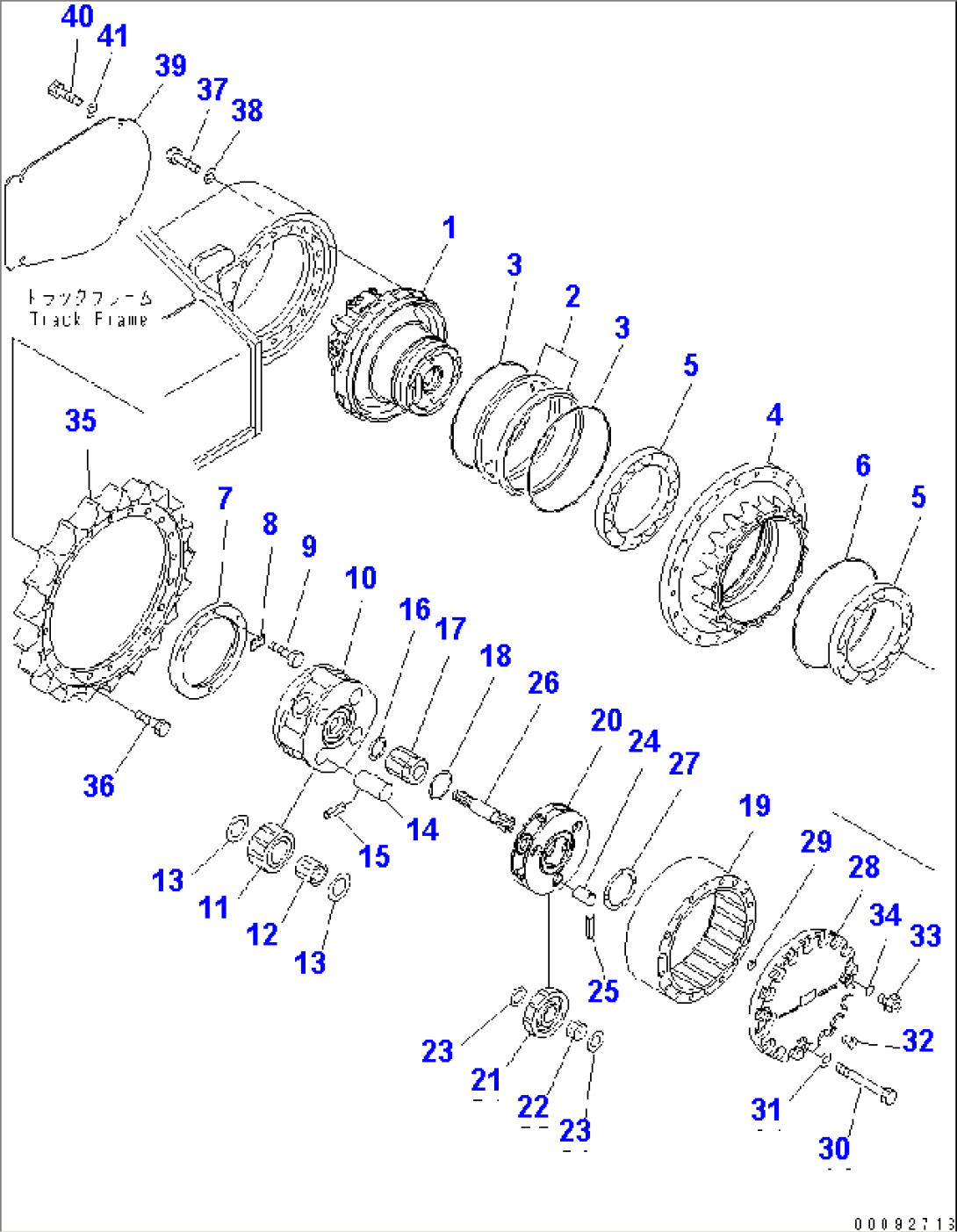

| Item | Part No. | Part Name | Qty | Serial No. |
| 206-27-00423 | FINAL DRIVE ASS'Y | 75228- | ||
| \0\206-27-00422 | FINAL DRIVE ASS'Y | 70001-75227 | ||
| 1 | (708-8F-00192) | MOTOR ASS'Y | 70001- | |
| 150-27-00410 | FLOATING SEAL ASS'Y | 70001- | ||
| 2 | \6\ | RING | 70001- | |
| 3 | \6\ | O-RING | 70001- | |
| 4 | 22U-27-21182 | HUB | 70001- | |
| 5 | 20Y-27-22230 | BEARING | 70001- | |
| 6 | 22U-27-21220 | O-RING | 70001- | |
| 7 | 20Y-27-22261 | LOCK | 70001- | |
| 8 | 20Y-27-22270 | LOCK | 70001- | |
| 9 | 01010-81020 | BOLT | 70001- | |
| 10 | 22U-27-21171 | CARRIER | 75228- | |
| 10 | \0\22U-27-21170 | CARRIER | 70001-75227 | |
| 11 | 22U-27-21140 | GEAR | 70001- | |
| 12 | 20Y-27-22220 | BEARING | 70001- | |
| 13 | 20Y-27-21250 | WASHER | 70001- | |
| 14 | 22U-27-21230 | PIN | 70001- | |
| 15 | 20Y-27-21290 | PIN | 70001- | |
| 16 | 20Y-27-13310 | WASHER | 70001- | |
| 17 | 22U-27-21130 | GEAR | 70001- | |
| 18 | 22U-27-21210 | THRUST WASHER | 70001- | |
| 19 | 22U-27-21153 | GEAR | 70001- | |
| 20 | 22U-27-21161 | CARRIER | 70001- | |
| 21 | 22U-27-21120 | GEAR | 70001- | |
| 22 | 20Y-27-22210 | BEARING | 70001- | |
| 23 | 22U-27-21240 | THRUST WASHER | 70001- | |
| 24 | 20Y-27-21220 | PIN | 70001- | |
| 25 | 20Y-27-21280 | PIN | 70001- | |
| 26 | 22U-27-21110 | SHAFT | 70001- | |
| 27 | 20Y-27-21310 | WASHER | 70001- | |
| 28 | 22U-27-21192 | COVER | 70001- | |
| 29 | 20Y-27-22250 | BUTTON | 70001- | |
| 30 | 20Y-27-13281 | BOLT | 70001- | |
| 31 | 01643-31645 | WASHER | 70001- | |
| 32 | 07049-01012 | PLUG | 70001- | |
| 33 | 07044-12412 | PLUG | 70001- | |
| 34 | 07002-02434 | O-RING | 70001- | |
| 35 | 20Y-27-11582 | SPROCKET | 70001- | |
| 36 | 20Y-27-11561 | BOLT | 70001- | |
| 37 | 01010-61660 | BOLT | 70001- | |
| 38 | 01643-31645 | WASHER | 70001- | |
| 39 | 20Y-30-21191 | COVER | 70001- | |
| 40 | 01010-81230 | BOLT | 70001- | |
| 41 | 01643-31232 | WASHER | 70001- |
