| Item | Part No. | Part Name | Qty | Serial No. |
| (209-27-00200) | FINAL DRIVE ASS'Y,L.H. | 20001- | ||
| (209-27-00210) | FINAL DRIVE ASS'Y,R.H. | 20001- | ||

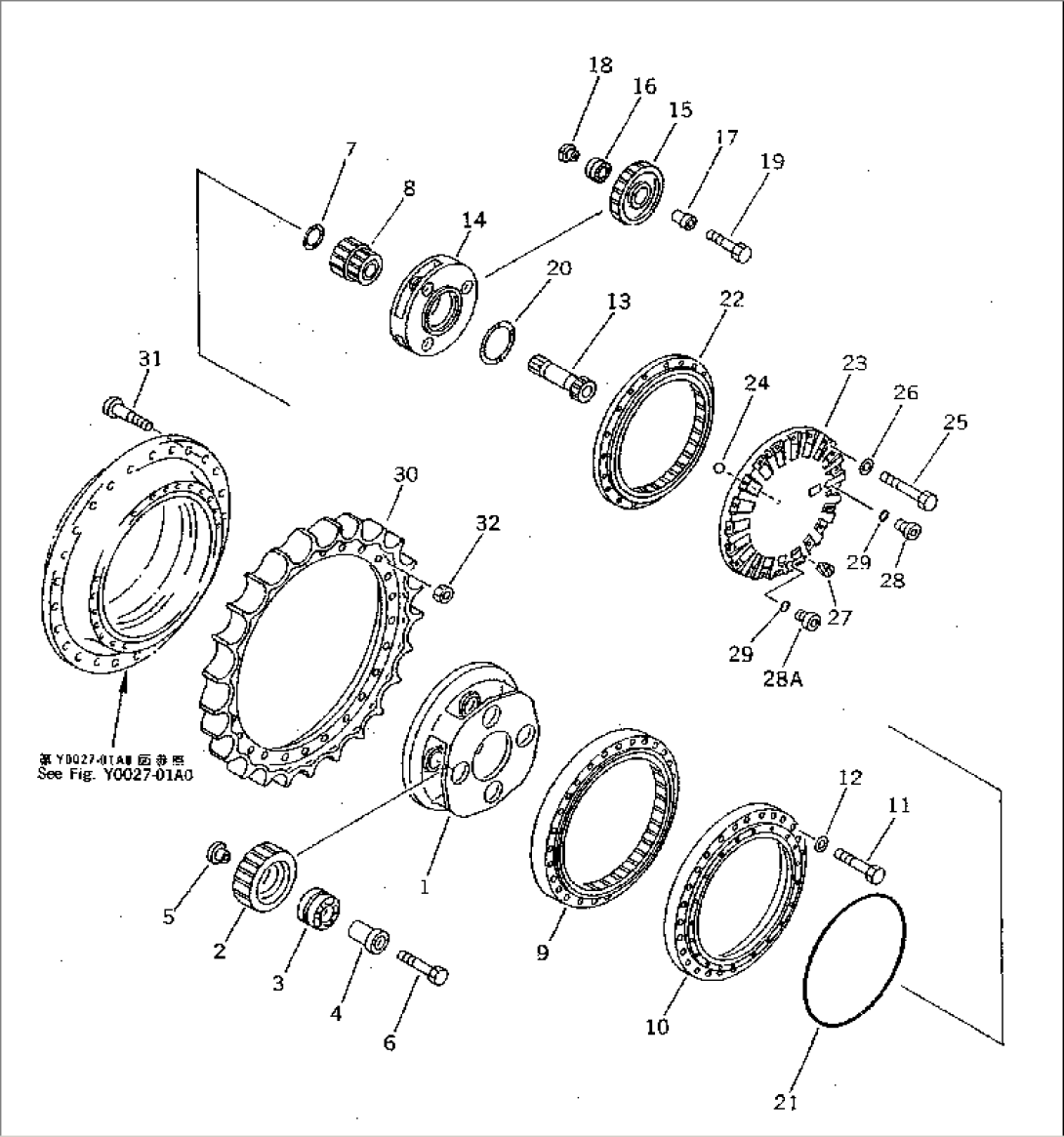

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y0027-01A0 AND Y0027-02A0. | ||||
| 1 | 209-27-61180 | CARRIER | 20001- | |
| 2 | 209-27-61140 | GEAR | 20001- | |
| 3 | 208-27-52230 | BEARING | 20001- | |
| 4 | 209-27-61250 | PIN | 20001- | |
| 5 | 208-27-52271 | HOLDER | 20001- | |
| 6 | 01011-52225 | BOLT | 20001- | |
| 7 | 207-27-52270 | SPACER | 20001- | |
| 8 | 209-27-61130 | GEAR | 20001- | |
| 9 | 209-27-61150 | GEAR | 20001- | |
| 10 | 209-27-61290 | SPACER | 20001- | |
| 11 | 01011-52240 | BOLT | 20001- | |
| 12 | 01643-32260 | WASHER | 20001- | |
| 13 | 209-27-61110 | GEAR | 20001- | |
| 14 | 209-27-61190 | CARRIER | 20001- | |
| 15 | 209-27-61120 | GEAR | 20001- | |
| 16 | 208-27-52220 | BEARING | 20001- | |
| 17 | 209-27-61240 | PIN | 20001- | |
| 18 | 209-27-61260 | HOLDER | 20001- | |
| 19 | 01010-51465 | BOLT | 20001- | |
| 20 | 208-27-31340 | SPACER | 20001- | |
| 21 | 209-27-51640 | O-RING | 20001- | |
| 22 | 209-27-61280 | GEAR | 20001- | |
| 23 | 209-27-61210 | COVER | 20001- | |
| 24 | 04260-01905 | BALL | 20001- | |
| 25 | 01010-51685 | BOLT | 20001- | |
| 26 | 01643-31645 | WASHER | 20001- | |
| 27 | 07049-01215 | PLUG | 20001- | |
| 28 | 07040-13016 | PLUG | 20001- | |
| 28A | 209-27-61510 | PLUG,MAGNET | 20001- | |
| 29 | 07002-03034 | O-RING | 20001- | |
| 30 | 209-27-51172 | TEETH | 20335- | |
| \0\209-27-51171 | TEETH | 20001-20334 | ||
| 31 | 195-27-31640 | BOLT | 20001- | |
| 32 | 01803-02430 | NUT | 20001- |
