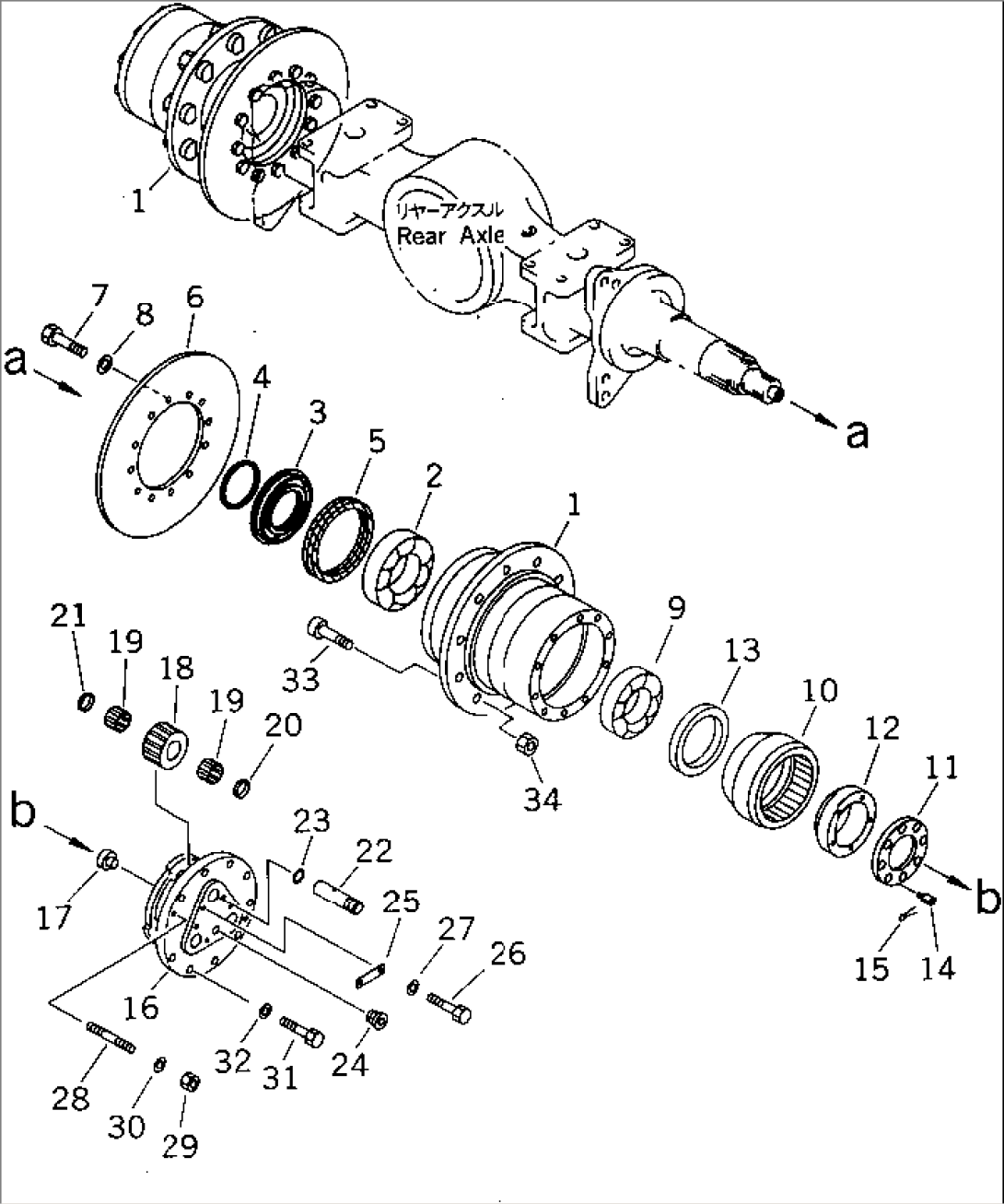

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (\4\273-24-11172) | HUB | 10256-10306 | |
| (273-24-04120) | ||||
| 2 | 06000-30221 | BEARING,ROLLER | 10011-@ | |
| 3 | 273-24-11310 | SEAL,RETAINER | 10011-@ | |
| 4 | 07000-15105 | O-RING | 10011-@ | |
| 5 | 273-24-11320 | SEAL,OIL | 10011-@ | |
| 6 | 273-24-11140 | DISK | 10011-@ | |
| 7 | 01010-51640 | BOLT | 10011-@ | |
| 8 | 01643-31645 | WASHER | 10011-@ | |
| 9 | 06000-30220 | BEARING,ROLLER | 10011-@ | |
| 10 | (\4\273-24-11334) | GEAR | 10256-10306 | |
| (273-24-04120) | ||||
| 11 | 273-24-11341 | NUT | 10256-@ | |
| 12 | (\4\273-24-11470) | COUPLING | 10256-10306 | |
| (273-24-04120) | ||||
| 13 | (\4\273-24-11460) | COLLAR | 10256-10306 | |
| (273-24-04120) | ||||
| 14 | 273-24-11350 | BOLT | 10011-@ | |
| 15 | 04050-12015 | PIN,COTTER | 10011-@ | |
| 16 | (\4\273-24-11434) | CARRIER | 10256-10306 | |
| (273-24-04120) | ||||
| 17 | (\4\273-24-11490) | BUTTON | 10256-10306 | |
| (273-24-04120) | ||||
| 18 | (\4\273-24-11384) | GEAR | 10256-10306 | |
| (273-24-04120) | ||||
| 19 | (\4\273-24-11372) | BEARING | 10256-10306 | |
| (273-24-04120) | ||||
| 20 | 273-24-11451 | SPACER | 10256-10306 | |
| 21 | 273-24-11412 | SPACER | 10256-10306 | |
| 22 | (\4\273-24-11363) | SHAFT | 10256-10306 | |
| (273-24-04120) | ||||
| 23 | 07000-13022 | O-RING | 10256-10306 | |
| 24 | 07043-00312 | PLUG | 10011-10306 | |
| 25 | (\4\273-24-11480) | LOCK | 10256-10306 | |
| (273-24-04120) | ||||
| 26 | 01010-51020 | BOLT | 10256-@ | |
| 27 | 01643-31032 | WASHER | 10256-@ | |
| 28 | 01144-51650 | STUD | 10256-@ | |
| 29 | 01580-11613 | NUT | 10011-@ | |
| 30 | 01643-31645 | WASHER | 10011-@ | |
| 31 | 01010-51655 | BOLT | 10256-10306 | |
| 32 | 01643-31645 | WASHER | 10011-10306 | |
| 33 | 238-25-16350 | BOLT | 10011-10306 | |
| 34 | 09211-02426 | NUT | 10011-10306 | |
| 273-24-04120 | FINAL GEAR KIT,(SERVICE PARTS) | 10256-10306 | ||
| 1 | \6\ | HUB | 10256-10306 | |
| 4 | \6\ | O-RING | 10256-10306 | |
| 5 | \6\ | SEAL,OIL | 10256-10306 | |
| 10 | \6\ | GEAR | 10256-10306 | |
| 11 | \6\ | PLATE | 10256-10306 | |
| 12 | \6\ | BOLT | 10256-10306 | |
| 13 | \6\ | WASHER | 10256-10306 | |
| 15 | \6\ | COUPLING | 10256-10306 | |
| 16 | \6\ | BOLT | 10256-10306 | |
| 17 | \6\ | PIN,COTTER | 10256-10306 | |
| 18 | \6\ | CARRIER | 10256-10306 | |
| 19 | \6\ | BUTTON | 10256-10306 | |
| 20 | \6\ | GEAR | 10256-10306 | |
| 21 | \6\ | SHAFT,(SEE FIG.2611) | 10256-10306 | |
| 21 | \6\ | BEARING | 10256-10306 | |
| 22 | \6\ | WASHER,THRUST | 10256-10306 | |
| 23 | \6\ | SHAFT | 10256-10306 | |
| 24 | \6\ | O-RING | 10256-10306 | |
| 25 | \6\ | PLUG | 10256-10306 | |
| 26 | \6\ | LOCK | 10256-10306 | |
| 32 | \6\ | BOLT | 10256-10306 | |
| 33 | \6\ | WASHER | 10256-10306 | |
| 34 | \6\ | BOLT | 10256-10306 | |
| 35 | \6\ | NUT | 10256-10306 | |
| 36 | \6\ | WASHER | 10256-10306 | |
| 37 | \6\ | GEAR | 10256-10306 | |
| 38 | \6\ | SPACER | 10256-10306 | |
| 39 | \6\ | RING | 10256-10306 |
