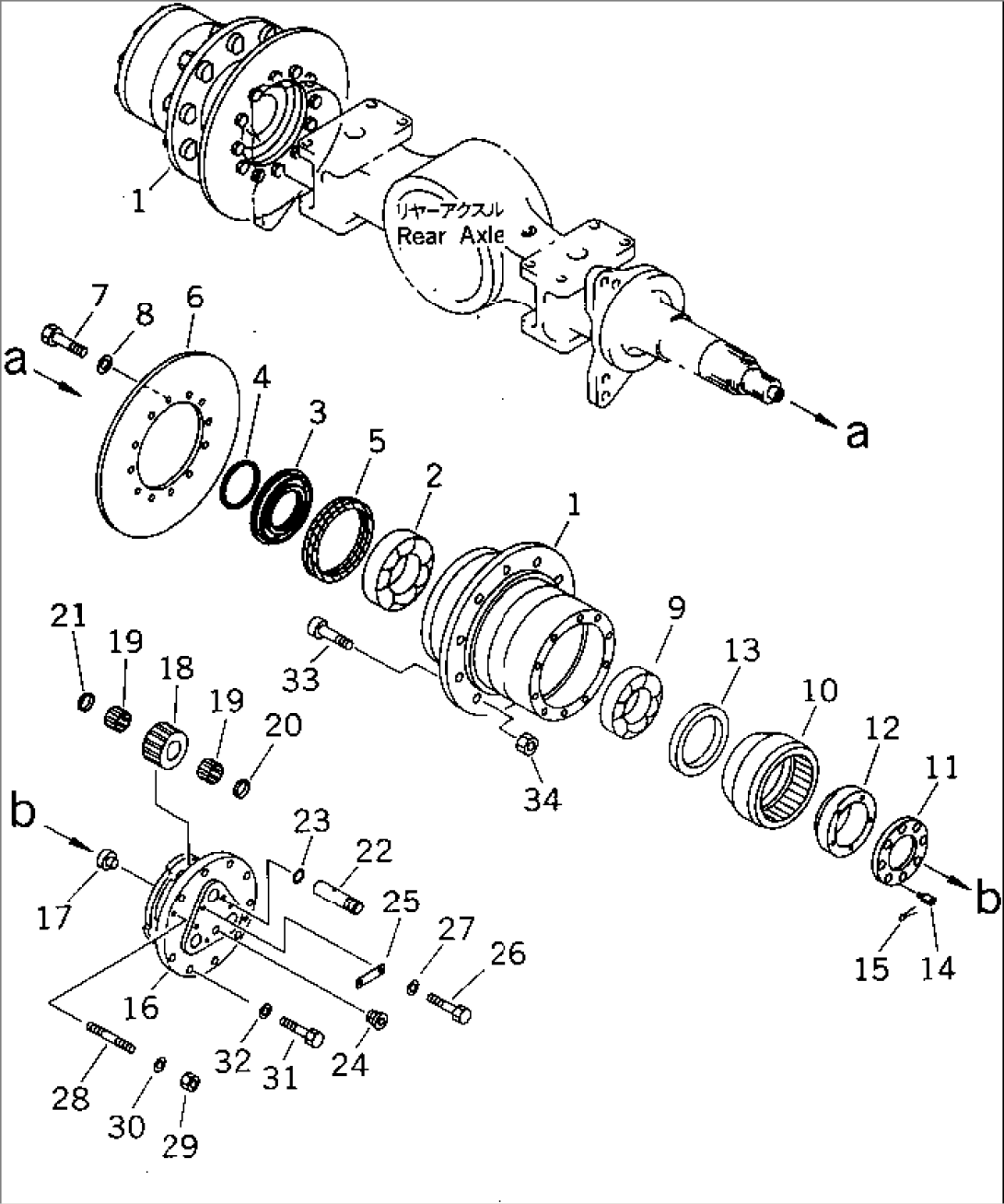

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | \3\273-24-11172 | HUB | 30003-30071 | |
| (273-24-04120) | ||||
| 2 | 06000-30221 | BEARING,ROLLER | 30003-@ | |
| 3 | 273-24-11310 | SEAL,RETAINER | 30003-@ | |
| 4 | 07000-15105 | O-RING | 30003-@ | |
| 5 | 273-24-11320 | SEAL,OIL | 30003-@ | |
| 6 | 273-24-11140 | DISK | 30003-@ | |
| 7 | 01010-51640 | BOLT | 30003-@ | |
| 8 | 01643-31645 | WASHER | 30003-@ | |
| 9 | 06000-30220 | BEARING,ROLLER | 30039-@ | |
| 10 | \3\273-24-11334 | GEAR | 30039-30071 | |
| (273-24-04120) | ||||
| 11 | 273-24-11341 | NUT | 30039-@ | |
| 12 | \3\273-24-11470 | COUPLING | 30039-30071 | |
| (273-24-04120) | ||||
| 13 | \3\273-24-11460 | COLLAR | 30039-30071 | |
| (273-24-04120) | ||||
| 14 | 273-24-11350 | BOLT | 30003-@ | |
| 15 | 04050-12015 | PIN,COTTER | 30003-@ | |
| 16 | \3\273-24-11434 | CARRIER | 30039-30071 | |
| (273-24-04120) | ||||
| 17 | \3\273-24-11490 | BUTTON | 30039-30071 | |
| (273-24-04120) | ||||
| 18 | \3\273-24-11384 | GEAR | 30039-30071 | |
| (273-24-04120) | ||||
| 19 | \3\273-24-11372 | BEARING | 30039-30071 | |
| (273-24-04120) | ||||
| 20 | 273-24-11451 | SPACER | 30039-30071 | |
| 21 | 273-24-11412 | SPACER | 30039-30071 | |
| 22 | \3\273-24-11363 | SHAFT | 30039-30071 | |
| (273-24-04120) | ||||
| 23 | 07000-13022 | O-RING | 30039-30071 | |
| 24 | 07043-00312 | PLUG | 30003-30071 | |
| 25 | \3\273-24-11480 | LOCK | 30039-30071 | |
| (273-24-04120) | ||||
| 26 | 01010-51020 | BOLT | 30039-@ | |
| 27 | 01643-31032 | WASHER | 30039-@ | |
| 28 | 01144-51650 | STUD | 30039-@ | |
| 29 | 01580-11613 | NUT | 30003-@ | |
| 30 | 01643-31645 | WASHER | 30003-@ | |
| 31 | 01010-51655 | BOLT | 30039-30071 | |
| 32 | 01643-31645 | WASHER | 30003-@ | |
| 33 | 238-25-16350 | BOLT | 30003-30071 | |
| 34 | 09211-02426 | NUT | 30003-30071 | |
| 273-24-04120 | FINAL GEAR KIT,(SERVICE PARTS) | 30039-30071 | ||
| 1 | \6\ | HUB | 30039-30071 | |
| 4 | \6\ | O-RING | 30039-30071 | |
| 5 | \6\ | SEAL,OIL | 30039-30071 | |
| 10 | \6\ | GEAR | 30039-30071 | |
| 11 | \6\ | PLATE | 30039-30071 | |
| 12 | \6\ | BOLT | 30039-30071 | |
| 13 | \6\ | WASHER | 30039-30071 | |
| 15 | \6\ | COUPLING | 30039-30071 | |
| 16 | \6\ | BOLT | 30033-30071 | |
| 17 | \6\ | PIN,COTTER | 30039-30071 | |
| 18 | \6\ | CARRIER | 30039-30071 | |
| 19 | \6\ | BUTTON | 30039-30071 | |
| 20 | \6\ | GEAR | 30039-30071 | |
| 21 | \6\ | SHAFT,(SEE FIG.2611) | 30039-30071 | |
| 21 | \6\ | BEARING | 30039-30071 | |
| 22 | \6\ | WASHER,THRUST | 30039-30071 | |
| 23 | \6\ | SHAFT | 30039-30071 | |
| 24 | \6\ | O-RING | 30039-30071 | |
| 25 | \6\ | PLUG | 30039-30071 | |
| 26 | \6\ | LOCK | 30039-30071 | |
| 32 | \6\ | BOLT | 30039-30071 | |
| 33 | \6\ | WASHER | 30039-30071 | |
| 34 | \6\ | BOLT | 30039-30071 | |
| 35 | \6\ | NUT | 30039-30071 | |
| 36 | \6\ | WASHER | 30039-30071 | |
| 37 | \6\ | GEAR | 30039-30071 | |
| 38 | \6\ | SPACER | 30039-30071 | |
| 39 | \6\ | RING | 30039-30071 |
