| Item | Part No. | Part Name | Qty | Serial No. |

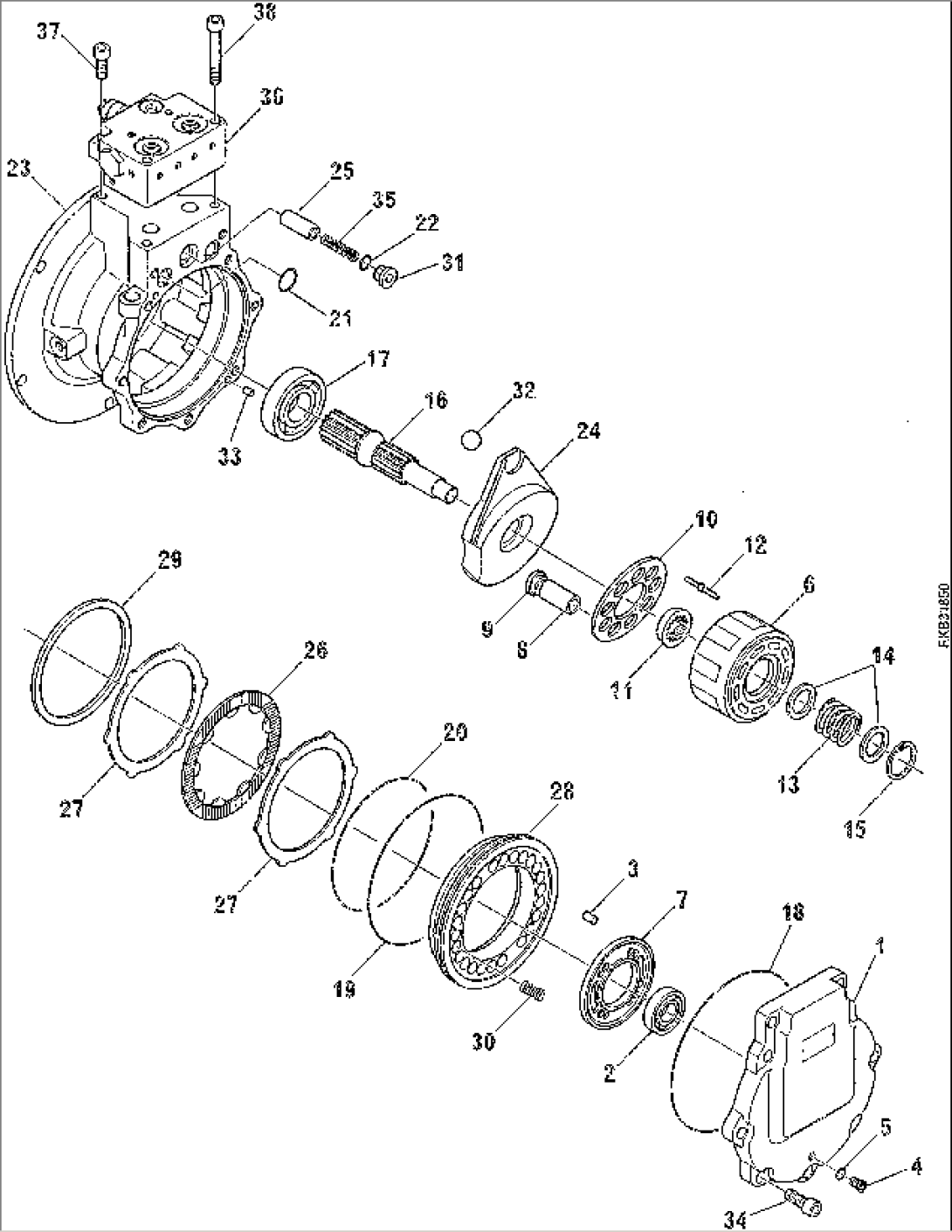

| (37A-60-11101) | TRAVEL MOTOR ASS'Y | AF00004- | ||
| (FUPMV2B4528BA) | .MOTOR ASS'Y | AF00004- | ||
| FUMHB-1-4860 | ..KIT | AF00004- | ||
| 1 | \6\ | ...COVER | AF00004- | |
| 2 | \6\ | ...BEARING | AF00004- | |
| 3 | \6\ | ...PIN,SPRING | AF00004- | |
| 4 | \6\ | ...PLUG | AF00004- | |
| 5 | \6\ | ...O-RING | AF00004- | |
| FUMHCB-1-4860 | ..KIT,CYLINDER BLOCK | AF00004- | ||
| 6 | \6\ | ...CYLINDER BLOCK | AF00004- | |
| 7 | \6\ | ...TIMING PLATE | AF00004- | |
| 8 | \6\ | ...PISTON | AF00004- | |
| 9 | \6\ | ...BLOCK,SLIDE | AF00004- | |
| 10 | \6\ | ...PLATE | AF00004- | |
| 11 | \6\ | ...BALL,THRUST | AF00004- | |
| 12 | \6\ | ...PIN | AF00004- | |
| 13 | \6\ | ...SPRING | AF00004- | |
| 14 | \6\ | ...SPACER | AF00004- | |
| 15 | \6\ | ...RING | AF00004- | |
| FUMHSH-1-4860 | ..KIT,SHAFT | AF00004- | ||
| 16 | \6\ | ...SHAFT | AF00004- | |
| 17 | \6\ | ...BEARING | AF00004- | |
| FUMHS-1-4860 | KIT,GASKET | AF00004- | ||
| 18 | \6\ | ...O-RING | AF00004- | |
| 19 | \6\ | ...O-RING | AF00004- | |
| 20 | \6\ | ...O-RING | AF00004- | |
| 21 | \6\ | ...O-RING | AF00004- | |
| 22 | \6\ | ...O-RING | AF00004- | |
| 23 | \6\ | ..BODY | AF00004- | |
| 24 | FUFZD486041045 | ..SWASH PLATE | AF00004- | |
| 25 | FUFZD4860411 | ..PISTON | AF00004- | |
| 26 | FUFZD4860426 | ..DISK | AF00004- | |
| 27 | FUFZD4363127 | ..DISK,FRICTION | AF00004- | |
| 28 | FUFZD4860417 | ..PISTON,BRAKE | AF00004- | |
| 29 | FUFZD4860118 | ..SPACER | AF00004- | |
| 30 | FUFZS2808321 | ..SPRING | AF00004- | |
| 31 | FUGPF-1/2 | ..PLUG | AF00004- | |
| 32 | FUYB-3/4 | ..BALL | AF00004- | |
| 33 | FUPP-H7-8X15 | ..PIN | AF00004- | |
| 34 | FUTH-10X30 | ..BOLT | AF00004- | |
| 35 | FUFZD4860436 | ..SPRING | AF00004- | |
| 36 | FUZZT04A8957A | ..HOLDER ASS'Y | AF00004- | |
| 37 | FUTH-8X35 | ..SCREW | AF00004- | |
| 38 | FUTH-8X65 | ..SCREW | AF00004- |
