| Item | Part No. | Part Name | Qty | Serial No. |
| 19M-27-00311 | FINAL DRIVE ASS'Y | 10106- | ||
| 19M-27-00310 | FINAL DRIVE ASS'Y | 10101-10104 | ||
| 19M-27-00017 | FINAL DRIVE ASS'Y,(W/RIPPER) | 10101- | ||

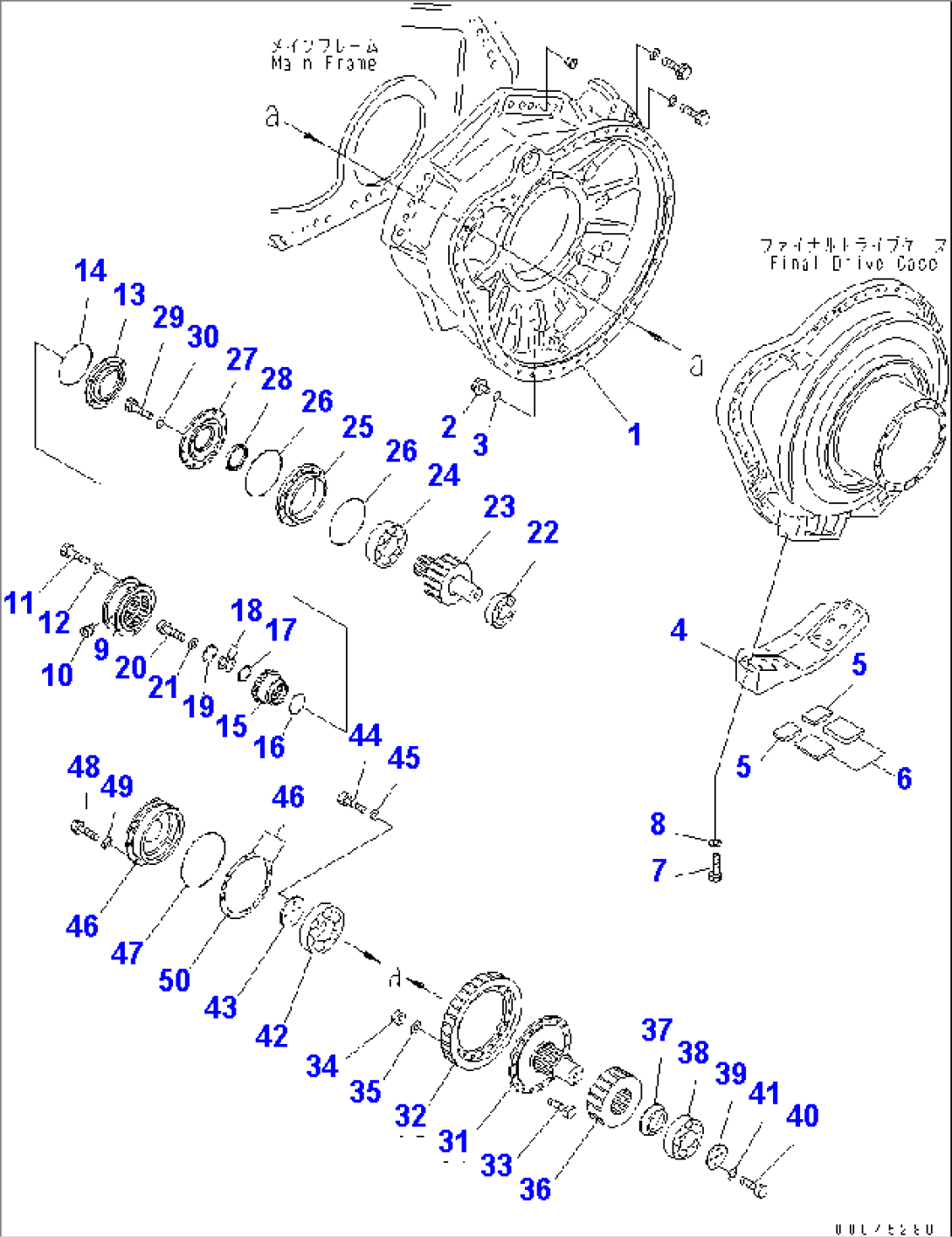

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A0 T0 F2380-06A0. | ||||
| 1 | 19M-27-11112 | CASE | 10101- | |
| 2 | 07044-13620 | PLUG | 10101- | |
| 3 | 07002-13634 | O-RING | 10101- | |
| 4 | 19M-27-11781 | GUARD | 10101- | |
| 5 | 19M-27-13560 | PLATE (WELDED) | 10101- | |
| 6 | 19M-27-13550 | PLATE (WELDED) | 10101- | |
| 7 | 01011-83000 | BOLT | 10101- | |
| 8 | 01643-33080 | WASHER | 10101- | |
| 9 | 19M-22-11110 | GEAR | 10101- | |
| 10 | 07043-70312 | PLUG | 10101- | |
| 11 | 01010-81235 | BOLT | 10101- | |
| 12 | 01643-31232 | WASHER | 10101- | |
| 13 | 19M-27-11842 | COVER | 10101- | |
| 14 | 07000-15260 | O-RING | 10101- | |
| 15 | 19M-22-11141 | GEAR | 10101- | |
| 16 | 19M-22-11980 | O-RING | 10101- | |
| 17 | 19M-22-11190 | PACKING | 10101- | |
| 18 | 19M-22-00030 | SHIM ASS'Y | 10101- | |
| 18 | \6\ | SHIM, 0.5MM | 10101- | |
| 18 | \6\ | SHIM, 0.2MM | 10101- | |
| 18 | \6\ | SHIM, 0.15MM | 10101- | |
| 19 | 19M-22-11181 | HOLDER | 10101- | |
| 20 | 01010-81650 | BOLT | 10101- | |
| 21 | 01643-31645 | WASHER | 10101- | |
| 22 | 170-09-13180 | BEARING | 10101- | |
| 23 | 19M-27-11941 | SHAFT | 10101- | |
| 24 | 19M-09-11112 | BEARING | 10101- | |
| 25 | 19M-27-11331 | CAGE | 10101- | |
| 26 | 07000-15290 | O-RING | 10101- | |
| 27 | 19M-27-11320 | GUARD | 10101- | |
| 28 | 19M-09-21350 | SEAL | 10101- | |
| 29 | 01010-81670 | BOLT | 10101- | |
| 30 | 01643-31645 | WASHER | 10101- | |
| 31 | 19M-27-11352 | SHAFT | 10101- | |
| 32 | 19M-27-11950 | GEAR | 10101- | |
| 33 | 01084-02065 | BOLT | 10101- | |
| 34 | 01582-12016 | NUT | 10101- | |
| 35 | 01643-32060 | WASHER | 10101- | |
| 36 | 19M-27-11412 | GEAR | 10101- | |
| 37 | 19M-27-11390 | SPACER | 10101- | |
| 38 | 19M-09-11162 | BEARING | 10101- | |
| 39 | 19M-27-11370 | PLATE | 10101- | |
| 40 | 01010-81230 | BOLT | 10101- | |
| 41 | 01643-31232 | WASHER | 10101- | |
| 42 | 19M-09-11153 | BEARING | 10101- | |
| 43 | 19M-27-11380 | PLATE | 10101- | |
| 44 | 01010-81230 | BOLT | 10101- | |
| 45 | 01643-31232 | WASHER | 10101- | |
| 46 | 19M-27-11341 | COVER | 10101- | |
| 47 | 07000-15340 | O-RING | 10101- | |
| 48 | 01010-81640 | BOLT | 10101- | |
| 49 | 01643-31645 | WASHER | 10101- | |
| 50 | 19M-27-00041 | SHIM ASS'Y | 10101- | |
| 50 | \6\ | SHIM, 0.15MM | 10101- | |
| 50 | \6\ | SHIM, 0.15MM | 10101- | |
| 50 | \6\ | SHIM, 0.2MM | 10101- | |
| 50 | \6\ | SHIM, 0.2MM | 10101- | |
| 50 | \6\ | SHIM, 0.5MM | 10101- | |
| 50 | \6\ | SHIM, 0.5MM | 10101- |
