| Item | Part No. | Part Name | Qty | Serial No. |
| (19M-27-00212) | FINAL DRIVE ASS'Y | 10036- | ||
| ((\2\19M-27-00210)) | FINAL DRIVE ASS'Y,L.H. | (10012-10035) | ||
| (19M-27-00222) | FINAL DRIVE ASS'Y | 10036- | ||
| ((\2\19M-27-00220)) | FINAL DRIVE ASS'Y,R.H. | (10012-10035) | ||

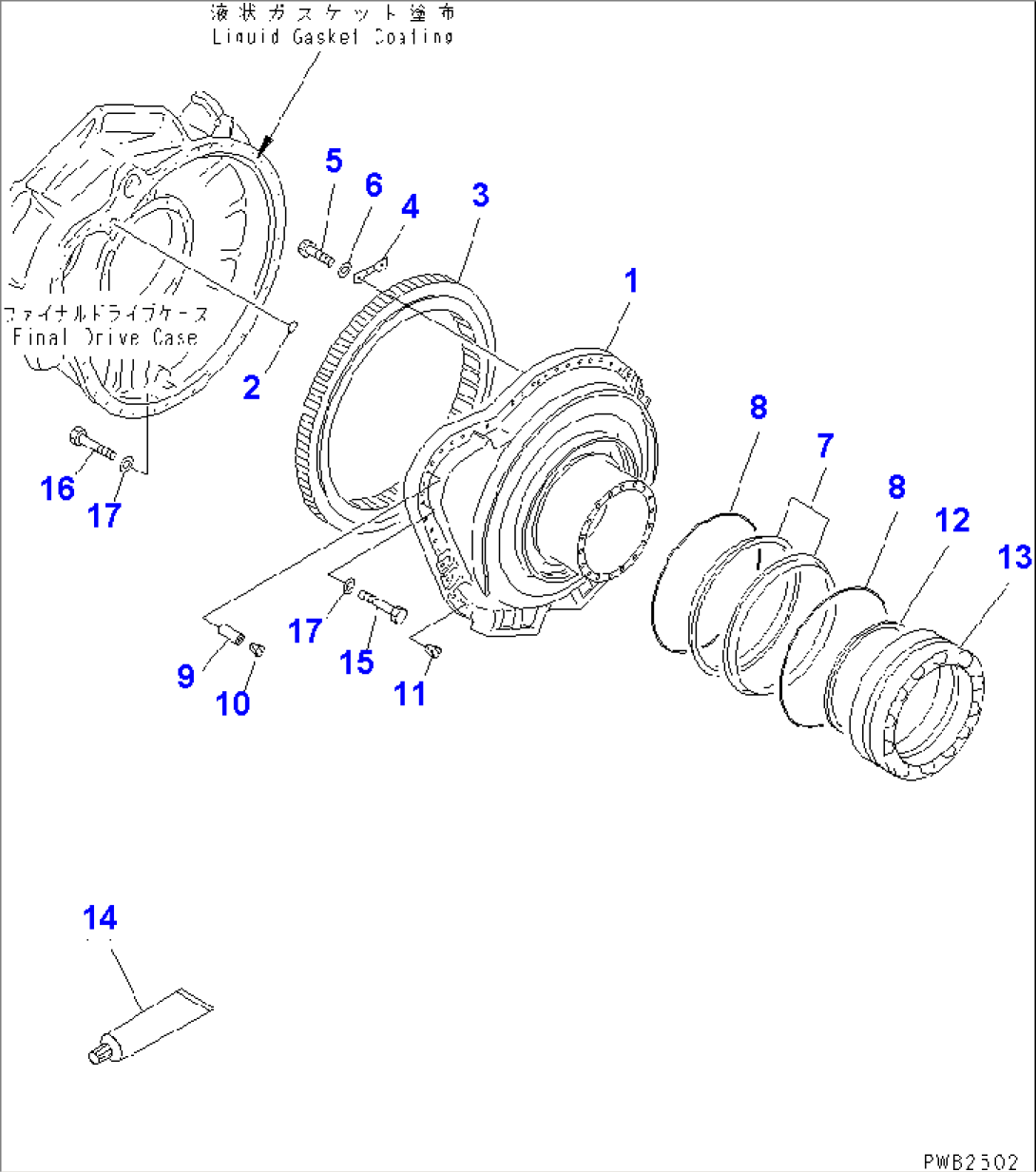

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2381-01A1 TO F2381-07A1. | ||||
| 1 | 19M-27-21120 | COVER,L.H. | 10012- | |
| 1 | 19M-27-21130 | COVER,R.H. | 10012- | |
| 2 | 07000-13032 | O-RING | 10001- | |
| 3 | 19M-27-11610 | GEAR | 10001- | |
| 4 | 19M-27-11961 | PLATE | 10012- | |
| 5 | 01010-61635 | BOLT | 10012- | |
| 6 | 01643-31645 | WASHER | 10001-10016 | |
| 19M-27-00030 | FLOATING SEAL ASS'Y | 10001- | ||
| 7 | \6\ | RING,SEAL | 10001- | |
| 8 | \6\ | O-RING | 10001- | |
| 9 | 198-27-11640 | PIN,DOWEL | 10001- | |
| 10 | 07049-01620 | PLUG | 10001- | |
| 11 | 07049-03645 | PLUG | 10001- | |
| 12 | 19M-27-13270 | COLLAR | 10001- | |
| 13 | 19M-09-11191 | BEARING | 10001- | |
| 14 | 198-27-33460 | GASKET | 10001- | |
| 15 | 01011-63620 | BOLT | 10001- | |
| 16 | 01011-63605 | BOLT | 10001- | |
| 17 | 01643-33690 | WASHER | 10001- |
