| Item | Part No. | Part Name | Qty | Serial No. |

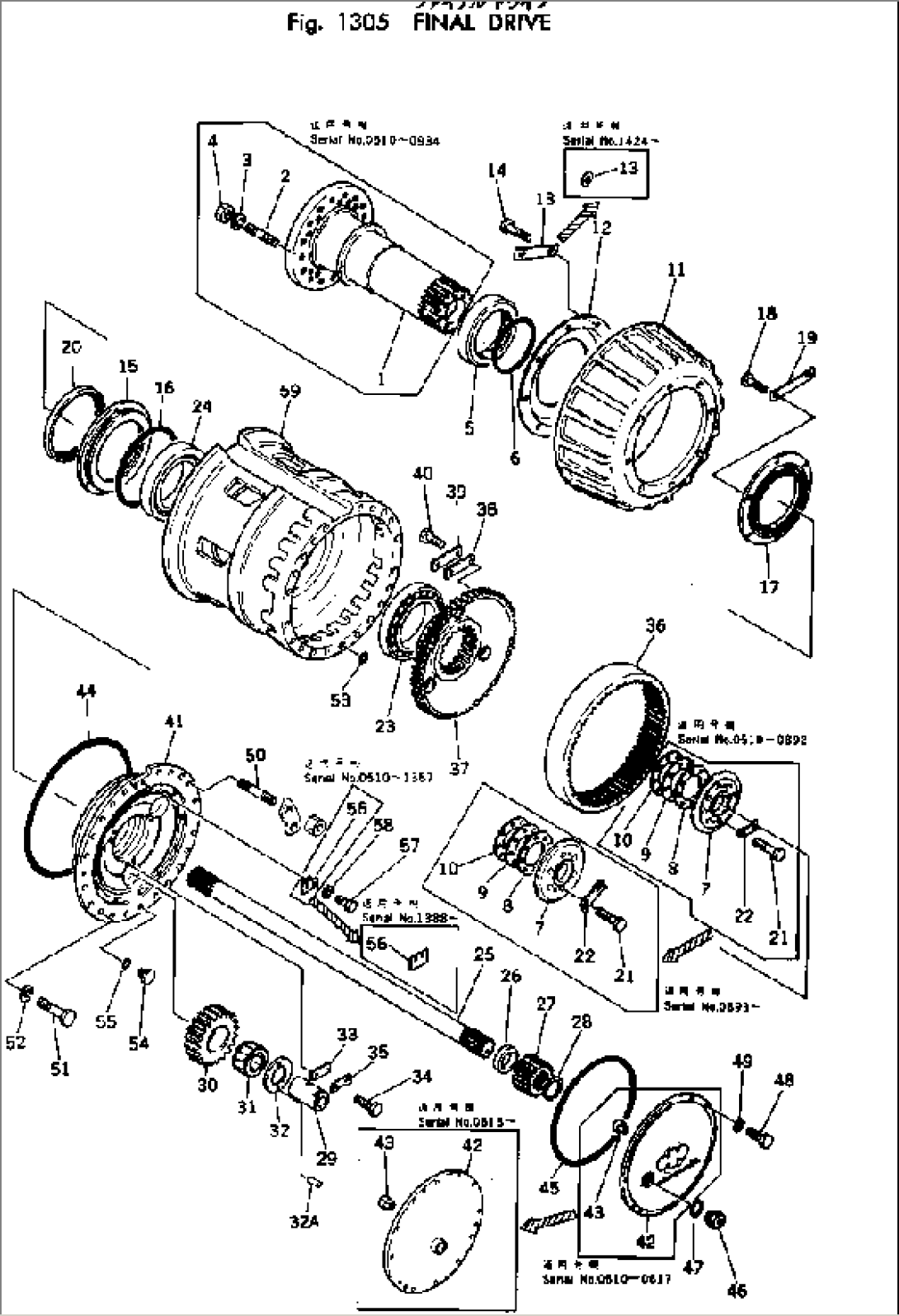

| 565-22-12002 | FINAL DRIVE ASS'Y | 935- | ||
| 565-22-12001 | FINAL DRIVE ASS'Y | 893-934 | ||
| \0\565-22-12000 | FINAL DRIVE ASS'Y | 510-892 | ||
| 1 | 565-22-11523 | TUBE | 893-934 | |
| 1 | 565-22-11522 | TUBE | 510-892 | |
| 2 | 01100-82465 | STUD | 510-934 | |
| 3 | 01602-22472 | WASHER | 510-934 | |
| 4 | 01582-12419 | NUT | 510-934 | |
| 5 | 565-22-11560 | RING | 510- | |
| 6 | 07000-05170 | O-RING | 510- | |
| 7 | 565-22-14451 | RETAINER | 893- | |
| 7 | 565-22-14450 | RETAINER | 510-892 | |
| 8 | 565-22-00121 | SHIM ASS'Y | 893- | |
| 8 | 565-22-00120 | SHIM ASS'Y | 510-892 | |
| 8 | \6\ | SHIM, 1.0MM | 893- | |
| 8 | \6\ | SHIM, 1.0MM | 510-892 | |
| \6\ | SHIM, 0.3MM | 510-892 | ||
| 9 | \6\ | SHIM, 0.3MM | 893- | |
| \6\ | SHIM, 0.2MM | 510-892 | ||
| 10 | \6\ | SHIM, 0.2MM | 893- | |
| \0\01018-32050 | BOLT | 510-725 | ||
| 11 | 565-27-16220 | DRUM | 510- | |
| 12 | 565-22-14721 | COVER | 1424- | |
| 12 | \0\565-22-14720 | COVER | 510-1423 | |
| 13 | 01643-32060 | WASHER | 1424- | |
| 13 | \0\565-27-16230 | PLATE (KIT) | 510-1423 | |
| 14 | 01018-22070 | BOLT | 1424- | |
| 14 | \0\01018-32065 | BOLT | 726-1423 | |
| 15 | 565-22-11810 | COVER | 510- | |
| 16 | 07000-05260 | O-RING (KIT) | 510- | |
| 17 | 565-22-11820 | COVER | 510- | |
| 18 | 01010-51235 | BOLT | 510- | |
| 19 | 565-22-11830 | PLATE (KIT) | 510- | |
| 20 | 565-22-11570 | SEAL (KIT) | 510- | |
| 21 | \0\01018-31645 | BOLT (KIT) | 893- | |
| 21 | 01010-51440 | BOLT | 510-892 | |
| 22 | 565-22-14491 | PLATE | 893- | |
| 22 | 565-22-14490 | PLATE (KIT) | 510-892 | |
| 23 | 06000-32032 | BEARING,OUTER | 510- | |
| 24 | 06000-32034 | BEARING,INNER | 510- | |
| 25 | 567-22-12411 | SHAFT | .- | |
| 25 | \0\567-22-12410 | SHAFT | 1412-. | |
| 25 | \0\565-22-15112 | SHAFT | 510-1411 | |
| 26 | 565-22-14441 | BUSHING | 1424- | |
| 26 | \0\565-22-14440 | BUSHING | 510-1423 | |
| 27 | 565-22-15133 | GEAR | 510- | |
| 28 | 04064-06525 | RING | 510- | |
| 29 | 565-22-14213 | SHAFT | 510- | |
| 30 | 565-22-14223 | GEAR | 510- | |
| 31 | 565-22-14231 | BEARING | 510- | |
| 32 | 565-22-14262 | WASHER | 1160- | |
| 32 | 565-22-14261 | WASHER | 510-1159 | |
| 32A | 565-22-11991 | PIN | 1449- | |
| 32A | \0\565-22-11990 | PIN | 1424-1448 | |
| 32A | \0\565-99-81190 | PIN | 1160-1423 | |
| 33 | 04082-00306 | LOCK | 510- | |
| 34 | 01010-51225 | BOLT | 510- | |
| 35 | 565-22-12550 | LOCK (KIT) | 510- | |
| 36 | 565-22-14421 | GEAR | 510- | |
| 37 | 565-22-14412 | HUB | .- | |
| 37 | \0\565-22-14414 | HUB | 510-. | |
| 38 | 566-22-12560 | PLATE | 510- | |
| 39 | 566-22-12570 | PLATE (KIT) | 510- | |
| 40 | 01010-30820 | BOLT | 510- | |
| 41 | 565-22-14117 | CARRIER | 1160- | |
| 41 | 565-22-14114 | CARRIER | 510-1159 | |
| 42 | 565-22-14174 | COVER | 618- | |
| 42 | \3\565-22-14171 | COVER | 510-617 | |
| (565-22-14174,281-22-12422) | ||||
| 43 | 281-22-12422 | BUTTON | 618- | |
| 43 | \0\281-22-12420 | BUTTON | 510-617 | |
| 44 | 07000-05465 | O-RING (KIT) | 510- | |
| 45 | 07000-05355 | O-RING (KIT) | 510- | |
| 46 | 07044-13620 | PLUG | 510- | |
| 47 | 07002-03634 | O-RING (KIT) | 510- | |
| 48 | 01010-51230 | BOLT | 510- | |
| 49 | 01602-21236 | WASHER | 510- | |
| 50 | 566-22-12730 | STUD | 510- | |
| 51 | 01010-52090 | BOLT | 510- | |
| 52 | 01602-22060 | WASHER | 510- | |
| 53 | 07000-02021 | O-RING (KIT) | 510- | |
| 54 | 07040-11612 | PLUG | 510- | |
| 55 | 07002-01623 | O-RING (KIT) | 510- | |
| 56 | 565-22-12620 | PLATE | 1388- | |
| 56 | 565-22-14660 | PLATE | 510-1387 | |
| 57 | 01010-31220 | BOLT | 510- | |
| 58 | 01602-21236 | WASHER | 510- | |
| 59 | 565-22-14614 | HUB | 1220- | |
| 59 | \0\565-22-14613 | HUB | 726-1219 | |
| 59 | \3\565-22-14612 | HUB | 510-725 | |
| (565-22-14614,01018-32065) |
