| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-27-00360 | FINAL DRIVE ASS'Y,R.H. | 25001-30000 | ||

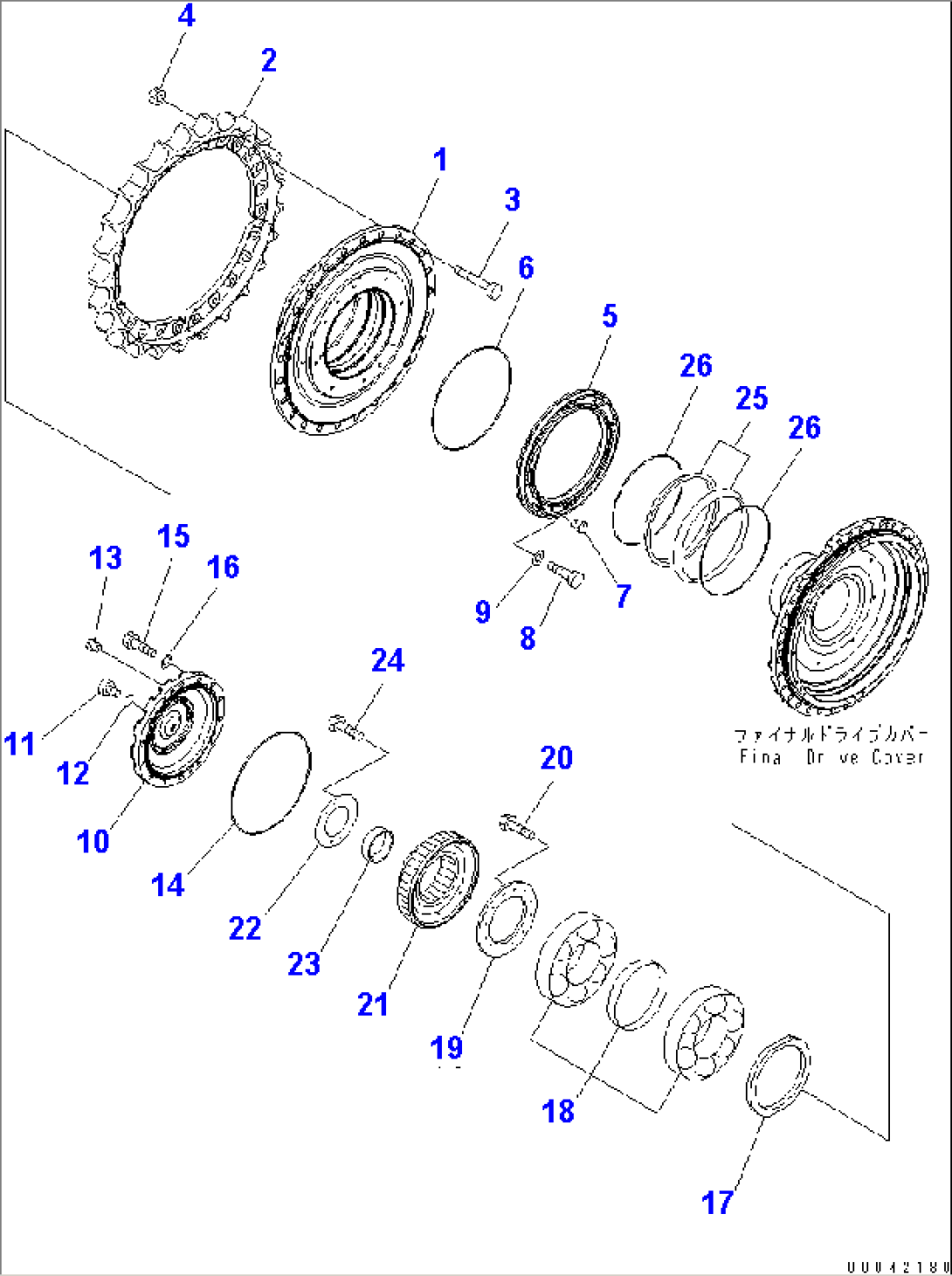

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A2 AND F2380-06A2. | ||||
| 1 | 17M-27-41460 | HUB | 25001-@ | |
| 2 | 17M-27-77110 | TEETH | 25001-30000 | |
| 3 | 09203-12485 | BOLT | 25001-@ | |
| 4 | 01803-02430 | NUT | 25001-@ | |
| 5 | 17M-27-41490 | COVER | 25001-@ | |
| 6 | 07000-55440 | O-RING | 25001-@ | |
| 7 | 07049-01215 | PLUG | 25001-@ | |
| 8 | 01010-81230 | BOLT | 25001-@ | |
| 9 | 01643-31232 | WASHER | 25001-@ | |
| 10 | 17M-27-41470 | COVER | 25001-@ | |
| 11 | 07044-13620 | PLUG | 25001-@ | |
| 12 | 07002-53634 | O-RING | 25001-@ | |
| 13 | 07049-01620 | PLUG | 25001-@ | |
| 14 | 07000-55410 | O-RING | 25001-@ | |
| 15 | 01010-81650 | BOLT | 25001-@ | |
| 16 | 01643-31645 | WASHER | 25001-@ | |
| 17 | 17M-27-21381 | COLLAR | 25001-@ | |
| 18 | 17M-09-21130 | BEARING | 25001-@ | |
| 19 | 17M-27-21390 | HOLDER | 25001-@ | |
| 20 | 01010-81645 | BOLT | 25001-@ | |
| 21 | 17M-27-21582 | HUB | 25001-@ | |
| 22 | 17M-27-21410 | PLATE | 25001-@ | |
| 23 | 17M-27-21650 | SPACER | 25001-@ | |
| 24 | 01010-81230 | BOLT | 25001-@ | |
| 17M-27-00121 | FLOATING SEAL ASS'Y | 25001-@ | ||
| 25 | \6\ | RING | 25001-@ | |
| 26 | \6\ | O-RING | 25001-@ |
