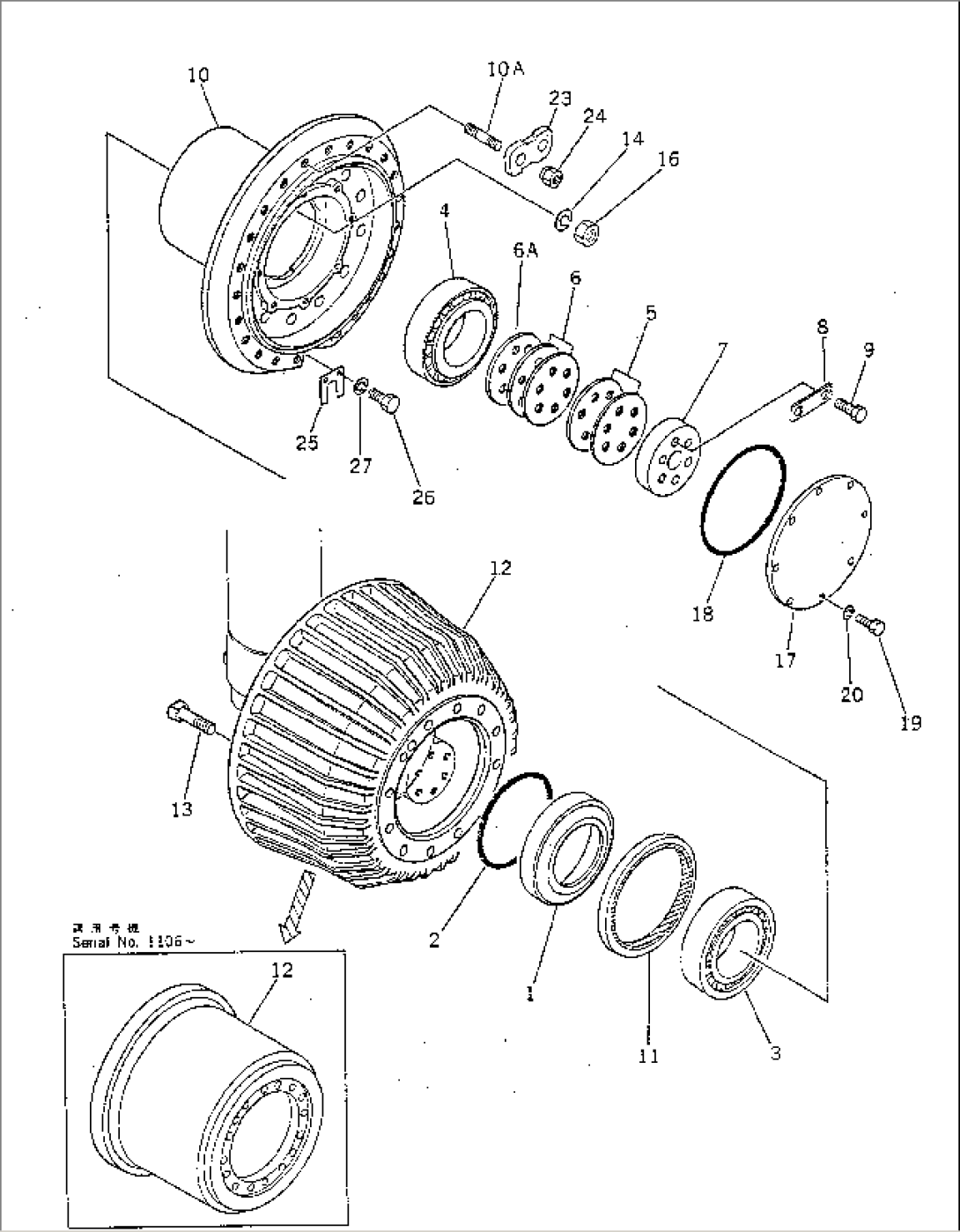

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-22-12003 | FINAL DRIVE ASS'Y | 1088- | ||
| 568-22-12002 | FINAL DRIVE ASS'Y | 1013-1087 | ||
| 568-22-12001 | FINAL DRIVE ASS'Y | 1002-1012 | ||
| 1 | 568-22-12112 | TUBE | 1013-1087 | |
| 1 | 568-22-12111 | TUBE | 1002-1012 | |
| 2 | 568-22-12143 | RETAINER | 1079- | |
| 2 | \0\568-22-12142 | RETAINER | 1002-1078 | |
| 3 | 07000-05320 | O-RING (KIT) | 1002- | |
| 4 | 568-22-12940 | BEARING | 1023- | |
| 4 | \0\06000-32064 | BEARING | 1002-1022 | |
| 5 | 568-22-12960 | BEARING | 1023- | |
| 5 | \0\06000-32060 | BEARING | 1002-1022 | |
| 568-22-00111 | SHIM ASS'Y | 1013- | ||
| \0\568-22-00110 | SHIM ASS'Y | 1002-1012 | ||
| 6 | 568-22-12230 | SHIM, 0.2MM | 1013- | |
| 6 | 568-22-12230 | SHIM, 0.2MM | 1002-1012 | |
| 7 | 568-22-12240 | SHIM, 0.3MM | 1013- | |
| 7 | 568-22-12240 | SHIM, 0.3MM | 1002-1012 | |
| 8 | 568-22-12250 | SHIM, 1.0MM | 1013- | |
| 8 | 568-22-12250 | SHIM, 1.0MM | 1002-1012 | |
| 9 | 568-22-12211 | RETAINER | 1002- | |
| 10 | 568-22-12220 | LOCK (KIT) | 1002- | |
| 11 | 01010-82465 | BOLT | 1002- | |
| 12 | 07000-05380 | O-RING (KIT) | 1002-1087 | |
| 13 | 01125-83600 | STUD | 1002-1087 | |
| 14 | 01601-23690 | WASHER | 1002-1087 | |
| 15 | 01580-13629 | NUT | 1002-1087 | |
| 568-22-00120 | WHEEL HUB ASS'Y | 1002- | ||
| 16 | 568-22-12711 | HUB | 1002- | |
| 17 | 01124-81850 | STUD | 1002- | |
| 18 | 01121-82225 | STUD | 1002- | |
| 19 | 01602-21854 | WASHER | 1002- | |
| 20 | 01580-11815 | NUT | 1002- | |
| 21 | 568-22-12311 | HUB | 1067- | |
| 21 | \0\568-22-12310 | HUB | 1002-1066 | |
| 22 | 568-22-12540 | GEAR | 1002- | |
| 23 | 285-22-12340 | HOLDER | 1002- | |
| 24 | 285-22-12180 | PLATE (KIT) | 1002- | |
| 25 | 01010-51230 | BOLT | 1002- | |
| 26 | 568-22-12411 | SHAFT,DRIVE | 1002- | |
| 27 | 568-22-12441 | SPACER | 1002- | |
| 28 | 568-22-12450 | GEAR | 1002- | |
| 29 | 04064-01030 | RING | 1002- | |
| 30 | 568-22-12612 | CARRIER | 1044- | |
| 30 | \0\568-22-12611 | CARRIER | 1002-1043 | |
| 31 | 285-22-12241 | SHAFT | 1055- | |
| 31 | \0\285-22-12240 | SHAFT | 1044-1054 | |
| 32 | 285-22-12250 | LOCK | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 01010-51230 | BOLT | 1002- | |
| 35 | 285-22-12290 | BEARING | 1002- | |
| 36 | 568-22-12530 | GEAR,PLANETARY | 1002- | |
| 37 | 285-22-12231 | WASHER | 1044- | |
| 37 | \0\285-22-12230 | WASHER | 1002-1043 | |
| 38 | 568-33-11440 | O-RING (KIT) | 1002- | |
| 39 | 568-22-12810 | O-RING (KIT) | 1002- | |
| 40 | 566-22-12620 | PLATE | 1002- | |
| 41 | 01602-21030 | WASHER | 1002- | |
| 42 | 01010-51020 | BOLT | 1002- | |
| 43 | 07000-02021 | O-RING (KIT) | 1002- | |
| 44 | 07002-01623 | O-RING (KIT) | 1002- | |
| 45 | 07040-11612 | PLUG | 1002- | |
| 46 | 568-22-12642 | COVER | 1067- | |
| 46 | \3\568-22-12641 | COVER | 1002-1066 | |
| (568-22-12642,286-22-12630) | ||||
| 47 | 286-22-12630 | BUTTON | 1067- | |
| 47 | \3\281-22-12420 | BUTTON | 1002-1066 | |
| (568-22-12630,568-22-12642) | ||||
| 48 | 01602-21442 | WASHER | 1002- | |
| 49 | 01010-51435- | BOLT | 1002- | |
| 50 | 07002-03634 | O-RING (KIT) | 1002- | |
| 51 | 07044-13620 | PLUG | 1002- | |
| 52 | 01602-22268 | WASHER | 1002- | |
| 53 | 01011-82200 | BOLT | 1002- | |
| 54 | 568-30-12210 | CLAMP | 1002- | |
| 55 | 09211-02224 | NUT | 1002- | |
| 56 | 568-22-12150 | SPACER | 1002- | |
| 57 | 07002-01223 | O-RING (KIT) | 1002-1087 | |
| 58 | 07040-11209 | PLUG | 1002-1087 | |
| 59 | 07060-01230 | BOLT | 1002-1087 | |
| 60 | 565-22-11991 | PIN | 1079- | |
| \0\565-99-81190 | PIN | 1044-1078 |
