| Item | Part No. | Part Name | Qty | Serial No. |

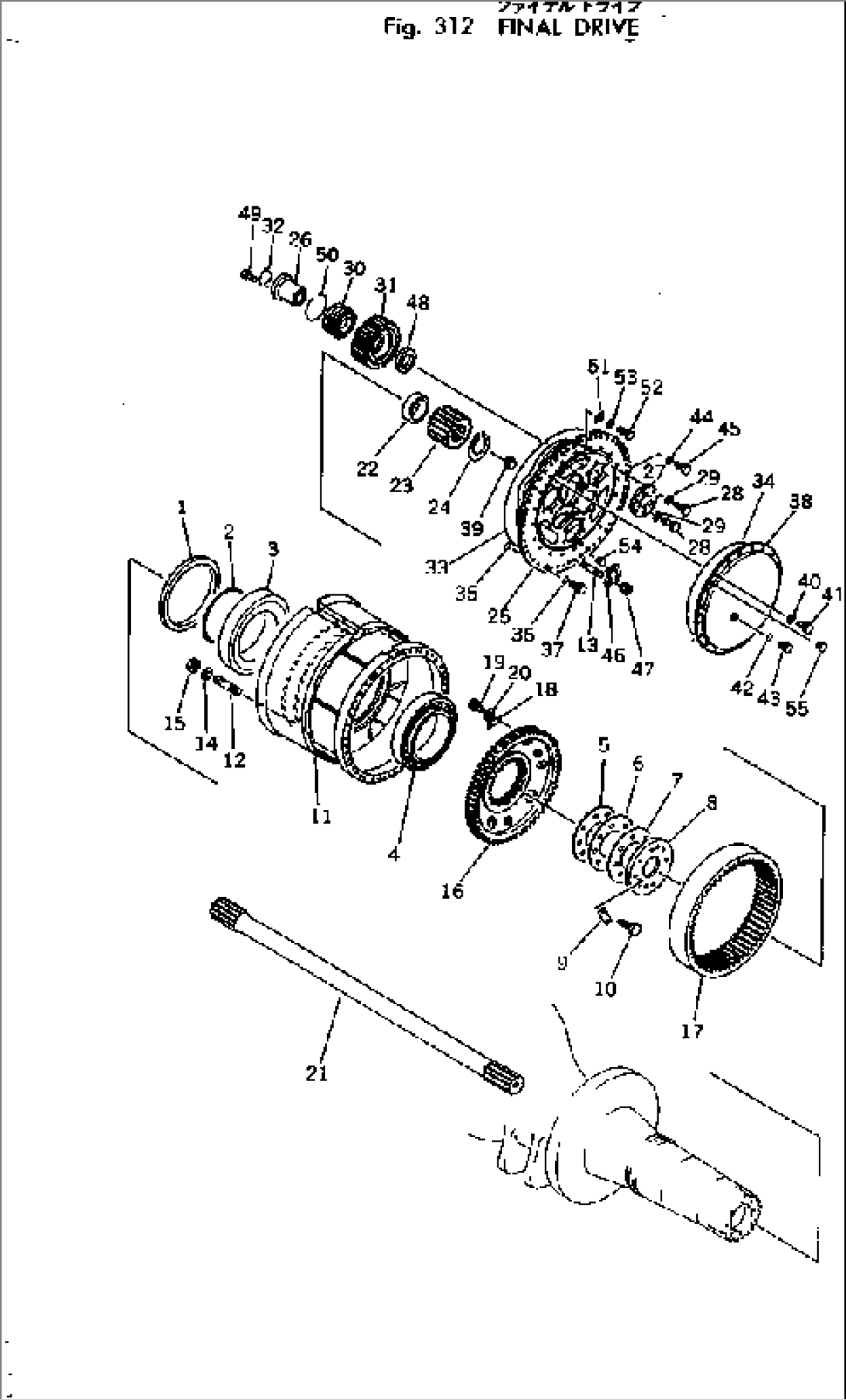

| 561-22-32000 | FINAL DRIVE ASS'Y | 1101- | ||
| 1 | 568-22-12143 | RETAINER | 1101- | |
| 2 | 07000-05320 | O-RING (KIT) | 1101- | |
| 3 | 568-22-12940 | BEARING,INNER | 1101- | |
| 4 | 568-22-12960 | BEARING,OUTER | 1101- | |
| 568-22-00110 | SHIM ASS'Y | 1101- | ||
| 5 | 568-22-12230 | SHIM¤ 0.2MM | 1101- | |
| 6 | 568-22-12240 | SHIM¤ 0.3MM | 1101- | |
| 7 | 568-22-12250 | SHIM¤ 1.0MM | 1101- | |
| 8 | 568-22-12211 | RETAINER | 1101- | |
| 9 | 568-22-12220 | LOCK (KIT) | 1101- | |
| 10 | 01010-62465 | BOLT | 1101- | |
| 11 | 561-22-32710 | HUB | 1101- | |
| 12 | 01124-62050 | STUD | 1101- | |
| 13 | 562-22-12730 | STUD | 1101- | |
| 14 | 01643-32060 | WASHER | 1101- | |
| 15 | 01580-12016 | NUT | 1101- | |
| 16 | 561-22-32310 | HUB | 1101- | |
| 17 | 562-22-12540 | GEAR | 1101- | |
| 18 | 562-22-12340 | HOLDER | 1101- | |
| 19 | 01010-31225 | BOLT | 1101- | |
| 20 | 01643-31232 | WASHER | 1101- | |
| 21 | 561-22-32410 | SHAFT | 1101- | |
| 22 | 568-22-12441 | SPACER | 1101- | |
| 23 | 561-22-32420 | GEAR | 1101- | |
| 24 | 04064-01030 | RING | 1101- | |
| 25 | 561-22-32610 | CARRIER | 1101- | |
| 26 | 562-22-12510 | SHAFT | 1101- | |
| 27 | 562-22-12560 | RETAINER | 1101- | |
| 28 | 01010-31250 | BOLT | 1101- | |
| 29 | 01643-31232 | WASHER | 1101- | |
| 30 | 562-22-12820 | BEARING | 1101- | |
| 31 | 562-22-12530 | GEAR | 1101- | |
| 32 | 562-22-12940 | PLATE | 1101- | |
| 33 | 562-22-12910 | O-RING (KIT) | 1101- | |
| 34 | 562-22-12920 | O-RING (KIT) | 1101- | |
| 35 | 07000-03030 | O-RING (KIT) | 1101- | |
| 36 | 07002-02434 | O-RING (KIT) | 1101- | |
| 37 | 07044-12412 | PLUG | 1101- | |
| 38 | 562-22-12620 | COVER | 1101- | |
| 39 | 562-22-12630 | BUTTON | 1101- | |
| 40 | 01643-31232 | WASHER | 1101- | |
| 41 | 01010-51240 | BOLT | 1101- | |
| 42 | 07002-03634 | O-RING (KIT) | 1101- | |
| 43 | 07044-13620 | PLUG | 1101- | |
| 44 | 01643-32460 | WASHER | 1101- | |
| 45 | 01010-62460 | BOLT | 1101- | |
| 46 | 562-22-12720 | CLAMP | 1101- | |
| 47 | 562-22-12740 | NUT | 1101- | |
| 48 | 562-22-12570 | SPACER | 1101- | |
| 49 | 01010-31220 | BOLT | 1101- | |
| 50 | 04071-00220 | RING | 1101- | |
| 51 | 561-22-32620 | PLATE | 1101- | |
| 52 | 01010-51220 | BOLT | 1101- | |
| 53 | 01643-31232 | WASHER | 1101- | |
| 54 | 07049-02430 | PLUG | 1101- | |
| 55 | 07049-01215 | PLUG | 1101- |
