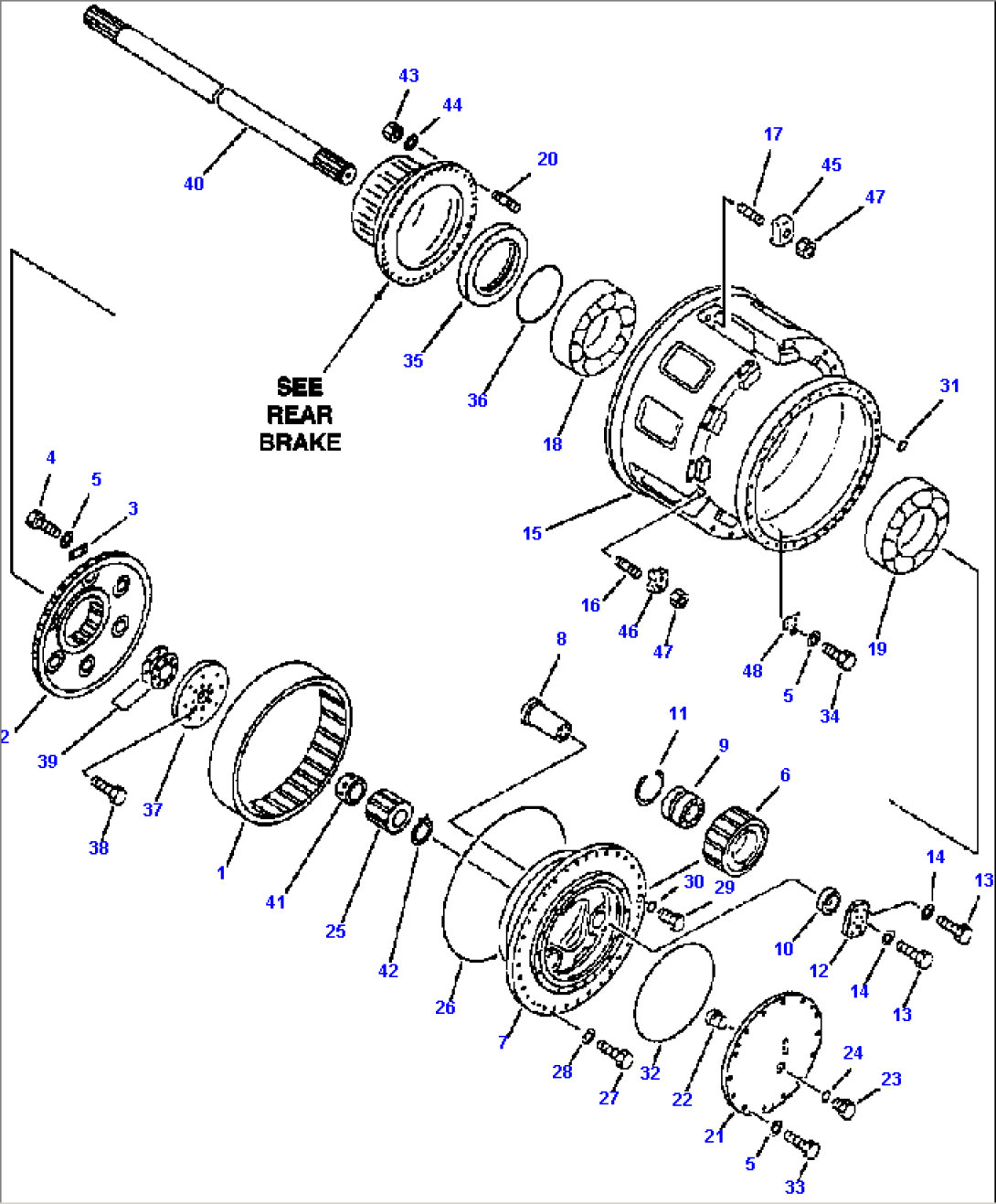

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-22-62540 | GEAR (2) | | |
| 1 | 427-22-12541 | GEAR (3)/(4) | | |
| 2 | 561-22-62310 | HUB (2) | | |
| 2 | 561-22-62311 | HUB (3)/(4) | | |
| 3 | 285-22-12341 | HOLDER | | |
| 4 | 01010-61225 | CAPSCREW | | |
| 5 | 01643-31232 | FLAT WASHER | | |
| 6 | 561-22-62531 | GEAR (2)/(3) | | |
| 6 | 561-22-62532 | GEAR (4) | | |
| 7 | 561-22-62610 | CARRIER | | |
| 8 | 561-22-62511 | SHAFT | | |
| 9 | 561-22-62521 | BEARING | | |
| 10 | 427-22-12570 | SPACER | | |
| 11 | 04071-00180 | RING, SNAP | | |
| 12 | 427-22-12560 | HOLDER | | |
| 13 | 01010-61660 | CAPSCREW | | |
| 14 | 01643-31645 | WASHER | | |
| 15 | 561-22-62713 | HUB | | |
| 16 | 561-22-62910 | STUD | | |
| 17 | 561-22-62822 | STUD | | |
| 18 | 568-22-12940 | BEARING (2)/(3) | | |
| 18 | 561-22-62970 | BEARING (4) | | |
| 19 | 568-22-12960 | BEARING (2)/(3) | | |
| 19 | 561-22-62980 | BEARING (4) | | |
| 20 | 01144-82050 | STUD | | |
| 21 | 561-22-62621 | COVER | | |
| 22 | 562-22-12630 | BUTTON | | |
| 23 | 07044-13620 | PLUG | | |
| 24 | 07002-13634 | O-RING | | |
| 25 | 561-22-62421 | GEAR | | |
| 26 | 562-22-12920 | O-RING | | |
| 27 | 01010-82460 | CAPSCREW | | |
| 28 | 01643-32460 | WASHER | | |
| 29 | 07044-12412 | PLUG | | |
| 30 | 07002-12434 | O-RING | | |
| 31 | 07000-13030 | O-RING (1) | | |
| 32 | 566-09-21110 | O-RING (1) | | |
| 33 | 01010-81235 | CAPSCREW | | |
| 33 | 01643-31232 | FLAT WASHER | | |
| 34 | 01010-81220 | CAPSCREW | | |
| 35 | 568-22-12143 | RETAINER | | |
| 36 | 07000-15320 | O-RING (1) | | |
| 37 | 561-22-62211 | RETAINER | | |
| 38 | 01010-62495 | CAPSCREW | | |
| 39 | 568-22-12230 | SHIM | | |
| 39 | 568-22-12240 | SHIM | | |
| 39 | 568-22-12250 | SHIM | | |
| 39 | 561-22-62260 | SHIM (4) | | |
| 40 | 561-22-62410 | SHAFT | | |
| 41 | 427-22-12430 | SPACER (2) | | |
| 41 | 568-22-12442 | SPACER (3)/(4) | | |
| 42 | 561-22-62810 | RING | | |
| 43 | 01580-12016 | NUT | | |
| 44 | 01643-32060 | WASHER | | |
| 45 | 561-22-62830 | CLAMP | | |
| 46 | 561-22-62841 | CLAMP | | |
| 47 | 582-27-11291 | NUT | | |
| 48 | 565-22-14660 | PLATE | | |
| NS|59 | | NOTE: NS = NOT SHOWN | | |
| NS|60 | 561-22-62920 | SHIM (2)/(3) (QTY.6 (4)) | | |
| NS|61 | 561-22-62940 | SHIM (2)/(3) (QTY.30 (4)) | | |
| NS|62 | 561-22-05070 | NOTE: (1) INCLUDED IN 561-22-05070 SERVICE FINAL DRIVE KIT. | | |
| NS|63 | | (2) EFFECTIVE THRU A10274. | | |
| NS|64 | | (3) EFFECTIVE WITH A10275 THRU A10300. | | |
| NS|65 | | (4) EFFECTIVE WITH A10301 & UP. | | |
| NS|66 | | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) | | |
