| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-27-00019 | FINAL DRIVE ASS'Y | 70526- | ||
| \0\20Y-27-00018 | FINAL DRIVE ASS'Y | 67093-70525 | ||
| \0\20Y-27-00016 | FINAL DRIVE ASS'Y | 61726-67092 | ||
| \1\20Y-27-00015 | FINAL DRIVE ASS'Y | 58019-61725 | ||

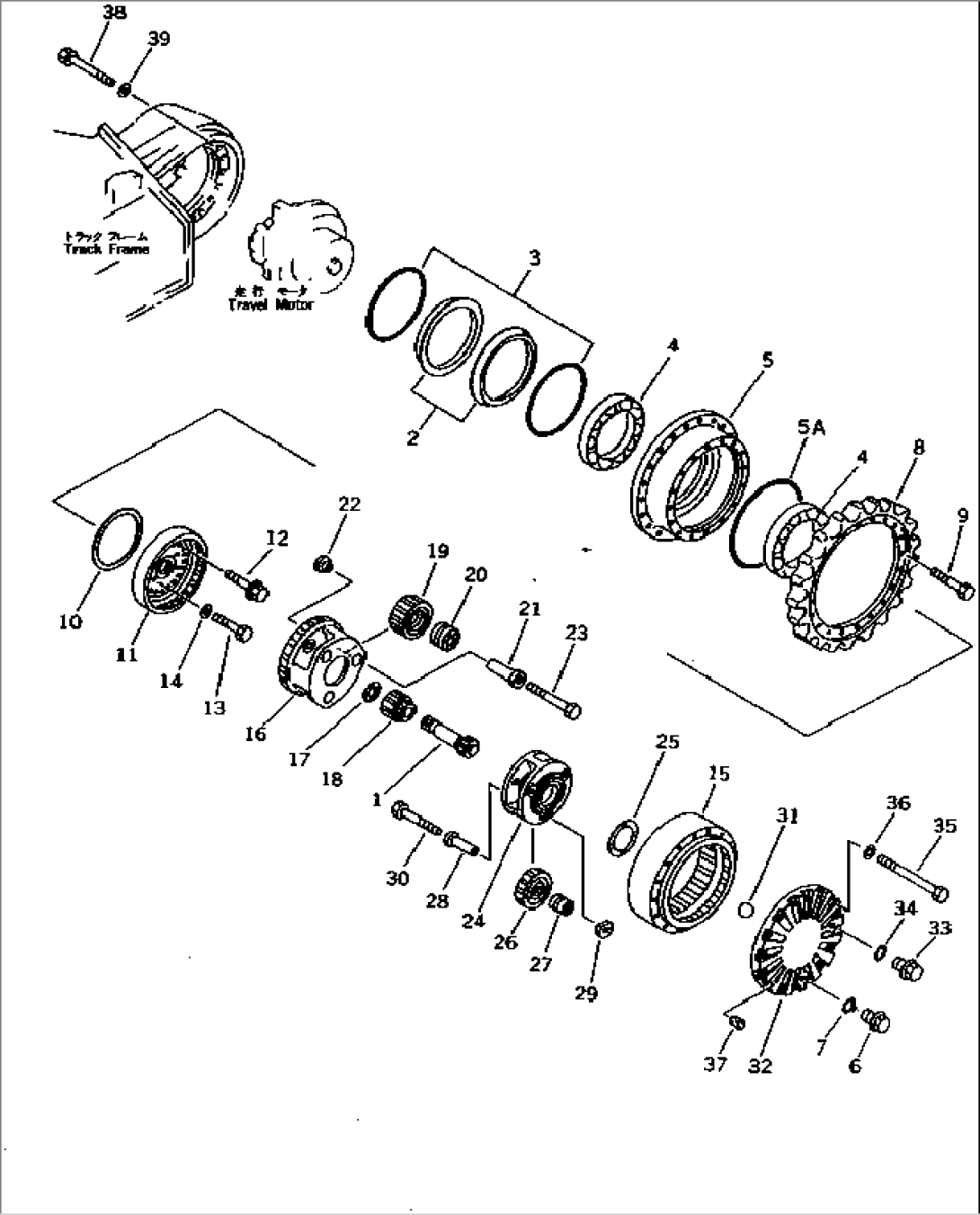

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3351AAND 6431 TO 6433. | ||||
| 1 | 20Y-27-13130 | SHAFT | 45001- | |
| 150-27-00029 | FLOATING SEAL ASS'Y | 70526- | ||
| \0\150-27-00028 | FLOATING SEAL ASS'Y | 51026-70525 | ||
| 2 | 150-27-00263 | SEAL RING ASS'Y | 70526- | |
| \0\150-27-00262 | SEAL RING ASS'Y | 45001-70525 | ||
| \6\ | RING | 70526- | ||
| \6\ | RING | 45001-70525 | ||
| 3 | 144-873-0310 | O-RING ASS'Y | 51026- | |
| \6\ | O-RING | 51026- | ||
| 4 | 20Y-27-11570 | BEARING | 45001- | |
| 5 | 20Y-27-13120 | HUB | 45001- | |
| 5A | 20Y-27-13290 | O-RING | 45001- | |
| 6 | 07044-12412 | PLUG | 45001- | |
| 7 | 07002-02434 | O-RING | 45001- | |
| 8 | 20Y-27-11581 | SPROCKET | 45001- | |
| 9 | 20Y-27-11560 | BOLT | 45001- | |
| 10 | 20Y-27-00031 | SPACER KIT | 45007- | |
| \6\ | SPACER¤ 4.70MM | 45007- | ||
| \6\ | SPACER¤ 4.75MM | 45001- | ||
| \6\ | SPACER¤ 4.80MM | 45001- | ||
| \6\ | SPACER¤ 4.85MM | 45001- | ||
| \6\ | SPACER¤ 4.90MM | 45001- | ||
| \6\ | SPACER¤ 4.95MM | 45001- | ||
| \6\ | SPACER¤ 5.00MM | 45001- | ||
| \6\ | SPACER¤ 5.05MM | 45001- | ||
| \6\ | SPACER¤ 5.10MM | 45001- | ||
| 11 | 20Y-27-13270 | RETAINER | 45001- | |
| 12 | 20Y-27-11180 | BOLT | 45001- | |
| 13 | 01010-51645 | BOLT | 45007- | |
| 14 | 01643-31645 | WASHER | 45007- | |
| 15 | 20Y-27-13190 | GEAR | 45001- | |
| 16 | 20Y-27-13230 | CARRIER | 45001- | |
| 17 | 20Y-27-13310 | WASHER,THRUST | 58019- | |
| 18 | 20Y-27-13210 | GEAR | 45001- | |
| 19 | 20Y-27-13220 | GEAR | 45001- | |
| 20 | 20Y-27-13260 | BEARING | 45001- | |
| 21 | 20Y-27-13240 | PIN | 45001- | |
| 22 | 20Y-27-11240 | HOLDER | 45001- | |
| 23 | 01011-51200 | BOLT | 45001- | |
| 24 | 20Y-27-13150 | CARRIER | 45001- | |
| 25 | 20Y-27-11250 | SPACER | 58019- | |
| 26 | 20Y-27-13140 | GEAR | 45001- | |
| 27 | 20Y-27-13180 | BEARING | 45001- | |
| 28 | 20Y-27-13160 | PIN | 45001- | |
| 29 | 20Y-27-13170 | HOLDER | 45001- | |
| 30 | 01010-51055 | BOLT | 45001- | |
| 31 | 04260-01905 | BALL | 45001- | |
| 32 | 20Y-27-13110 | COVER | 45001- | |
| 33 | 07044-12412 | PLUG | 45001- | |
| 34 | 07002-02434 | O-RING | 45001- | |
| 35 | 20Y-27-13281 | BOLT | 61726- | |
| \0\20Y-27-13280 | BOLT | 45001-61725 | ||
| 36 | 01643-31645 | WASHER | 45001- | |
| 37 | 07049-01215 | PLUG | 45001- | |
| 38 | 01010-51670 | BOLT | 45001- | |
| 39 | 01643-31645 | WASHER | 45001- |
