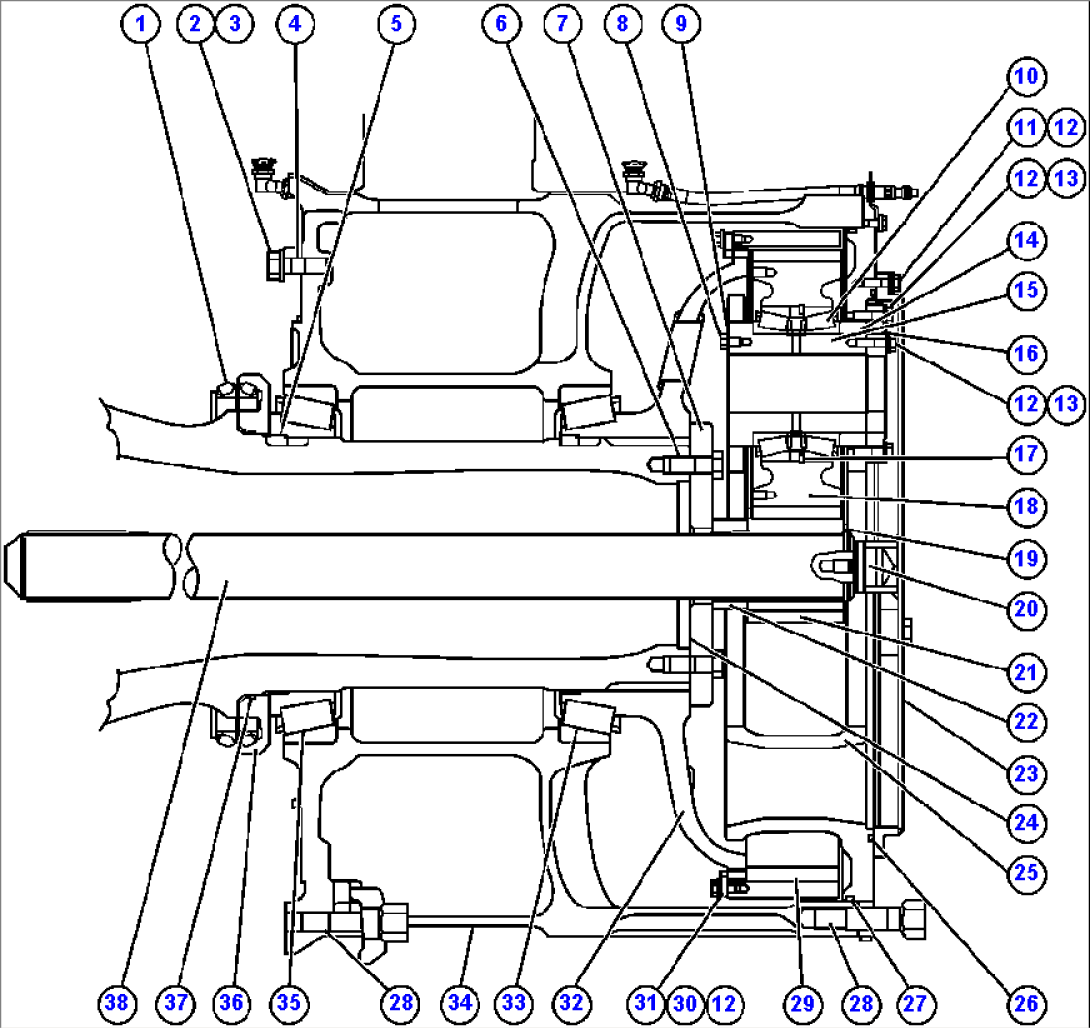

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-33-00200 | SEAL ASSEMBLY | ||
| 1 | 568-33-11364 | SEAL | ||
| 1 | 428-33-11650 | O-RING | ||
| 2 | 01643-32460 | WASHER | ||
| 3 | 01580-12419 | NUT | ||
| 4 | 01144-82460 | STUD | ||
| 5 | 562-22-32290 | PIN | ||
| 6 | 01010-62470 | BOLT | ||
| 7 | 562-22-32210 | RETAINER | ||
| 8 | 01010-31220 | BOLT | ||
| 9 | 562-22-12940 | PLATE | ||
| 10 | 562-22-32830 | BEARING (1) | ||
| 10 | 562-22-32821 | BEARING (2) | ||
| 11 | 01010-51240 | BOLT | ||
| 12 | 01643-31232 | WASHER | ||
| 13 | 01010-31250 | BOLT | ||
| 14 | 562-22-32570 | SPACER | ||
| 15 | 562-22-32510 | SHAFT (1) | ||
| 15 | 562-22-32511 | SHAFT (2) | ||
| 16 | 562-22-12560 | RETAINER | ||
| 17 | 04071-00230 | SNAP RING | ||
| 18 | 562-22-32530 | GEAR, PLANETARY | ||
| 19 | 04070-00110 | RING | ||
| 20 | 562-22-12630 | BUTTON | ||
| 21 | 562-22-12420 | GEAR, SUN | ||
| 22 | 562-22-12432 | SPACER | ||
| 23 | 562-22-32620 | COVER | ||
| 24 | 562-22-00120 | SHIM ASSEMBLY | ||
| 24 | 562-22-32230 | SHIM - 1MM (.0254") | ||
| 24 | 562-22-32240 | SHIM - 0.3MM (.0076") | ||
| 24 | 562-22-32250 | SHIM - 0.2MM (.005") | ||
| 25 | 562-22-32611 | CARRIER, PLANETARY | ||
| 26 | 562-22-12920 | O-RING | ||
| 27 | 562-22-12910 | O-RING | ||
| 28 | 561-22-62910 | STUD | ||
| 29 | 562-22-32890 | GEAR, RING | ||
| 30 | 01010-31225 | BOLT | ||
| 31 | 562-22-12341 | HOLDER | ||
| 32 | 562-22-32310 | HUB | ||
| 33 | 562-22-32840 | BEARING | ||
| 34 | 562-22-32711 | WHEEL HUB, REAR | ||
| 35 | 562-22-32830 | BEARING | ||
| 36 | 562-22-32120 | RETAINER | ||
| 37 | 07000-05395 | O-RING | ||
| 38 | 562-22-12412 | SHAFT, SUN | ||
| NS|46 | NOTE: (1) EFFECTIVE WITH AFP49-F, G, & H. | |||
| NS|47 | (2) EFFECTIVE WITH AFP49-J ONLY. |
