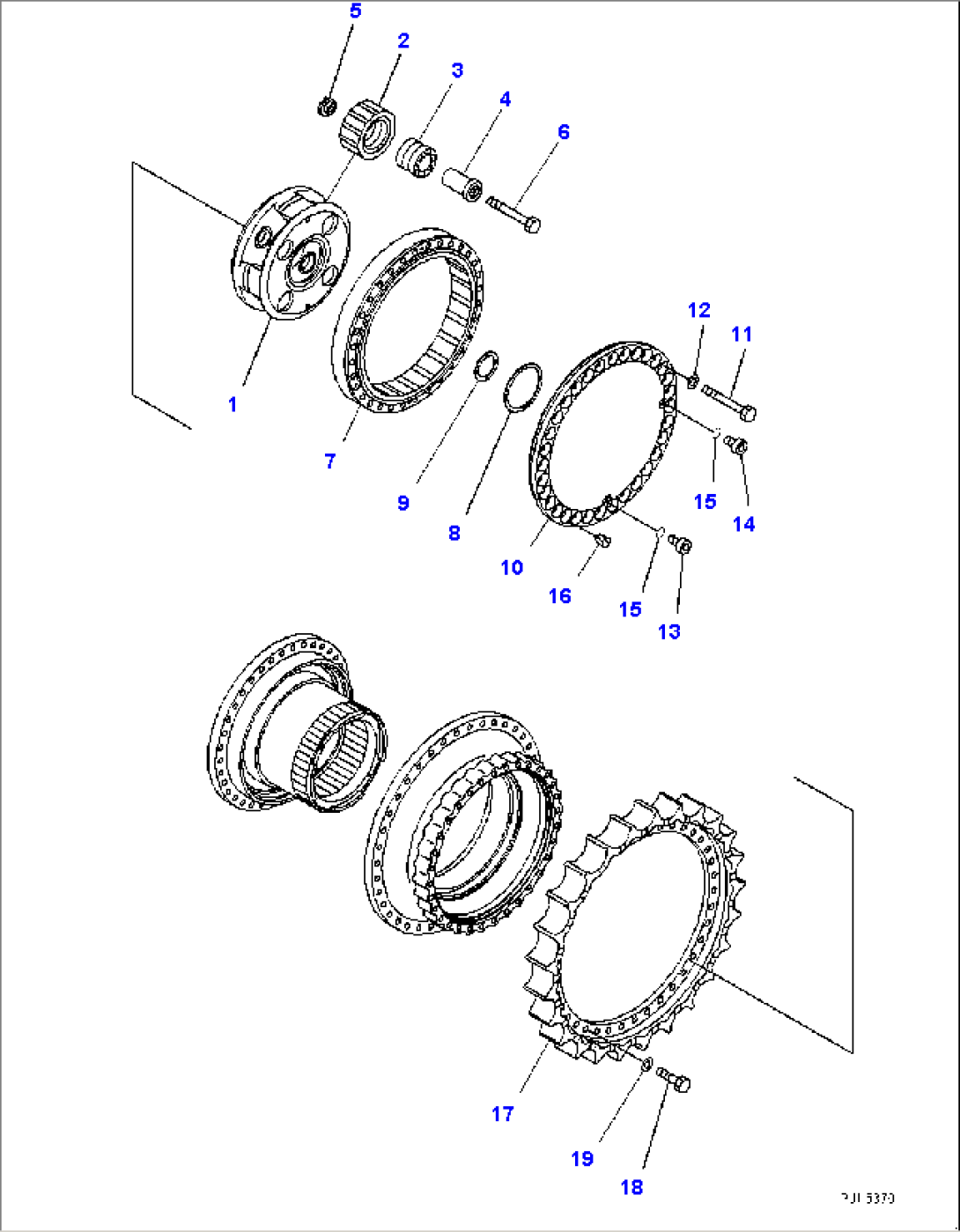

| Item | Part No. | Part Name | Qty | Serial No. |
| 21N-27-00130 | Final Drive Assembly | 35201- | ||
| 21N-27-00140 | Final Drive Assembly | 35201- | ||
| 1 | 209-27-71190 | Carrier | 35201- | |
| 2 | 21N-27-31250 | Gear | 35201- | |
| 3 | 20G-26-11240 | Bearing | 35201- | |
| 4 | 20Y-27-21240 | Washer, Thrust | 35201- | |
| 5 | 209-27-71310 | Pin | 35201- | |
| 6 | 20Y-27-21280 | Pin | 35201- | |
| 7 | 21N-27-31260 | Gear, 68 Teeth | 35201- | |
| 8 | 209-27-71410 | Spacer | 35201- | |
| 9 | 209-27-71141 | Gear | 35201- | |
| 10 | 209-27-71350 | Plate | 35201- | |
| 11 | 208-27-61350 | Button | 35201- | |
| 12 | 21N-27-31143 | Carrier | 35201- | |
| 13 | 209-27-71261 | Gear | 35201- | |
| 14 | 207-27-61230 | Bearing | 35201- | |
| 15 | 20Y-27-21250 | Washer, Thrust | 35201- | |
| 16 | 209-27-71480 | Pin | 35201- | |
| 17 | 20Y-27-21290 | Pin | 35201- | |
| 18 | 209-27-71390 | Gear | 35201- | |
| 19 | 209-27-71330 | Spacer | 35201- | |
| 20 | 21N-27-31110 | Gear | 35201- |
