| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-27-00310 | FINAL DRIVE ASS'Y,L.H. | 67001- | ||

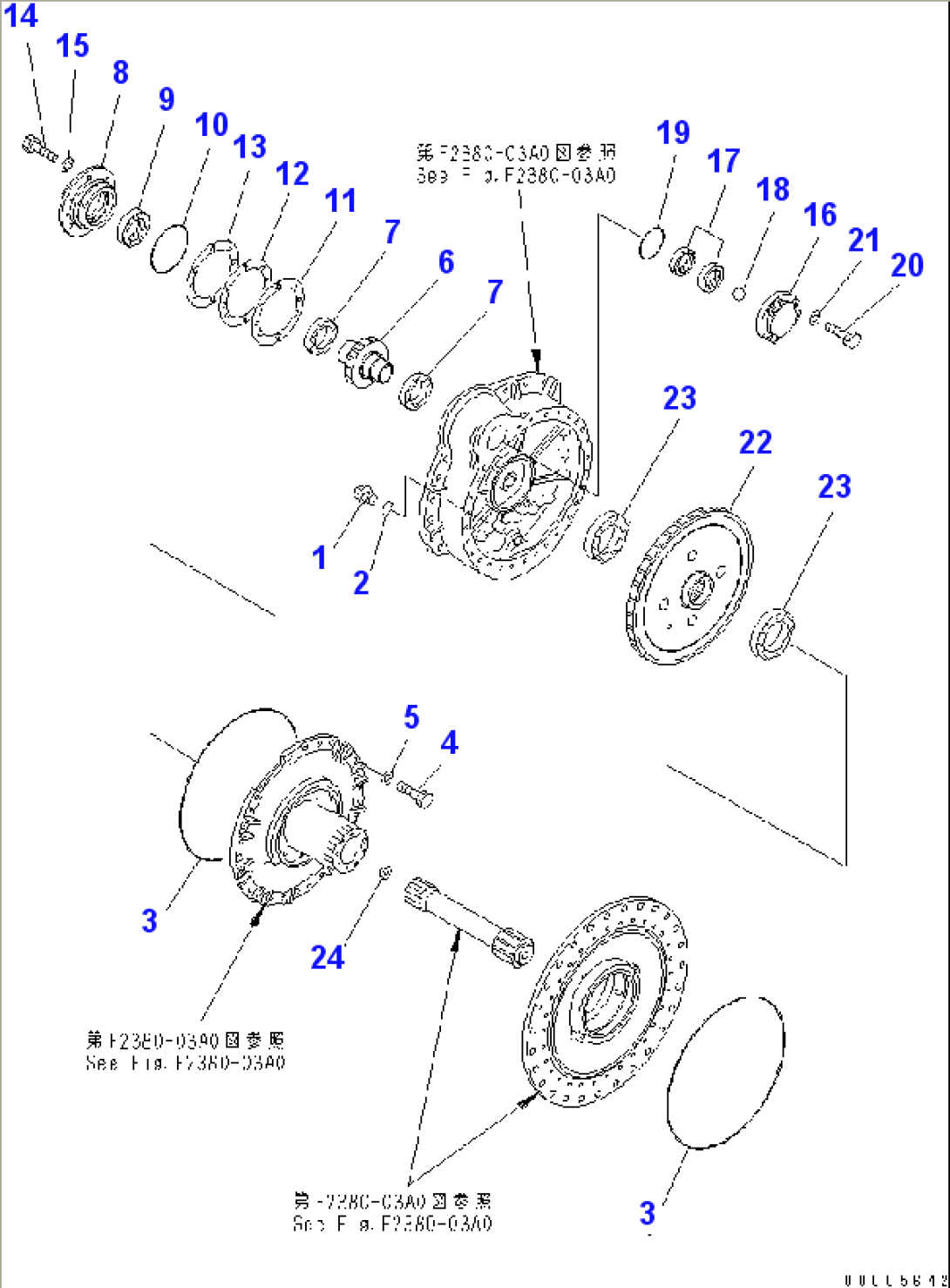

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A0 TO 03A0. | ||||
| 1 | 07044-13620 | PLUG | 67001- | |
| 2 | 07002-03634 | O-RING | 67001- | |
| 3 | 14X-27-11170 | O-RING | 67001- | |
| 4 | 01010-81645 | BOLT | 67001- | |
| 5 | 01643-31645 | WASHER | 67001- | |
| 6 | 14X-27-31210 | PINION | 67001- | |
| 7 | 14X-27-11231 | BEARING | 67001- | |
| 8 | 14X-27-11220 | CAGE | 67001- | |
| 9 | 07013-10080 | SEAL | 67001- | |
| 10 | 07000-05165 | O-RING | 67001- | |
| 14X-27-05010 | SHIM KIT | 67001- | ||
| 11 | \6\ | SHIM, 0.2MM | 67001- | |
| 12 | \6\ | SHIM, 0.3MM | 67001- | |
| 13 | \6\ | SHIM, 1.0MM | 67001- | |
| 14 | 01010-81235 | BOLT | 67001- | |
| 15 | 01643-31232 | WASHER | 67001- | |
| 16 | 14X-27-11243 | COVER | 67001- | |
| 17 | 209-03-12270 | SEAL | 67001- | |
| 18 | 04260-01905 | BALL | 67001- | |
| 19 | 07000-02110 | O-RING | 67001- | |
| 20 | 01010-81245 | BOLT | 67001- | |
| 21 | 01643-31232 | WASHER | 67001- | |
| 22 | 14X-27-11312 | GEAR | 67001- | |
| 23 | 06040-06024 | BEARING | 67001- | |
| 24 | 14X-27-11420 | COLLAR | 67001- |
