| Item | Part No. | Part Name | Qty | Serial No. |
| (154-27-00353) | FINAL DRIVE ASS'Y | 10653- | ||
| (154-27-00352) | FINAL DRIVE ASS'Y | 10616- | ||
| (154-27-00351) | FINAL DRIVE ASS'Y | 10001-10615 | ||

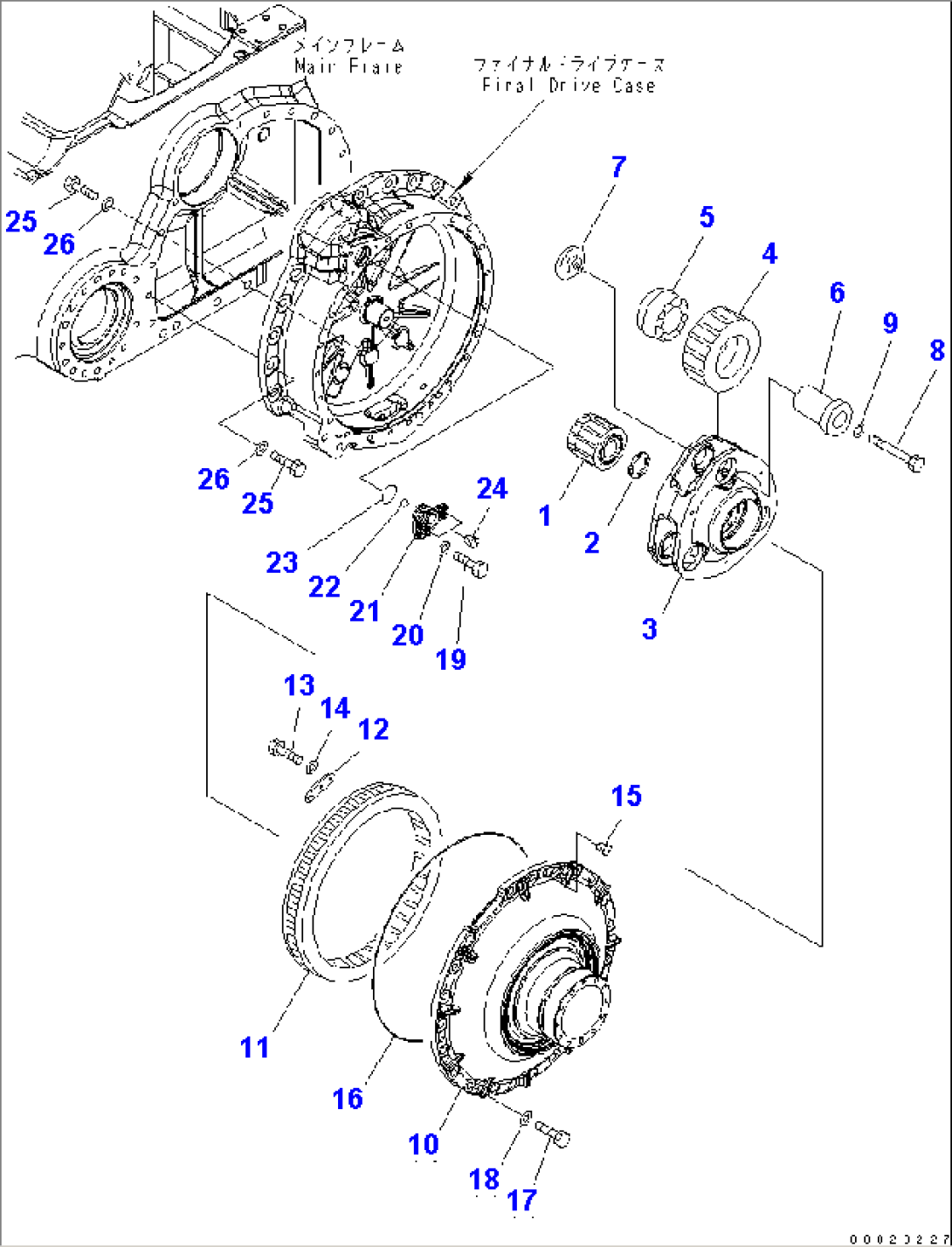

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A0 T0 F2380-03A0. | ||||
| 1 | 154-27-72241 | GEAR | 10011- | |
| 1 | 154-27-72240 | GEAR | 10001-10010 | |
| 2 | 207-27-52270 | SPACER | 10001- | |
| 3 | 154-27-72191 | CARRIER | 10001- | |
| 4 | 154-27-72250 | GEAR | 10001- | |
| 5 | 154-09-71130 | BEARING | 10001- | |
| 6 | 154-27-72310 | SHAFT | 10001- | |
| 7 | 154-27-72320 | HOLDER | 10001- | |
| 8 | 01011-81620 | BOLT | 10001- | |
| 9 | 01643-31645 | WASHER | 10001- | |
| 10 | 154-27-72172 | COVER | 10616- | |
| 10 | 154-27-72171 | COVER | 10001-10615 | |
| 11 | 154-27-72260 | GEAR | 10001- | |
| 12 | 17M-27-21780 | PLATE | 10001- | |
| 13 | 01010-81235 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 07049-02025 | PLUG | 10001- | |
| 16 | 198-09-31630 | O-RING | 10001- | |
| 17 | 01010-82055 | BOLT | 10001- | |
| 18 | 01643-32060 | WASHER | 10001- | |
| 19 | 01010-81235 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- | |
| 21 | 154-27-71420 | COVER | 10001- | |
| 22 | 04260-01905 | BALL | 10001- | |
| 23 | 07000-12060 | O-RING | 10001- | |
| 24 | 07049-01215 | PLUG | 10001- | |
| 25 | 01010-82465 | BOLT | 10001- | |
| 26 | 01643-32460 | WASHER | 10001- |
