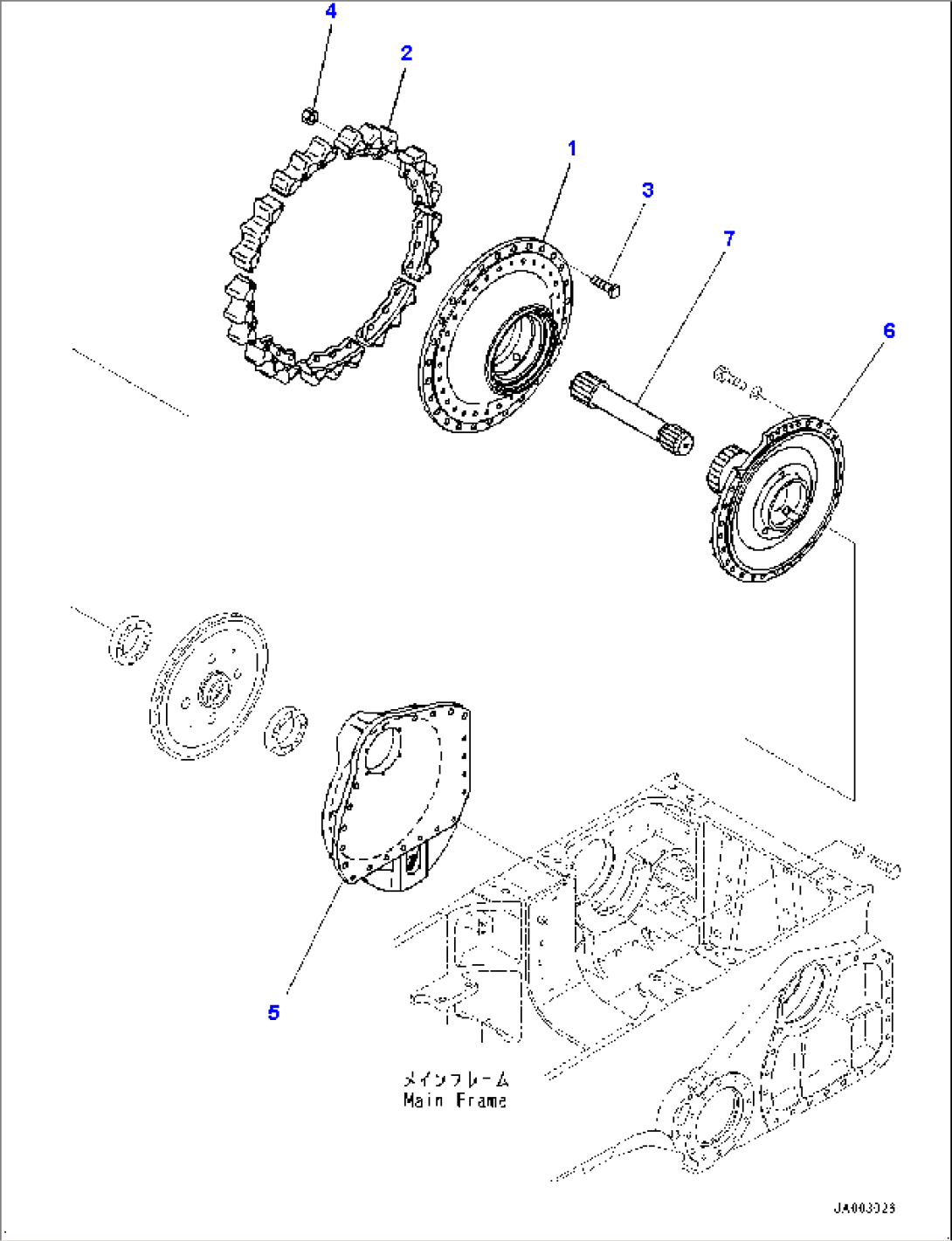

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-27-00320 | Final Drive Assembly | 10001- | ||
| 14X-27-11502 | Carrier Assembly | 10001-10009 | ||
| 1 | Carrier | 10001-10009 | ||
| 2 | 14X-27-11552 | Plate | 10001-10009 | |
| 3 | 01010-82055 | Bolt | 10001-10009 | |
| 4 | 01643-32060 | Washer | 10001-10009 | |
| 5 | 14X-27-11522 | Gear | 10001-10009 | |
| 6 | 14X-27-11531 | Bearing | 10001-10009 | |
| 7 | 14X-27-11542 | Shaft | 10001-10009 | |
| 8 | 14X-27-11560 | Lock | 10001-10009 | |
| 9 | 01010-81235 | Bolt | 10001-10009 | |
| 10 | 01643-31232 | Washer | 10001-10009 | |
| 11 | 14X-27-11612 | Gear | 10001-10009 | |
| 12 | 14X-27-11622 | Hub | 10001-10009 | |
| 13 | 14X-27-11640 | Ring, Snap | 10001-10009 | |
| 14 | 14X-27-11633 | Holder | 10001-10009 | |
| 15 | 01011-61600 | Bolt | 10001-10009 | |
| 16 | 195-27-11140 | Pin, Dowel | 10001-10009 | |
| 17 | 07041-13612 | Plug | 10001-10009 | |
| 18 | 07002-03634 | O-ring | 10001-10009 | |
| 19 | 01010-81645 | Bolt | 10001-10009 | |
| 20 | 01643-31645 | Washer | 10001-10009 | |
| 21 | 14X-27-11431 | Cover | 10001-10009 | |
| 22 | 07000-02115 | O-ring | 10001-10009 | |
| 23 | 01010-81235 | Bolt | 10001-10009 | |
| 24 | 01643-31232 | Washer | 10001-10009 | |
| 25 | 14X-27-11721 | Bearing | 10001-10009 | |
| 26 | 14X-27-11751 | Collar | 10001-10009 | |
| 26 | 14X-27-00101 | Floating Seal Assembly | 10001-10009 | |
| 27 | Seal | 10001-10009 | ||
| 28 | O-ring | 10001-10009 | ||
| 29 | 07049-02025 | Plug | 10001-10009 | |
| 30 | 07049-01620 | Plug | 10001-10009 |
