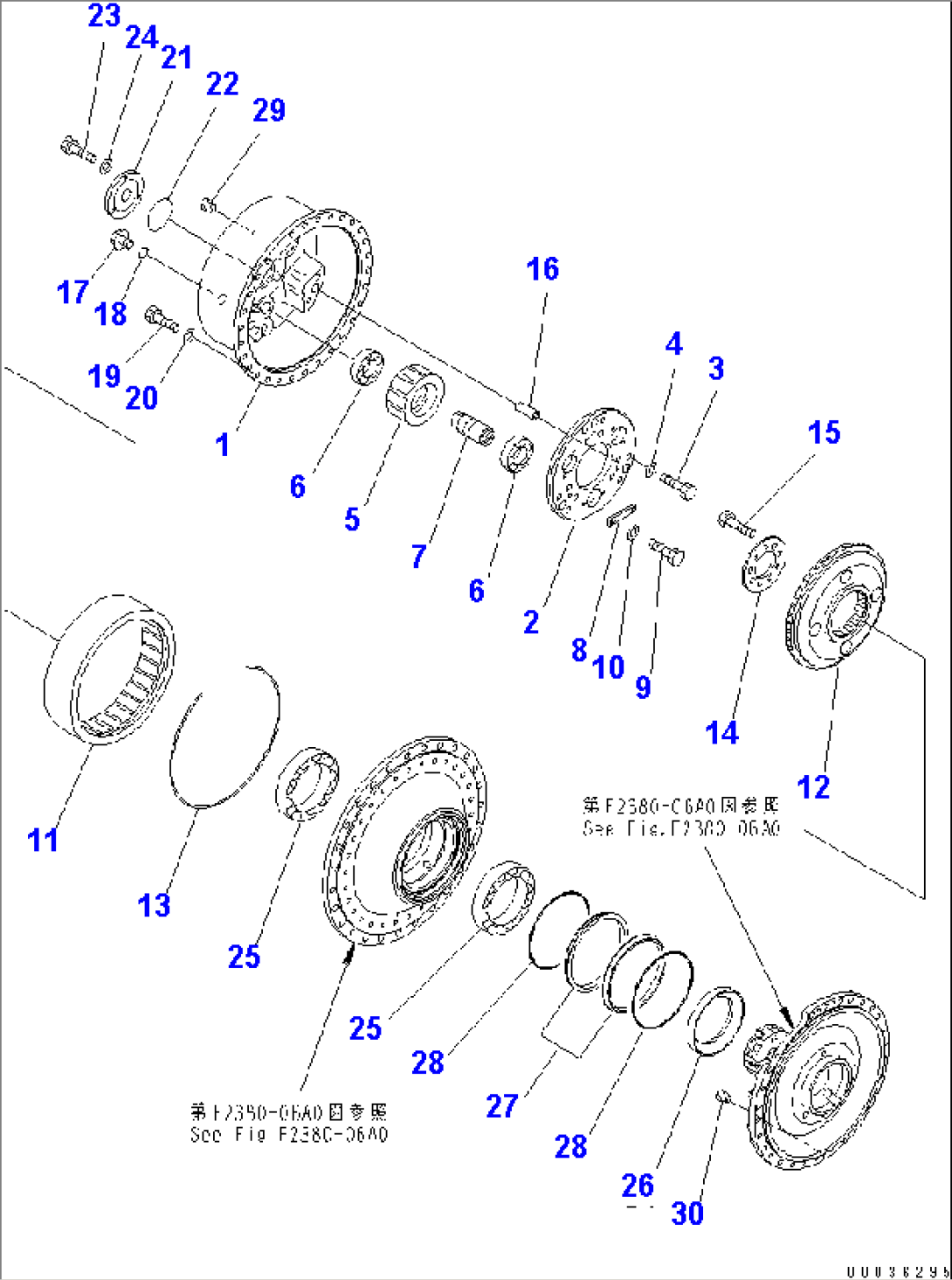

| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-27-00320) | FINAL DRIVE ASS'Y | 67001- | ||
| (14Y-27-00320) | FINAL DRIVE ASS'Y,(FOR WIDE GUAGE) | 67001- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-04A0 T0 F2380-06A0. | ||||
| (14X-916-0320) | FINAL DRIVE ASS'Y | 68027- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A0 TO 06A3. | ||||
| 14X-27-11502 | CARRIER ASS'Y | 67001- | ||
| 1 | 14X-27-11512 | CARRIER | 67001- | |
| 2 | 14X-27-11552 | PLATE | 67001- | |
| 3 | 01010-82055 | BOLT | 67001- | |
| 4 | 01643-32060 | WASHER | 67001- | |
| 5 | 14X-27-11522 | GEAR | 67001- | |
| 6 | 14X-27-11531 | BEARING | 67001- | |
| 7 | 14X-27-11542 | SHAFT | 67001- | |
| 8 | 14X-27-11560 | LOCK | 67001- | |
| 9 | 01010-81235 | BOLT | 67001- | |
| 10 | 01643-31232 | WASHER | 67001- | |
| 11 | 14X-27-11612 | GEAR | 67001- | |
| 12 | 14X-27-11622 | HUB | 67001- | |
| 13 | 14X-27-11640 | RING | 67001- | |
| 14 | 14X-27-11633 | HOLDER | 67001- | |
| 15 | 01011-61600 | BOLT | 67001- | |
| 16 | 195-27-11140 | PIN | 67001- | |
| 17 | 07041-13612 | PLUG | 67001- | |
| 18 | 07002-03634 | O-RING | 67001- | |
| 19 | 01010-81645 | BOLT | 67001- | |
| 20 | 01643-31645 | WASHER | 67001- | |
| 21 | 14X-27-11431 | COVER | 67001- | |
| 22 | 07000-02115 | O-RING | 67001- | |
| 23 | 01010-81235 | BOLT | 67001- | |
| 24 | 01643-31232 | WASHER | 67001- | |
| 25 | 14X-27-11721 | BEARING | 67001- | |
| 26 | 14X-27-11751 | COLLAR | 67001- | |
| 14X-27-00101 | FLOATING SEAL ASS'Y | 67001- | ||
| 27 | \6\ | SEAL | 67001- | |
| 28 | \6\ | O-RING | 67001- | |
| 29 | 07049-02025 | PLUG | 67001- | |
| 30 | 07049-01620 | PLUG | 67001- |
