| Item | Part No. | Part Name | Qty | Serial No. |

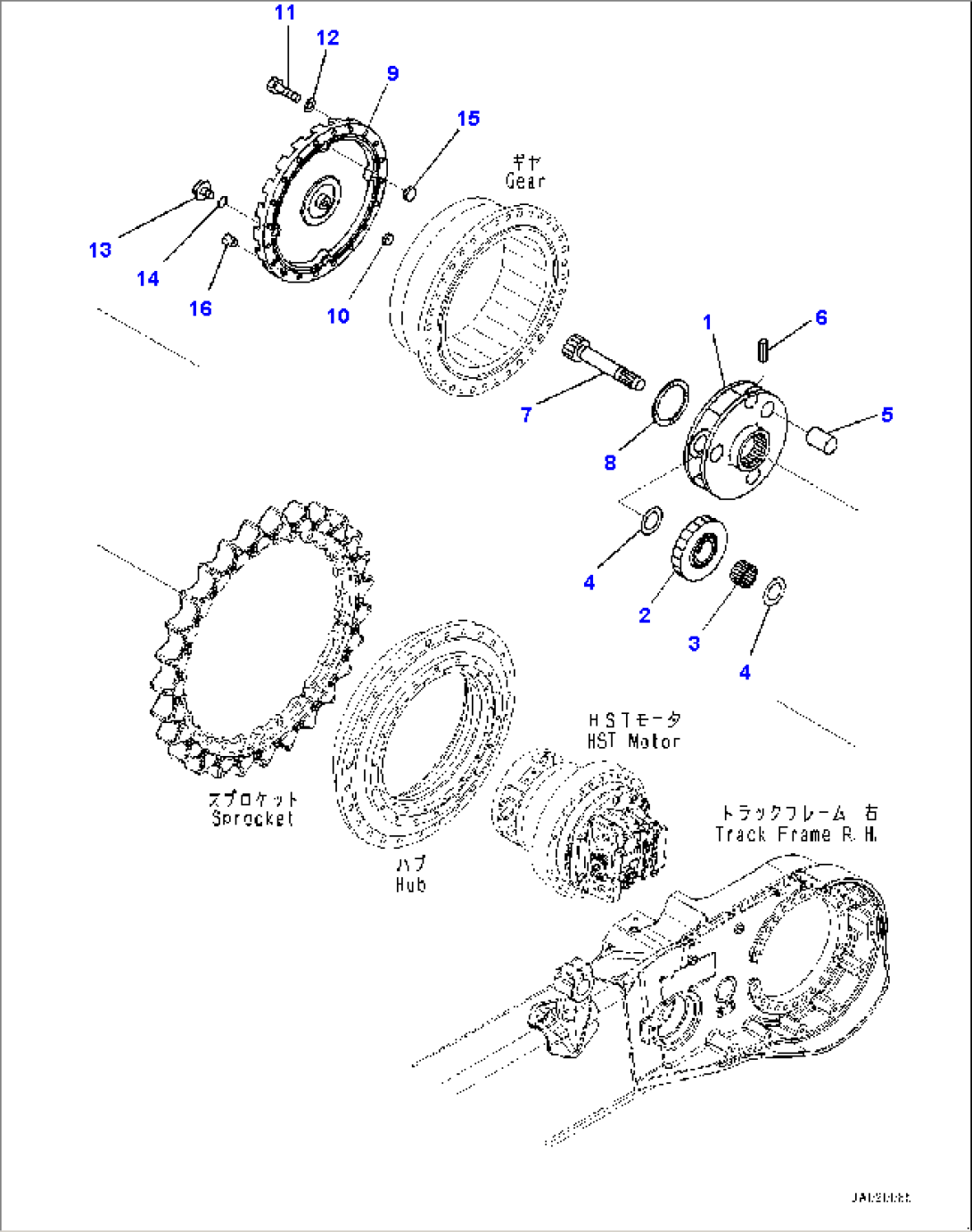

| 13Y-27-10201 | Final Drive Assembly | 40001- | ||
| 1 | 13Y-27-11210 | Carrier | 40001- | |
| 2 | 13Y-27-11130 | Gear | 40001- | |
| 3 | 13Y-27-11330 | Bearing | 40001- | |
| 4 | 20Y-27-21250 | Washer, Thrust | 40001- | |
| 5 | 21M-27-11240 | Pin | 40001- | |
| 6 | 20Y-27-21280 | Pin | 40001- | |
| 7 | 13Y-27-11120 | Shaft | 40001- | |
| 8 | 20Y-27-11250 | Spacer | 40001- | |
| 9 | 13Y-27-11421 | Cover | 40001- | |
| 10 | 04260-01905 | Ball | 40001- | |
| 11 | 01010-61440 | Bolt | 40001- | |
| 12 | 01643-31445 | Washer, Flat | 40001- | |
| 13 | 07044-12412 | Plug | 40001- | |
| 14 | 07002-12434 | O-ring | 40001- | |
| 15 | 11Y-27-11450 | Magnet | 40001- | |
| 16 | 07049-01215 | Plug | 40001- |
