| Item | Part No. | Part Name | Qty | Serial No. |
| 23A-22-01031 | FINAL DRIVE ASS'Y | .-.. | ||

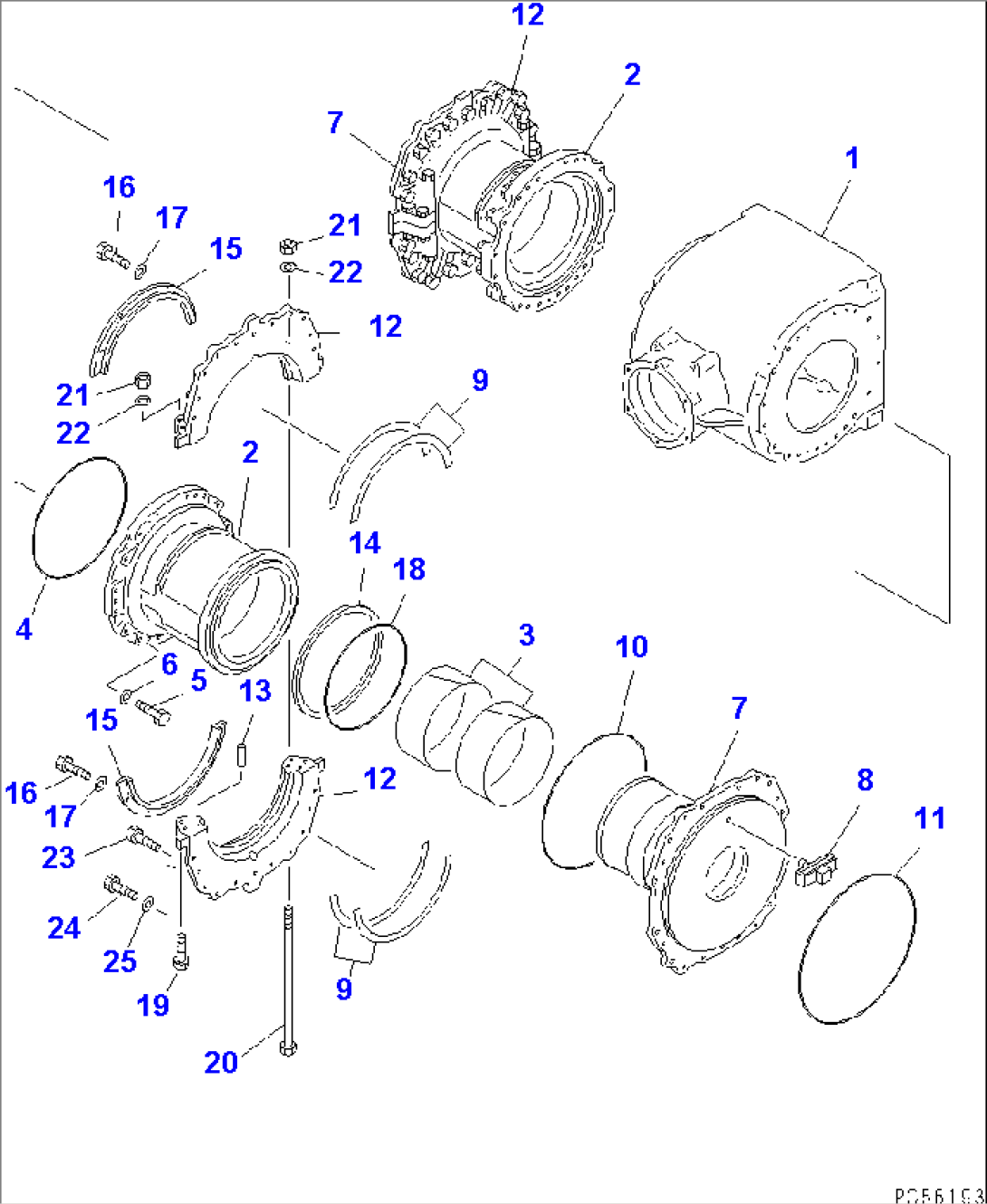

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2631A TO 2637. | ||||
| 1 | 23B-22-11810 | CASE | 1001-@ | |
| 2 | 23B-22-11120 | CASE | 1001-.. | |
| 3 | 238-22-11890 | BUSHING | 1001-@ | |
| 4 | 07000-15315 | O-RING | 1001-@ | |
| 5 | 01010-51660 | BOLT | 1001-@ | |
| 6 | 01643-31645 | WASHER | 1001-@ | |
| 7 | 23B-22-11130 | FLANGE | 1001-@ | |
| 8 | 23A-22-11510 | TUBE | 1001-@ | |
| 9 | 23B-22-11350 | WASHER | 1001-@ | |
| 10 | 23B-22-11380 | O-RING | 1001-@ | |
| 11 | 07000-15370 | O-RING | 1001-@ | |
| 23B-22-11301 | CAGE ASS'Y | .-.. | ||
| 12 | \6\ | CAGE | .-.. | |
| 13 | \6\ | PIN,DOWEL | 1001-@ | |
| 14 | 07001-06245 | RING,BACK-UP | .-.. | |
| 15 | 23B-22-11370 | CAP | .-.. | |
| 16 | 01010-50822 | BOLT | .-.. | |
| 17 | 01643-30823 | WASHER | .-.. | |
| 18 | 23B-22-11150 | O-RING | 1001-.. | |
| 19 | 01010-51285 | BOLT | 1001-@ | |
| 20 | 23B-22-11820 | BOLT | 1001-.. | |
| 21 | 01580-11210 | NUT | 1001-@ | |
| 22 | 01643-31232 | WASHER | 1001-.. | |
| 23 | 01010-51220 | BOLT | 1001-@ | |
| 24 | 01010-51665 | BOLT | 1001-@ | |
| 25 | 01643-31645 | WASHER | 1001-@ |
