| Item | Part No. | Part Name | Qty | Serial No. |
| 23A-22-01211 | FINAL DRIVE ASS'Y | 1713- | ||
| \0\23A-22-01210 | FINAL DRIVE ASS'Y | 1701-1712 | ||

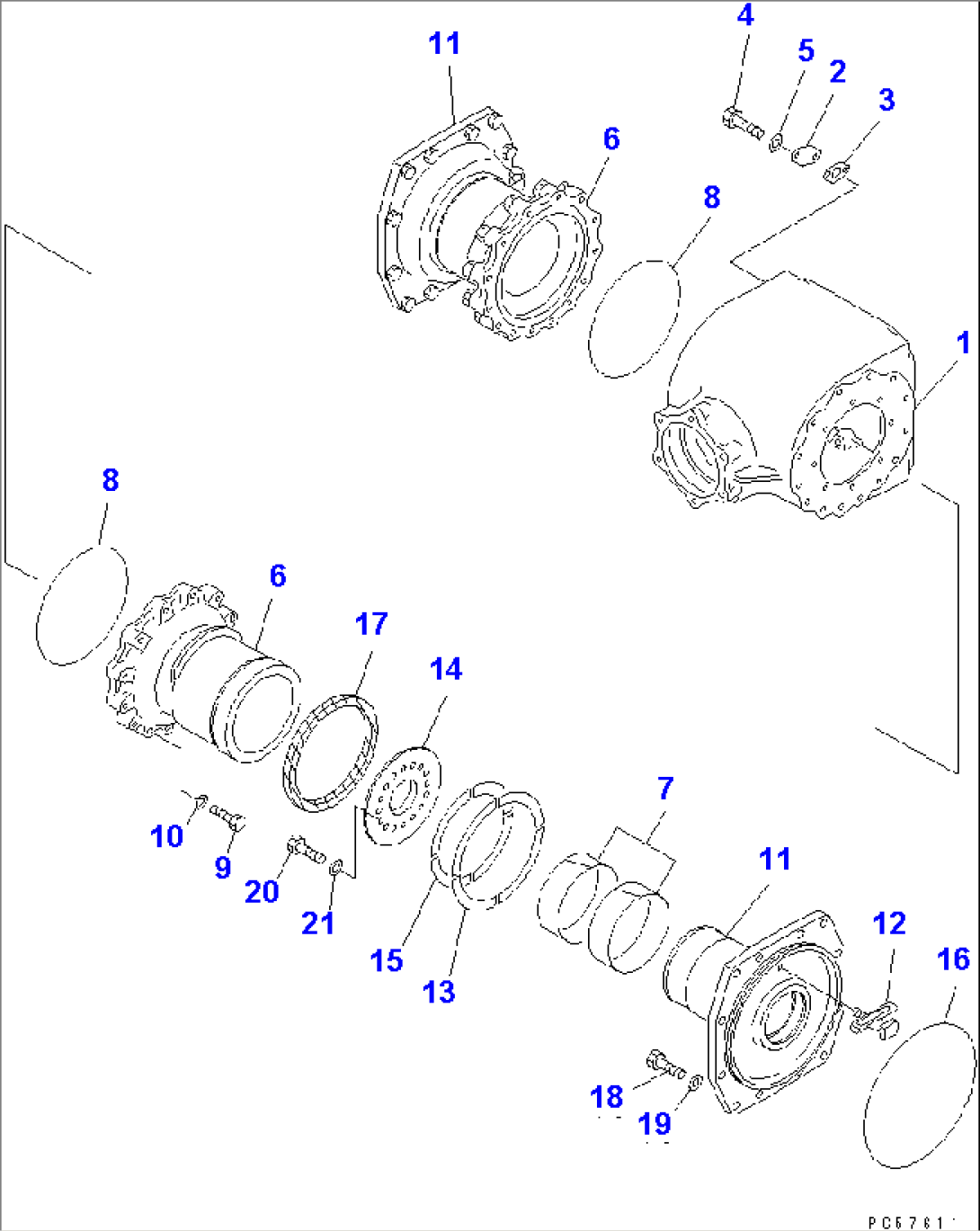

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 TO 2607. | ||||
| 1 | 23B-22-11810 | CASE | 1001- | |
| 2 | 23A-22-11570 | PLATE | 1001- | |
| 3 | 23A-22-11651 | GASKET (K7) | 1001- | |
| 4 | 01010-81230 | BOLT | 1701- | |
| 5 | 01643-31230 | WASHER | 1001- | |
| 6 | 23B-22-12110 | CASE,SIDE | 1701- | |
| 7 | 238-22-11890 | BUSHING | 1001- | |
| 8 | 07000-15315 | O-RING (K7) | 1001- | |
| 9 | 01010-81660 | BOLT | 1701- | |
| 10 | 01643-31645 | WASHER | 1001- | |
| 11 | 23B-22-12120 | FLANGE | 1701- | |
| 12 | 23A-22-11510 | TUBE | 1001- | |
| 13 | 23B-22-23140 | WASHER | 1701- | |
| 14 | 23B-22-12130 | PLATE | 1701- | |
| 15 | 23B-22-12140 | WASHER | 1701- | |
| 16 | 07000-15370 | O-RING (K7) | 1001- | |
| 17 | 23B-22-23150 | SEAL (K7) | 1701- | |
| 18 | 01010-81660 | BOLT | 1701- | |
| 19 | 01643-31645 | WASHER | 1001- | |
| 20 | 01010-81240 | BOLT | 1701- | |
| 21 | 01643-31232 | WASHER | 1701- |
