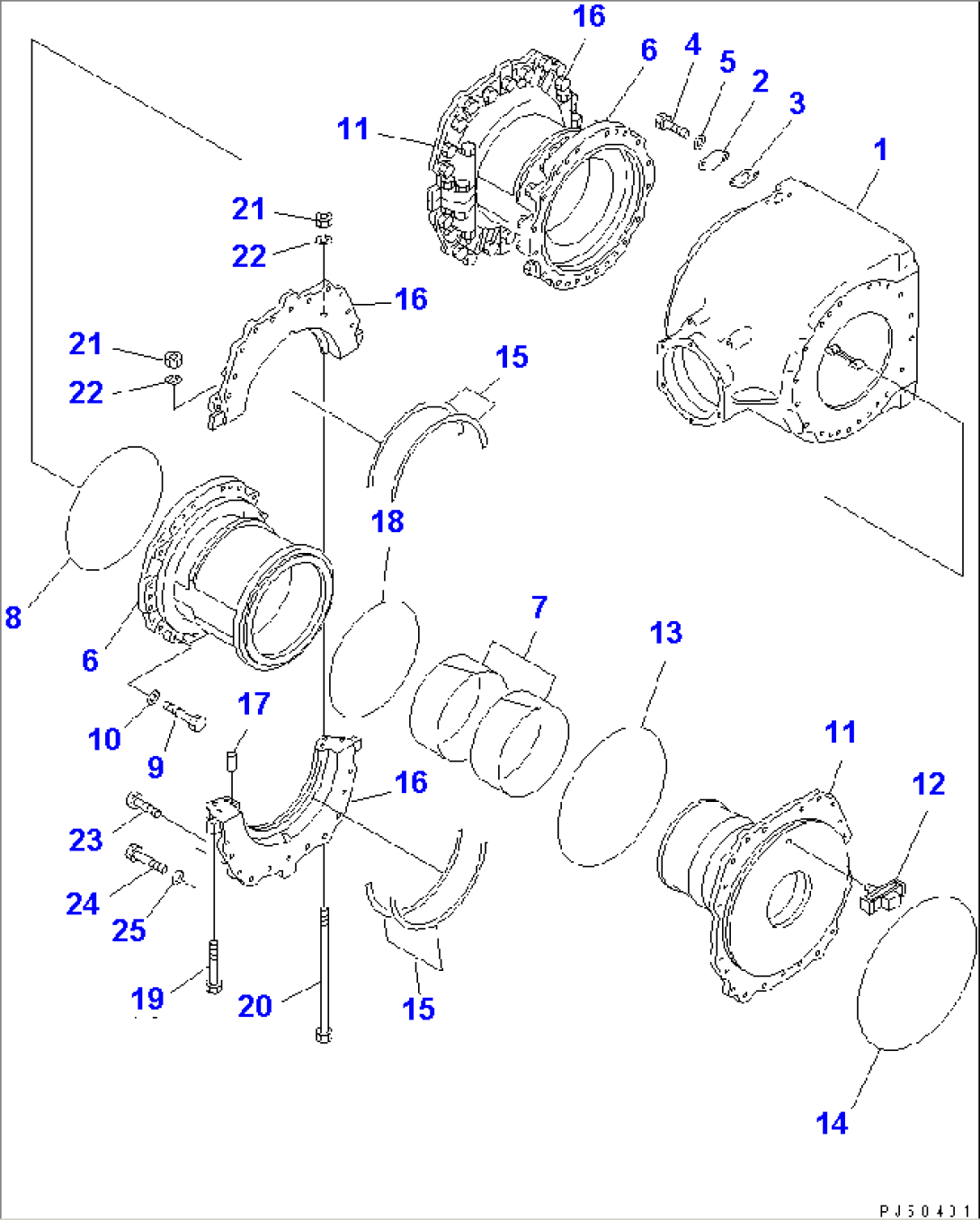

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-22-00510 | FINAL DRIVE ASS'Y | 4001-4100 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 TO 2607. | ||||
| 1 | 23B-22-11110 | CASE | 4001-@ | |
| 2 | 23A-22-11570 | PLATE | 4001-@ | |
| 3 | 23A-22-11651 | GASKET (KIT) | 4001-@ | |
| (\2\23A-22-11650) | GASKET (KIT) | (4001-4100) | ||
| 4 | 01010-51235 | BOLT | 4001-@ | |
| 5 | 01643-31232 | WASHER | 4001-@ | |
| 6 | 23B-22-21110 | CASE,SIDE | 4001-@ | |
| 7 | 23B-22-21190 | BUSHING | 4001-@ | |
| 8 | 07000-15315 | O-RING (KIT) | 4001-@ | |
| 9 | 01010-51660 | BOLT | 4001-@ | |
| 10 | 01643-31645 | WASHER | 4001-@ | |
| 11 | 23B-22-21120 | FLANGE | 4001-@ | |
| 12 | 23A-22-11510 | TUBE | 4001-@ | |
| 13 | 23B-22-21130 | O-RING (KIT) | 4001-@ | |
| 14 | 07000-15370 | O-RING (KIT) | 4001-@ | |
| 15 | 23B-22-21210 | WASHER | 4001-@ | |
| 23B-22-21200 | CAGE ASS'Y | 4001-4100 | ||
| 16 | \6\ | CAGE | 4001-4100 | |
| 17 | \6\ | PIN,DOWEL | 4001-@ | |
| 18 | 23B-22-21280 | O-RING (KIT) | 4001-@ | |
| 19 | 01010-51275 | BOLT | 4001-4100 | |
| 20 | 23B-22-11820 | BOLT | 4001-@ | |
| 21 | 01580-11210 | NUT | 4001-@ | |
| 22 | 01643-31232 | WASHER | 4001-@ | |
| 23 | 01010-51225 | BOLT | 4001-@ | |
| 24 | 01010-51665 | BOLT | 4001-@ | |
| 25 | 01643-31645 | WASHER | 4001-@ | |
| SERVICE KIT | ||||
| KIT | 23B-22-05030 | SERVICE KIT,FINAL DRIVE | 4001-4100 |
