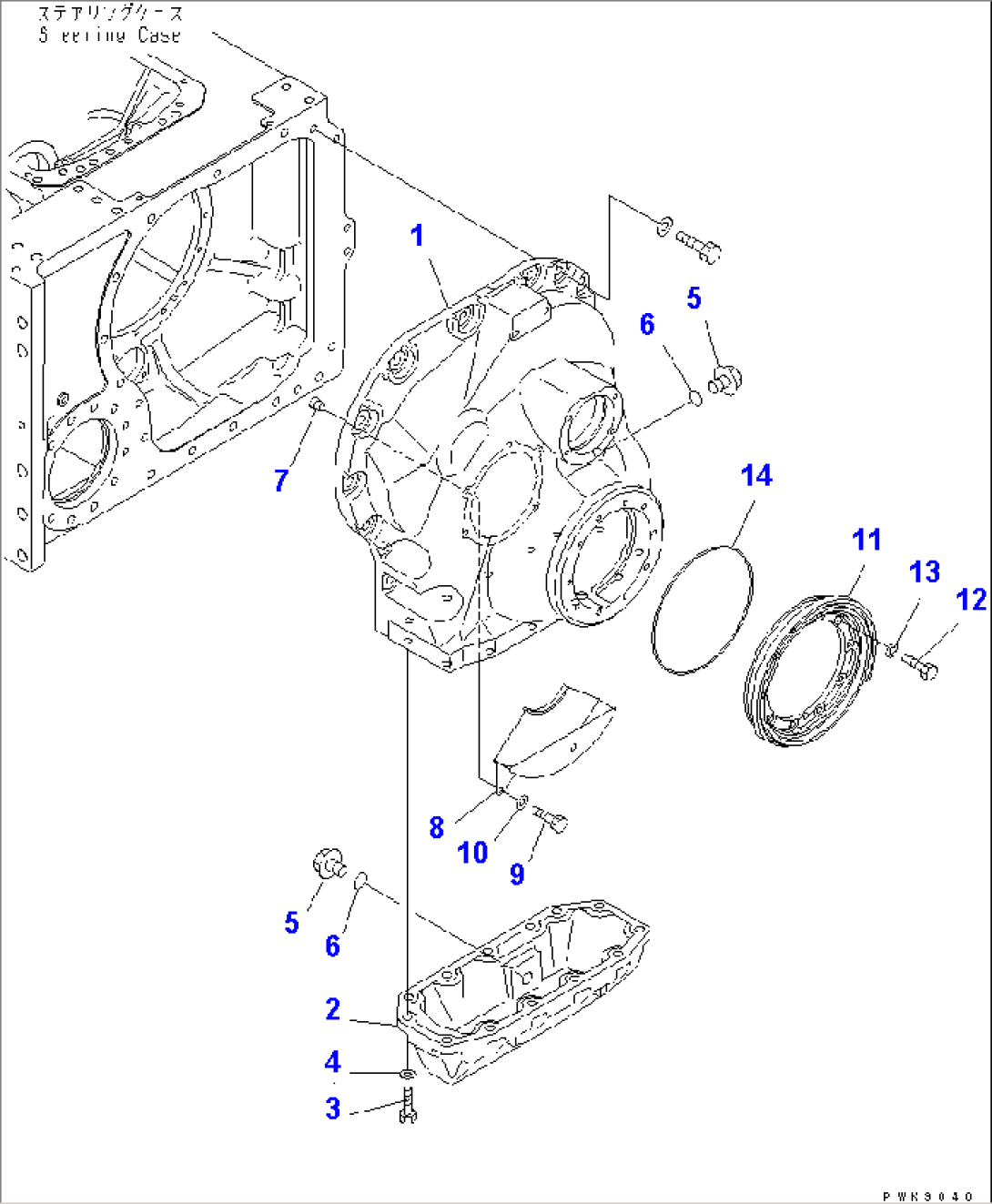

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-27-00142 | FINAL DRIVE ASS'Y,L.H. | 1003- | ||
| 134-27-00140 | FINAL DRIVE ASS'Y,L.H. | 1001-1002 | ||
| 134-27-00152 | FINAL DRIVE ASS'Y,R.H. | 1003- | ||
| 134-27-00150 | FINAL DRIVE ASS'Y,R.H. | 1001-1002 | ||
| 1 | 134-27-61113 | CASE,L.H. | 1003- | |
| 1 | 134-27-61112 | CASE,L.H. | 1001-1002 | |
| 1 | 134-27-61123 | CASE,R.H. | 1003- | |
| 1 | 134-27-61122 | CASE,R.H. | 1001-1002 | |
| 2 | 134-27-61133 | COVER,L.H. | 1003- | |
| 2 | 134-27-61132 | COVER,R.H. | 1001-1002 | |
| 2 | 134-27-61143 | COVER,L.H. | 1003- | |
| 2 | 134-27-61142 | COVER,R.H. | 1001-1002 | |
| 3 | 01010-82060 | BOLT | 1001- | |
| 4 | 01643-32060 | WASHER | 1001- | |
| 5 | 07044-13620 | PLUG | 1001- | |
| 6 | 07002-13634 | O-RING | 1001- | |
| 7 | 07043-70312 | PLUG | 1001- | |
| 8 | 134-27-61481 | COVER,L.H. | 1001- | |
| 8 | 134-27-61491 | COVER,R.H. | 1001- | |
| 9 | 01010-81225 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 134-27-61170 | COVER | 1001- | |
| 12 | 01010-81235 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 07000-15320 | O-RING | 1001- |
