| Item | Part No. | Part Name | Qty | Serial No. |

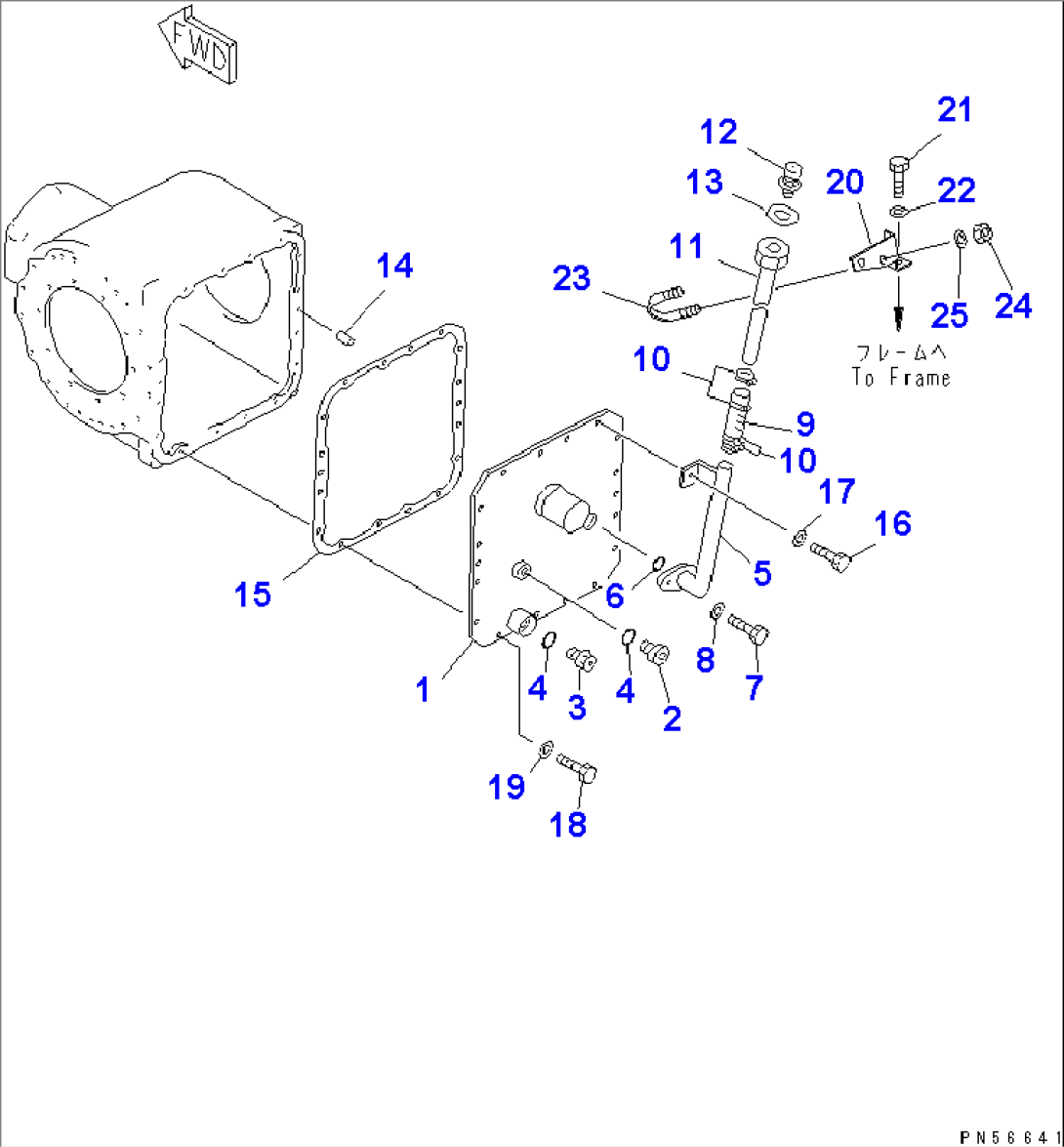

| (262-22-00020) | FINAL DRIVE ASS'Y | 12001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 TO 2606. | ||||
| 1 | 23B-22-11410 | COVER | 12001- | |
| 2 | 07040-12414 | PLUG | 12001- | |
| 3 | 07044-12412 | PLUG | 12001- | |
| 4 | 07002-12434 | O-RING (K3) | 12001- | |
| 5 | 262-22-11210 | TUBE | 12001- | |
| 6 | 07000-13045 | O-RING (K3) | 12001- | |
| 7 | 01010-51235 | BOLT | 12001- | |
| 8 | 01643-31232 | WASHER | 12001- | |
| 9 | 07260-24122 | HOSE | 12001- | |
| 10 | 07281-00609 | CLAMP | 12001- | |
| 11 | 262-22-11220 | TUBE | 12001- | |
| 12 | 232-23-11220 | BREATHER | 12001- | |
| 13 | 07003-03036 | GASKET (K3) | 12001- | |
| 14 | 04020-01228 | PIN,DOWEL | 12001- | |
| 15 | 232-22-55111 | GASKET (K3) | 12001- | |
| 16 | 01010-51240 | BOLT | 12001- | |
| 17 | 01643-31232 | WASHER | 12001- | |
| 18 | 01010-51245 | BOLT | 12001- | |
| 19 | 6090-02-5290 | SPACER | 12001- | |
| 20 | 262-22-71140 | PLATE | 12001- | |
| 21 | 01010-51016 | BOLT | 12001- | |
| 22 | 234-54-13252 | WASHER | 12001- | |
| 23 | 07283-24346 | CLIP | 12001- | |
| 24 | 01599-01011 | NUT | 12001- | |
| 25 | 01643-31032 | WASHER | 12001- |
