| Item | Part No. | Part Name | Qty | Serial No. |
| (235-22-00132) | FINAL DRIVE ASS'Y | 11099-12502 | ||
| (\0\235-22-00131) | FINAL DRIVE ASS'Y | 11031-11098 | ||
| (\0\235-22-00130) | FINAL DRIVE ASS'Y | 11001-11030 | ||

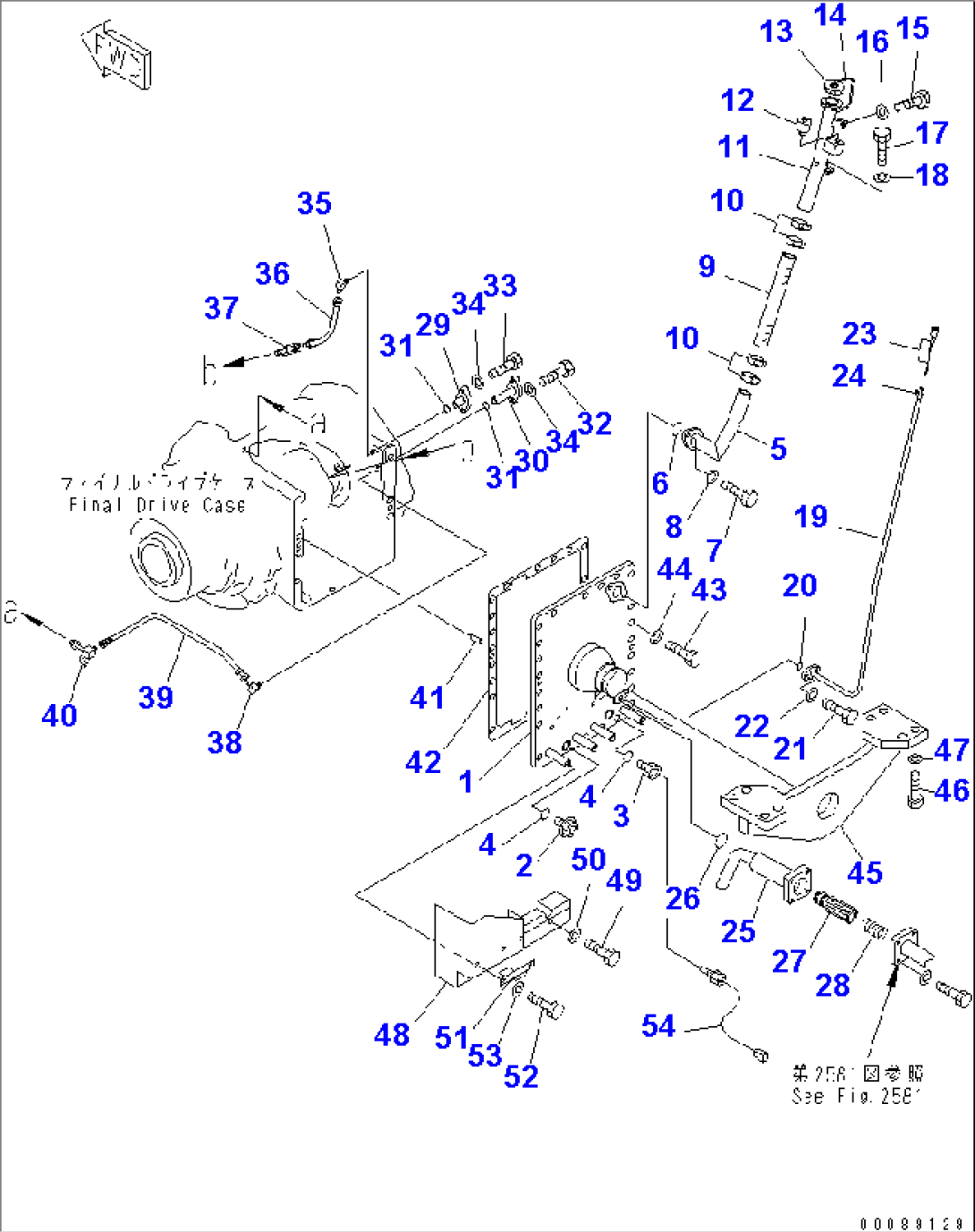

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2601 TO 2607. | ||||
| 1 | 235-22-31210 | COVER | 11001-12502 | |
| 2 | 07044-12412 | PLUG | 11001-@ | |
| 3 | 23B-22-21250 | PLUG | 11001-@ | |
| 4 | 07002-12434 | O-RING | 11001-@ | |
| 5 | 235-22-12240 | TUBE | 11001-@ | |
| 6 | 07000-13045 | O-RING | 11001-@ | |
| 7 | 01010-61235 | BOLT | 11001-@ | |
| 8 | 01643-31232 | WASHER | 11001-@ | |
| 9 | 07260-24125 | HOSE | 11001-@ | |
| 10 | 07281-00609 | CLAMP | 11001-@ | |
| 11 | 235-22-31310 | TUBE | 11001-@ | |
| 12 | 07030-10252 | BREATHER | 11001-@ | |
| 13 | 6136-21-7120 | CAP ASS'Y | 11001-@ | |
| 14 | 6136-21-7190 | CHAIN | 11001-@ | |
| 15 | 01010-81020 | BOLT | 11001-@ | |
| 16 | 01643-31032 | WASHER | 11001-@ | |
| 17 | 01010-81020 | BOLT | 11001-@ | |
| 18 | 01643-31032 | WASHER | 11001-@ | |
| 19 | 235-22-31360 | TUBE | 11001-@ | |
| 20 | 07000-13022 | O-RING | 11001-@ | |
| 21 | 01010-61030 | BOLT | 11001-@ | |
| 22 | 01643-31032 | WASHER | 11001-@ | |
| 23 | 235-22-31350 | GAUGE | 11001-@ | |
| 24 | 04434-51210 | CLIP | 11001-@ | |
| 25 | 235-22-12280 | CASE | 11001-@ | |
| 26 | 07000-12070 | O-RING | 11001-@ | |
| 27 | 125-15-11722 | MAGNET ASS'Y | 11001-@ | |
| 28 | 125-15-11790 | SPRING | 11001-@ | |
| 29 | 235-22-13350 | FLANGE | 11001-@ | |
| 30 | 235-22-12230 | FLANGE | 11001-@ | |
| 31 | 07000-13035 | O-RING | 11001-@ | |
| 32 | 01010-61035 | BOLT | 11001-@ | |
| 33 | 01010-61030 | BOLT | 11001-@ | |
| 34 | 01643-31032 | WASHER | 11001-@ | |
| 35 | 234-943-6660 | ELBOW | 11001-@ | |
| 36 | 235-22-12120 | TUBE | 11001-@ | |
| 37 | 235-22-12110 | TUBE | 11001-@ | |
| 38 | 233-40-33190 | ELBOW | 11001-@ | |
| 39 | 235-22-12940 | TUBE | 11001-@ | |
| 40 | 235-22-51410 | TUBE | 11001-@ | |
| 41 | 04020-01638 | PIN,DOWEL | 11001-@ | |
| 42 | 235-22-31222 | GASKET | 11031-@ | |
| 42 | 235-22-31221 | GASKET | 11001-11030 | |
| 43 | 01010-61645 | BOLT | 11001-@ | |
| 44 | 01643-31645 | WASHER | 11001-@ | |
| 45 | 235-22-31240 | HANGER | 11001-@ | |
| 46 | 01010-62470 | BOLT | 11001-@ | |
| 47 | 01643-32460 | WASHER | 11001-@ | |
| 48 | 235-22-31231 | COVER | 11001-12502 | |
| 49 | 01010-61025 | BOLT | 11001-12502 | |
| 50 | 01643-31032 | WASHER | 11001-@ | |
| 51 | 235-22-31250 | PLATE | 11001-12502 | |
| 52 | 01010-61030 | BOLT | 11001-12502 | |
| 53 | 01643-31032 | WASHER | 11001-@ | |
| 54 | 7861-92-3410 | SENSOR,FINAL DRIVE OIL TEMPERATURE | 11001-@ |
