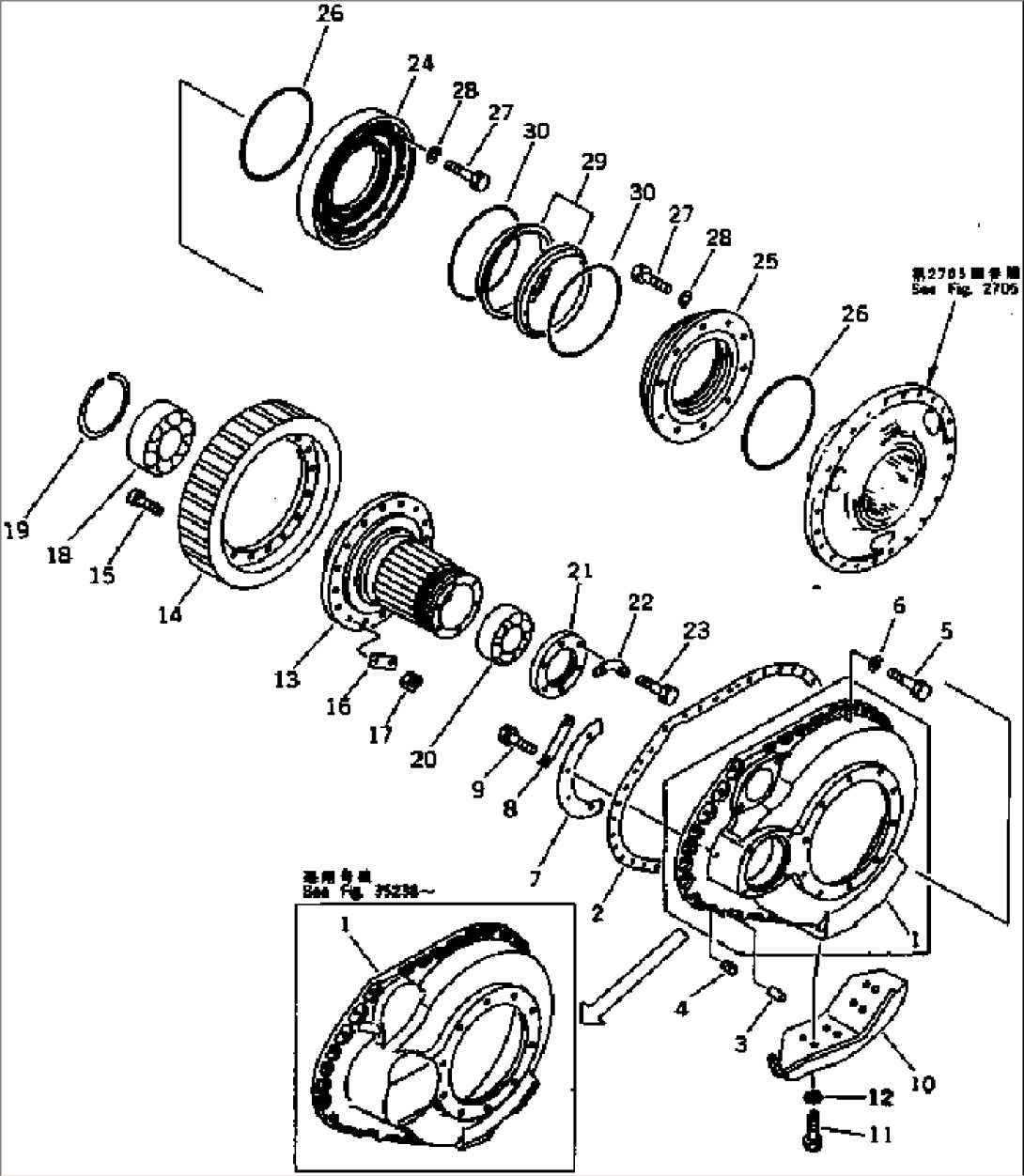

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-27-41130 | CASE,FINAL DRIVE, L.H. | 35238- | |
| 1 | \0\154-27-11113 | CASE,FINAL DRIVE, L.H. | 35001-35237 | |
| 1 | 154-27-41140 | CASE,FINAL DRIVE, R.H. | 35238- | |
| 1 | 154-27-11123 | CASE,FINAL DRIVE, R.H. | 35001-35237 | |
| 2 | 154-27-11460 | GASKET | 36345- | |
| 2 | \0\154-27-11130 | GASKET | 35001-36344 | |
| 3 | 04020-01842 | PIN,DOWEL | 35001- | |
| 4 | 07049-02025 | PLUG | 35001- | |
| 5 | 01010-52050 | BOLT | 35001- | |
| 6 | 01643-32060 | WASHER | 35001- | |
| 7 | 154-27-11410 | PLATE | 35001- | |
| 8 | 175-27-31540 | LOCK | 35001- | |
| 9 | 01010-51220 | BOLT | 35001- | |
| 10 | 154-27-41110 | GUARD,L.H. | 35001- | |
| 10 | 154-27-41120 | GUARD,R.H. | 35001- | |
| 11 | 01010-52045 | BOLT | 35001- | |
| 12 | 01643-32060 | WASHER | 35001- | |
| 13 | 154-27-12122 | HUB,SPROCKET | 35001- | |
| 14 | 154-27-12110 | GEAR,FINAL DRIVE | 35001- | |
| 15 | 175-27-12181 | BOLT,REAMER | 35001- | |
| 16 | 175-27-12190 | LOCK | 35001- | |
| 17 | 01582-02419 | NUT | 35001- | |
| 18 | 150-09-13110 | BEARING,ROLLER | 35001- | |
| 19 | 04071-00250 | RING,SNAP | 35001- | |
| 20 | 170-09-13250 | BEARING,ROLLER | 35001- | |
| 21 | 154-27-12560 | RETAINER | 35001- | |
| 22 | 17027-12210 | WASHER,LOCK | 35001- | |
| 23 | 01010-51440 | BOLT | 35001- | |
| 24 | 154-27-12152 | COVER | 35001- | |
| 25 | 154-27-12162 | COVER | 35001- | |
| 26 | 07000-05410 | O-RING | 35001- | |
| 27 | 01010-51230 | BOLT | 35001- | |
| 28 | 01602-21236 | WASHER,SPRING | 35001- | |
| 423-33-00020 | FLOATING SEAL ASS'Y | 35588- | ||
| \0\170-27-00023 | FLOATING SEAL ASS'Y | 35001-35587 | ||
| 29 | \6\ | RING,SEAL | 35001- | |
| 30 | \6\ | O-RING | 35588- | |
| 30 | \6\ | O-RING | 35001-35587 |
