| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-27-11210 | GUARD,L.H. | 45001- | |
| 1 | 144-27-11220 | GUARD,R.H. | 45001- | |
| 2 | 01010-51480 | BOLT | 45001- | |
| 3 | 01643-31445 | WASHER | 45001- | |
| 4 | 01010-51440 | BOLT | 45001- | |
| 5 | 01602-21442 | WASHER,SPRING | 45001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65e 8 s/n 45001 up
- Steering system and final drive
- Final drive case and guard wear
Поиск по каталогу

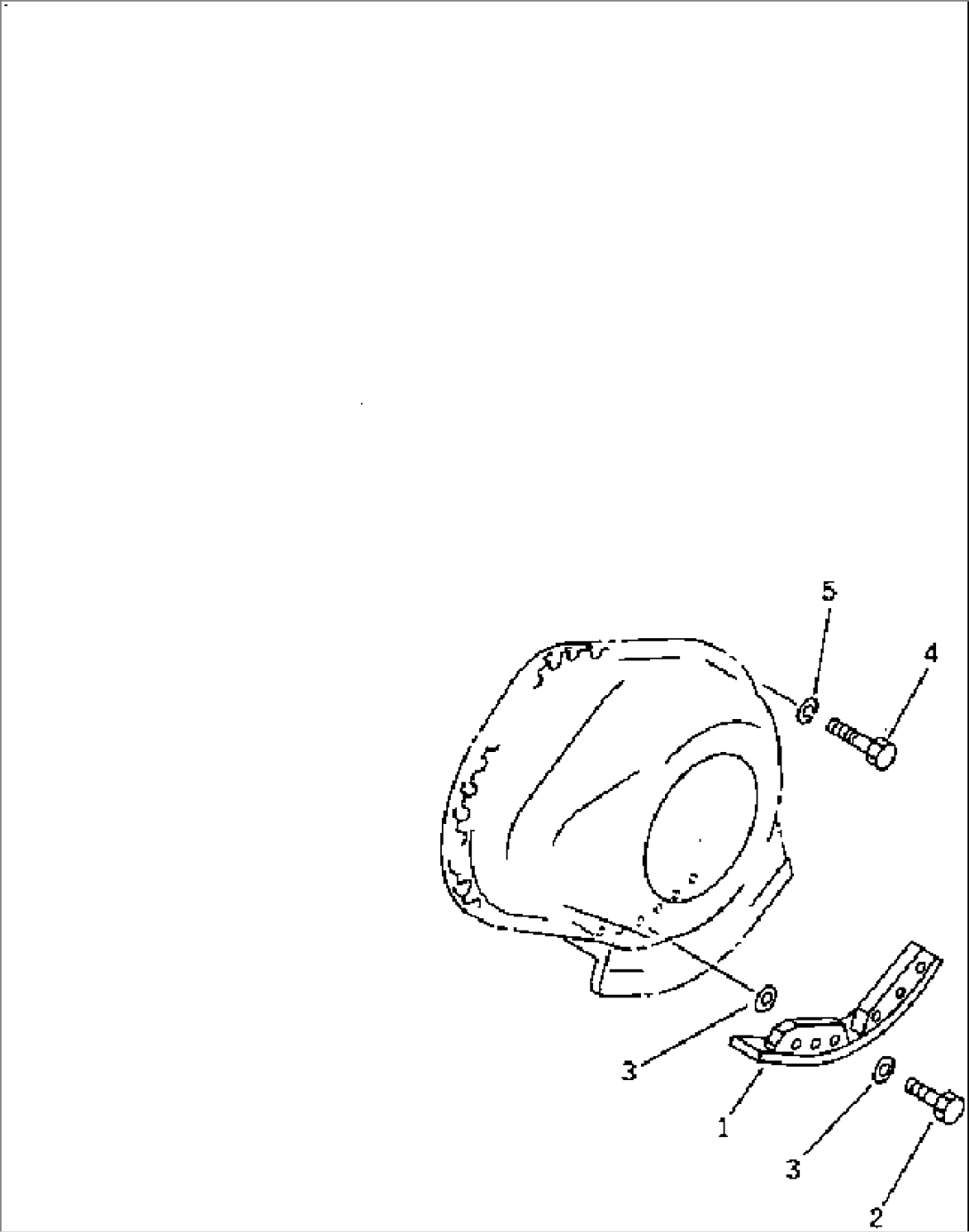

FINAL DRIVE CASE AND GUARD WEAR
