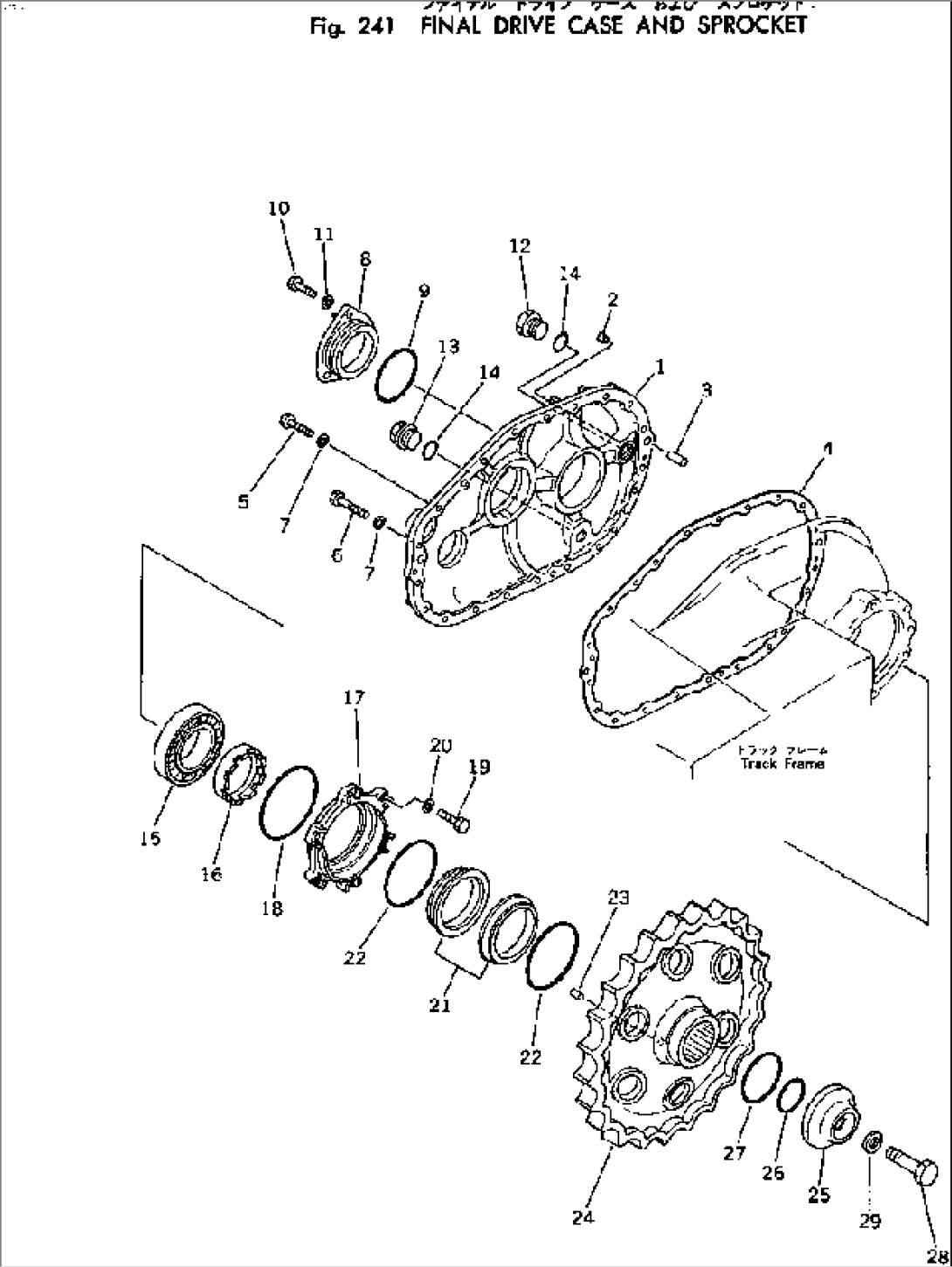

| Item | Part No. | Part Name | Qty | Serial No. |
| 205-27-00014 | FINAL DRIVE ASS'Y,L.H. | 11001- | ||
| 205-27-00024 | FINAL DRIVE ASS'Y,R.H. | 11001- | ||
| 1 | \6\ | CASE,L.H. | 11001- | |
| 1 | \6\ | CASE,R.H. | 11001- | |
| 2 | 07049-01418 | PLUG | 11001- | |
| 3 | 170-27-12250 | PIN,DOWEL | 11001- | |
| 4 | 205-27-51131 | GASKET | 11001- | |
| 5 | 01010-51650 | BOLT | 11001- | |
| 6 | 01010-51670 | BOLT | 11001- | |
| 7 | 01643-31645 | WASHER | 11001- | |
| 8 | 205-27-62330 | COVER | 11001- | |
| 9 | 07000-05150 | O-RING | 11001- | |
| 10 | 01010-51440 | BOLT | 11001- | |
| 11 | 01643-31445 | WASHER | 11001- | |
| 12 | 07040-13618 | PLUG | 11001- | |
| 13 | 07044-13620 | PLUG | 11001- | |
| 14 | 07002-03634 | O-RING | 11001- | |
| 15 | 06030-23026 | BEARING | 11001- | |
| 16 | 205-27-52160 | NUT | 11001- | |
| 17 | 205-27-62341 | COVER | 11001- | |
| 18 | 07000-05200 | O-RING | 11001- | |
| 19 | 01010-51435 | BOLT | 11001- | |
| 20 | 01643-31445 | WASHER | 11001- | |
| 180-27-00024 | FLOATING SEAL ASS'Y | 11366- | ||
| \0\205-27-00040 | FLOATING SEAL ASS'Y | 11001-11365 | ||
| 21 | 180-27-00072 | SEAL RING ASS'Y | 11366- | |
| 21 | \0\180-27-00070 | SEAL RING ASS'Y | 11001-11365 | |
| 21 | \6\ | RING,SEAL | 11366- | |
| 21 | \6\ | RING,SEAL | 11001-11365 | |
| 22 | 180-27-00081 | O-RING ASS'Y | 11001- | |
| 22 | \6\ | O-RING | 11001- | |
| 23 | 04020-00820 | PIN,DOWEL | 11001- | |
| 24 | 206-27-21111 | SPROCKET | 11001- | |
| 25 | 205-27-51261 | COVER | 11001- | |
| 26 | 07000-05085 | O-RING | 11001- | |
| 27 | 07000-05125 | O-RING | 11001- | |
| 28 | 205-27-52110 | BOLT | 11001- | |
| 29 | 01643-33380 | WASHER | 11001- |
