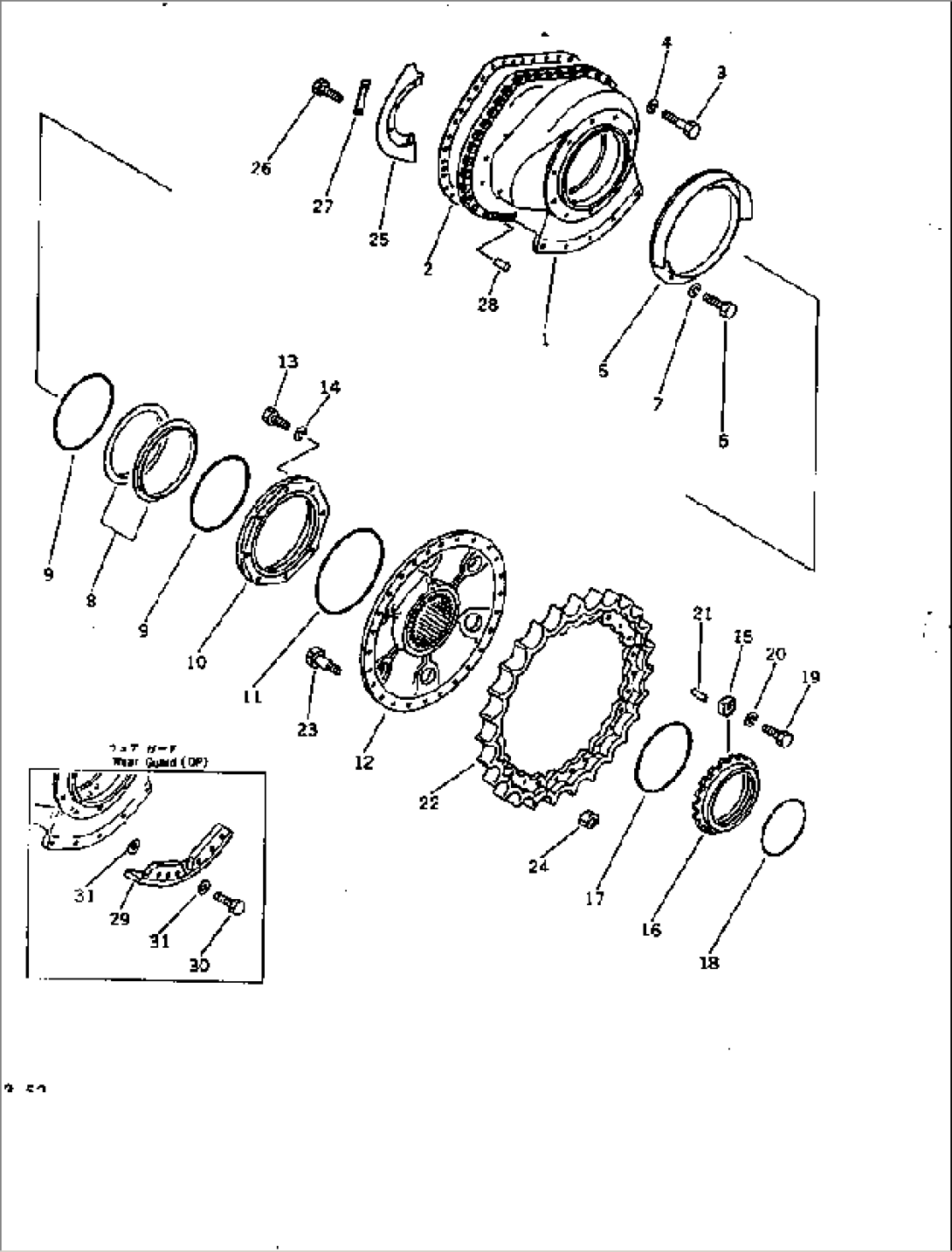

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 141-27-31125 | CASE,FINAL DRIVE, L.H. | .- | |
| 1 | \0\144-27-11110 | CASE,FINAL DRIVE, L.H. | 45001-. | |
| 1 | 141-27-31115 | CASE,FINAL DRIVE, R.H. | .- | |
| 1 | \0\144-27-11120 | CASE,FINAL DRIVE, R.H. | 45001-. | |
| 2 | 141-27-31240 | GASKET (KIT) | 45001- | |
| 3 | 01010-51440 | BOLT | 45001- | |
| 4 | 01602-21442 | WASHER | 45001- | |
| 5 | 144-27-12260 | GUARD | 45001- | |
| 6 | 01010-51020 | BOLT | 45001- | |
| 7 | 01602-21030 | WASHER | 45001- | |
| 150-27-00027 | FLOATING SEAL ASS'Y | 45001- | ||
| 8 | \6\ | RING,SEAL | 45001- | |
| 9 | \6\ | O-RING (KIT) | 45001- | |
| 10 | 14G-27-11230 | GUARD | 45001- | |
| 11 | 07000-05345 | O-RING (KIT) | 45001- | |
| 12 | 141-27-32115 | HUB | 45001- | |
| 13 | 145-27-42230 | BOLT | 45001- | |
| 14 | 01602-21030 | WASHER | 45001- | |
| 15 | 141-27-32220 | PLATE,LOCK | 45001- | |
| 16 | 141-27-32330 | NUT | 45001- | |
| 17 | 07000-05270 | O-RING (KIT) | 45001- | |
| 18 | 07000-05230 | O-RING (KIT) | 45001- | |
| 19 | 01252-31635 | BOLT | 45001- | |
| 20 | 01602-21648 | WASHER | 45001- | |
| 21 | 04020-01228 | PIN,DOWEL | 45001- | |
| 22 | 141-27-32410 | TEETH | 45001- | |
| 23 | 154-27-12320 | BOLT | 45001- | |
| 24 | 01803-02228 | NUT | 45001- | |
| 25 | 144-27-11141 | PLATE,L.H. | 45001- | |
| 25 | 144-27-11170 | PLATE,R.H. | 45001- | |
| 26 | 01010-51220 | BOLT | 45001- | |
| 27 | 144-27-11150 | PLATE (KIT) | 45001- | |
| 28 | 04020-01638 | PIN,DOWEL | 45001- | |
| 29 | 144-27-11210 | GUARD,WEAR, L.H. (OP) | 45001- | |
| 29 | 144-27-11220 | GUARD,WEAR, R.H. (OP) | 45001- | |
| 30 | 01010-51470 | BOLT (OP) | 45001- | |
| 31 | 01643-31445 | WASHER (OP) | 45001- |
