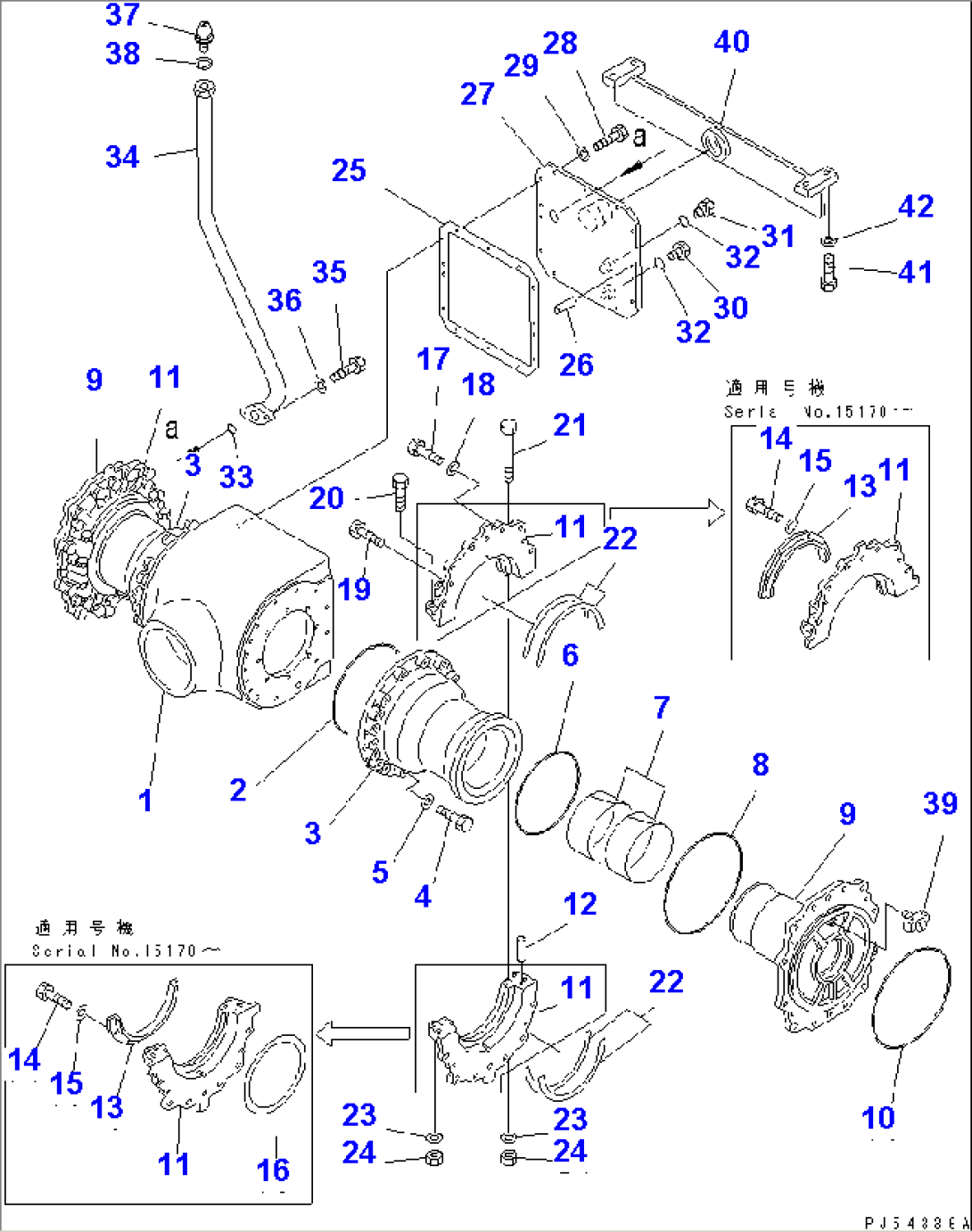

| Item | Part No. | Part Name | Qty | Serial No. |
| 23A-22-01021 | FINAL DRIVE ASS'Y | 15001-15359 | ||
| (\2\23A-22-01020) | FINAL DRIVE ASS'Y | (15001-15169) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2601 AND 2605. | ||||
| 1 | 23A-22-11110 | CASE | 15001-@ | |
| 2 | 07000-15290 | O-RING (K2) | 15001-@ | |
| 3 | 23A-22-11120 | CASE,SIDE | 15001-15359 | |
| 4 | 01010-51660 | BOLT | 15001-@ | |
| 5 | 01643-31645 | WASHER | 15001-@ | |
| 6 | 07000-16225 | O-RING (K2) | 15001-15359 | |
| 7 | 23A-22-11450 | BUSHING | 15001-@ | |
| 8 | 23A-22-11490 | O-RING (K2) | 15001-@ | |
| 9 | 23A-22-11130 | FLANGE | 15001-15359 | |
| 10 | 07000-15310 | O-RING (K2) | 15001-@ | |
| 23A-22-11401 | CAGE ASS'Y | 15001-15359 | ||
| (\2\23A-22-11400) | CAGE ASS'Y | (15001-15169) | ||
| 11 | \6\ | CAGE | 15170-15359 | |
| 11 | \6\ | CAGE | 15001-15169 | |
| 12 | \6\ | PIN,DOWEL | 15001-@ | |
| 13 | 23D-22-11450 | CAP | 15001-15359 | |
| 14 | 01010-50822 | BOLT | 15001-15359 | |
| 15 | 01643-30823 | WASHER | 15001-15359 | |
| 16 | 07001-06225 | RING,BACK-UP | 15001-15359 | |
| 17 | 01010-51665 | BOLT | 15001-@ | |
| 18 | 01643-31645 | WASHER | 15001-@ | |
| 19 | 01010-51225 | BOLT | 15001-@ | |
| 20 | 01010-51280 | BOLT | 15001-@ | |
| 21 | 23A-22-11480 | BOLT | 15001-15359 | |
| 22 | 23A-22-11460 | WASHER | 15001-@ | |
| 23 | 01643-31232 | WASHER | 15001-15359 | |
| 24 | 01580-11210 | NUT | 15001-@ | |
| 25 | 238-22-15120 | GASKET (K2) | 15001-@ | |
| 26 | 04020-01228 | PIN | 15001-@ | |
| 27 | 23A-22-11530 | COVER | 15001-@ | |
| 28 | 01010-51235 | BOLT | 15001-@ | |
| 29 | 01643-31232 | WASHER | 15001-@ | |
| 30 | 07044-12412 | PLUG | 15001-@ | |
| 31 | 07040-12414 | PLUG | 15001-@ | |
| 32 | 07002-12434 | O-RING (K2) | 15001-@ | |
| 33 | 07000-13045 | O-RING (K2) | 15001-@ | |
| 34 | 23A-22-11560 | TUBE | 15001-@ | |
| 35 | 01010-51235 | BOLT | 15001-@ | |
| 36 | 01643-31232 | WASHER | 15001-@ | |
| 37 | 232-23-11220 | BREATHER | 15001-@ | |
| 38 | 07003-03036 | GASKET (K2) | 15001-@ | |
| 39 | 23A-22-11510 | TUBE | 15001-@ | |
| 40 | 23B-22-11430 | HANGER | 15001-@ | |
| 41 | 01010-51650 | BOLT | 15001-@ | |
| 42 | 01643-31645 | WASHER | 15001-@ |
