| Item | Part No. | Part Name | Qty | Serial No. |
| (154-27-00422) | FINAL DRIVE ASS'Y | 11340- | ||
| (154-27-00421) | FINAL DRIVE ASS'Y | 11305-11339 | ||
| (154-27-00420) | FINAL DRIVE ASS'Y | 1201-11304 | ||

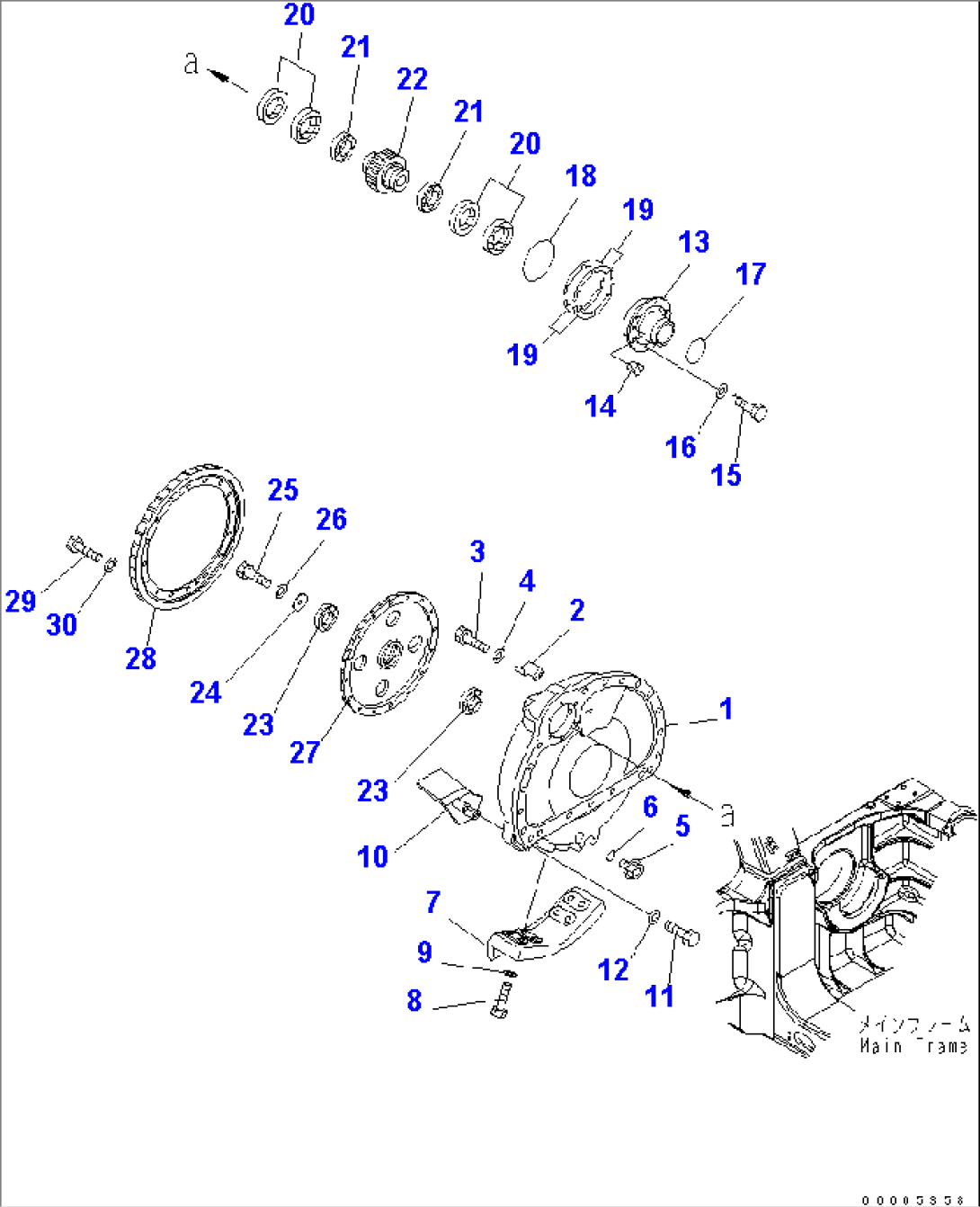

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A0 TO 06A0. | ||||
| 1 | 154-27-72121 | CASE | 1201- | |
| 2 | 17A-27-11381 | PLATE | 1201- | |
| 3 | 01010-81020 | BOLT | 1201- | |
| 4 | 01643-31032 | WASHER | 1201- | |
| 5 | 07044-13620 | PLUG | 1201- | |
| 6 | 07002-13634 | O-RING | 1201- | |
| 7 | 154-27-71621 | GUARD | 1201- | |
| 8 | 01010-82055 | BOLT | 1201- | |
| 9 | 01643-32060 | WASHER | 1201- | |
| 10 | 154-30-75290 | PLATE | 1201- | |
| 11 | 01010-82055 | BOLT | 1201- | |
| 12 | 01643-32060 | WASHER | 1201- | |
| 13 | 154-27-71410 | CAGE | 1201- | |
| 14 | 07049-01215 | PLUG | 1201- | |
| 15 | 01010-81235 | BOLT | 1201- | |
| 16 | 01643-31232 | WASHER | 1201- | |
| 17 | 07000-15105 | O-RING | 1201- | |
| 18 | 07000-15145 | O-RING | 1201- | |
| 19 | 154-27-00381 | SHIM ASS'Y | 1201- | |
| \6\ | SHIM | 1201- | ||
| \6\ | SHIM | 1201- | ||
| \6\ | SHIM | 1201- | ||
| 20 | 154-09-71210 | OIL SEAL | 1201- | |
| 21 | 154-09-71110 | BEARING | 1201- | |
| 22 | 154-27-71210 | GEAR | 1201- | |
| 23 | 154-09-71120 | BEARING | 1201- | |
| 24 | 154-27-72331 | HOLDER | 1201- | |
| 25 | 01010-81645 | BOLT | 1201- | |
| 26 | 01643-31645 | WASHER | 1201- | |
| 27 | 154-27-72231 | HUB | 1201- | |
| 28 | 154-27-72220 | GEAR | 1201- | |
| 29 | 01010-81645 | BOLT | 1201- | |
| 30 | 01643-31645 | WASHER | 1201- |
