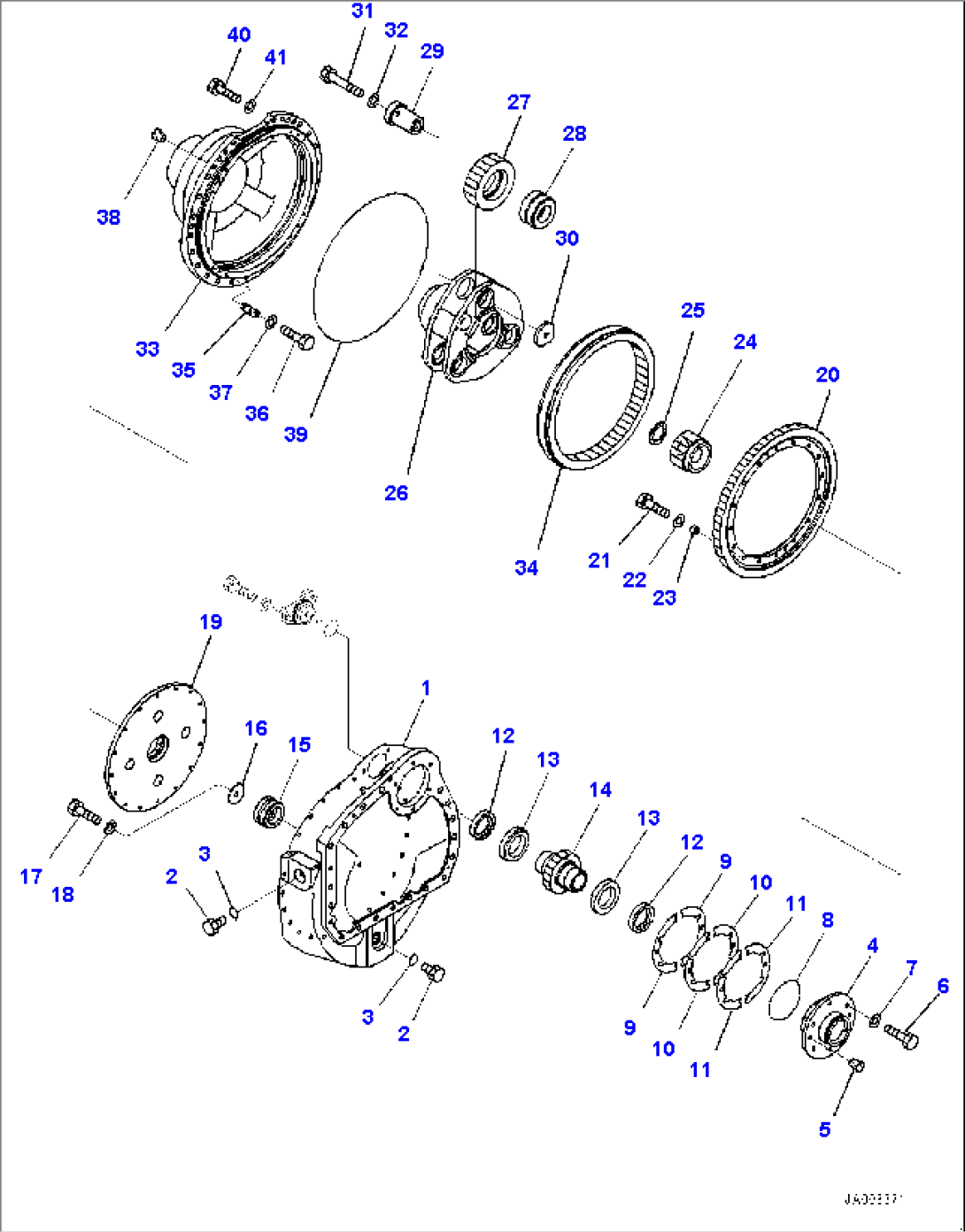

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-27-00233 | Final Drive, R.H. | 3099- | ||
| 14X-27-00232 | Final Drive | 2609-3098 | ||
| 14X-27-00231 | Final Drive Group | 1001-2606 | ||
| 1 | 14X-27-51122 | Case | 2607- | |
| 1 | 14X-27-51121 | Case | 1001-2606 | |
| 2 | 07044-13620 | Plug | 1001- | |
| 3 | 07002-13634 | O-ring | 1001- | |
| 4 | 14X-27-51190 | Cage | 1001- | |
| 5 | 07049-01215 | Plug | 1001- | |
| 6 | 01010-81235 | Bolt | 1001- | |
| 7 | 01643-31232 | Washer | 1001- | |
| 8 | 07000-15150 | O-ring | 1001- | |
| 8 | 14X-27-00390 | Shim Kit | 1001- | |
| 9 | Shim, T=0.2mm | 1001- | ||
| 10 | Shim, T=0.3mm | 1001- | ||
| 11 | Shim, T=1.0mm | 1001- | ||
| 12 | 07013-70080 | Seal, Oil | 1001- | |
| 13 | 14X-09-51130 | Bearing | 1001- | |
| 14 | 14X-27-51260 | Pinion | 1001- | |
| 15 | 14X-09-51140 | Bearing | 1001- | |
| 16 | 154-27-72331 | Holder | 1001- | |
| 17 | 01010-81645 | Bolt | 1001- | |
| 18 | 01643-31645 | Washer | 1001- | |
| 19 | 14X-27-51280 | Hub | 1001- | |
| 20 | 14X-27-51270 | Gear | 1001- | |
| 21 | 01010-81250 | Bolt | 1001- | |
| 22 | 01643-31232 | Washer | 1001- | |
| 23 | 140-901-6250 | Boss | 1001- | |
| 24 | 14X-27-51230 | Gear | 1001- | |
| 25 | 207-27-52270 | Spacer | 1001- | |
| 26 | 14X-27-55160 | Carrier | 1001- | |
| 27 | 14X-27-51240 | Gear | 1001- | |
| 28 | 14X-09-51120 | Bearing | 1001- | |
| 29 | 14X-27-51310 | Shaft | 1001- | |
| 30 | 154-27-72320 | Holder | 1001- | |
| 31 | 01011-81620 | Bolt | 1001- | |
| 32 | 01643-31645 | Washer | 1001- | |
| 33 | 14X-27-55132 | Cover | 1001- | |
| 34 | 14X-27-51250 | Gear | 1001- | |
| 35 | 14X-27-51350 | Plate | 1001- | |
| 36 | 01010-81025 | Bolt | 1001- | |
| 37 | 01643-31032 | Washer | 1001- | |
| 38 | 07049-01620 | Plug | 1001- | |
| 39 | 566-13-13341 | O-ring | 1001- | |
| 40 | 01010-81645 | Bolt | 1001- | |
| 41 | 01643-31645 | Washer | 1001- |
