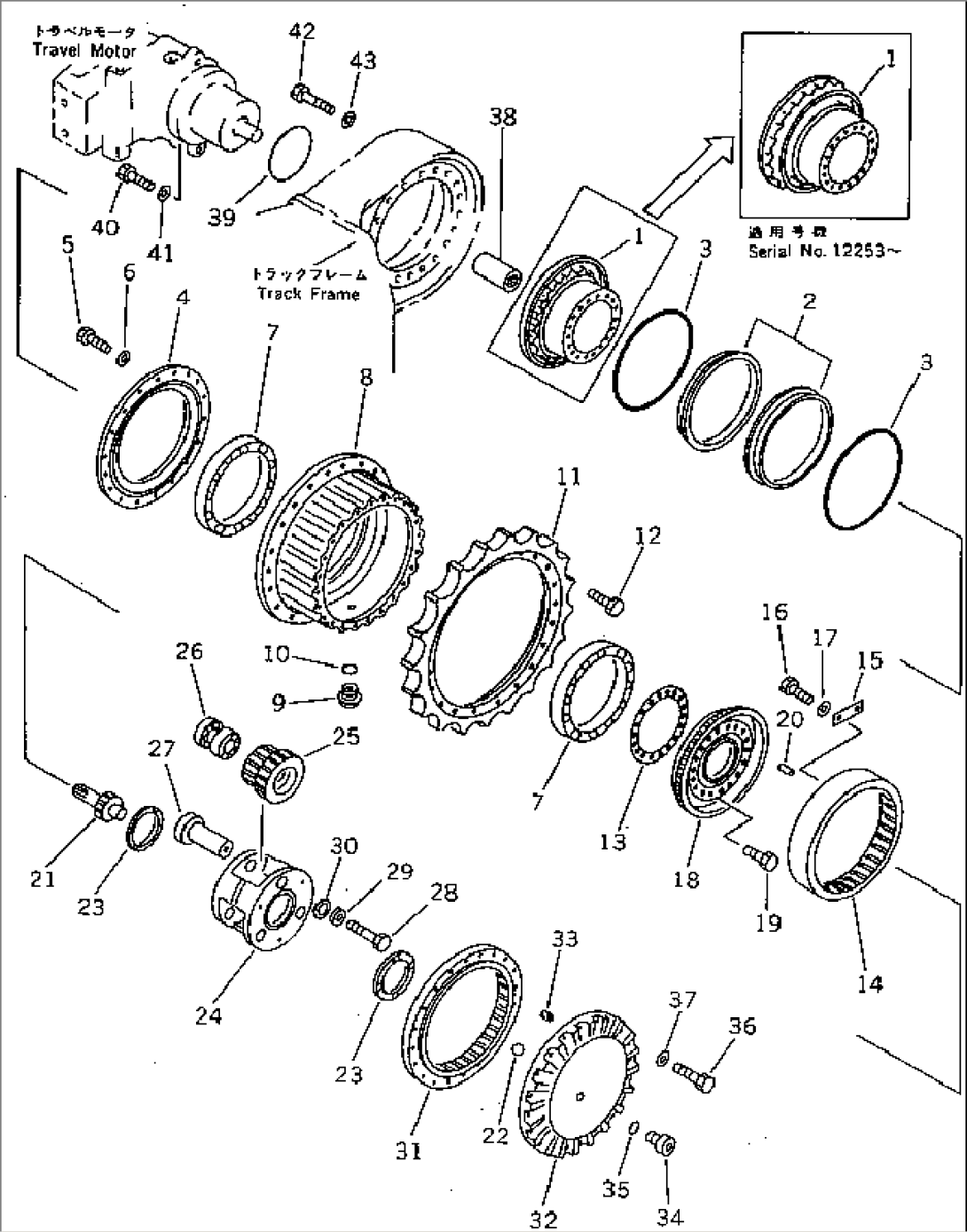

| Item | Part No. | Part Name | Qty | Serial No. |
| 208-27-00061 | FINAL DRIVE ASS'Y | 12253- | ||
| \0\208-27-00060 | FINAL DRIVE ASS'Y | 11001-12252 | ||
| 1 | 208-27-31631 | SHAFT | 12253- | |
| 1 | 208-27-31630 | SHAFT | 11001-12252 | |
| 287-33-00010 | FLOATING SEAL ASS'Y | 11001- | ||
| 2 | 287-33-00090 | SEAL RING ASS'Y | 11001- | |
| 2 | \6\ | RING | 11001- | |
| 3 | 180-27-00100 | O-RING ASS'Y | 11001- | |
| 3 | \6\ | O-RING | 11001- | |
| 4 | 208-27-31641 | COVER | 12253- | |
| 4 | 208-27-31640 | COVER | 11001-12252 | |
| 5 | 01010-51230 | BOLT | 11001- | |
| 6 | 01643-31232 | WASHER | 11001- | |
| 7 | 208-27-31621 | BEARING | 12253- | |
| 7 | 208-27-31620 | BEARING | 11001-12252 | |
| 8 | 208-27-31611 | HUB | 12253- | |
| 8 | 208-27-31610 | HUB | 11001-12252 | |
| 9 | 07044-12412 | PLUG | 11001- | |
| 10 | 07002-02434 | O-RING | 11001- | |
| 11 | 208-27-31221 | SPROCKET | 11001- | |
| 12 | 01010-52050 | BOLT | 11001- | |
| 13 | 208-27-51280 | SPACER, 3.30MM | 12253- | |
| 13 | 208-27-31440 | SPACER, 3.30MM | 11001-12252 | |
| 14 | 208-27-31196 | GEAR | 12253- | |
| 14 | 208-27-31193 | GEAR | 11001-12252 | |
| 15 | 207-26-31290 | PLATE | 12253- | |
| 15 | 205-26-71510 | PLATE | 11001-12252 | |
| 16 | 01010-50820 | BOLT | 11001- | |
| 17 | 01643-50823 | WASHER | 11001- | |
| 18 | 208-27-31216 | GEAR | 12253- | |
| 18 | 208-27-31215 | GEAR | 11001-12252 | |
| 19 | 208-27-31372 | BOLT | 11001- | |
| 20 | 154-33-11720 | PIN | 11001- | |
| 21 | 208-27-31174 | GEAR | 12253- | |
| 21 | 208-27-31520 | GEAR | 11001-12252 | |
| 22 | 04260-01905 | BALL | 11001- | |
| 23 | 208-27-31340 | SPACER | 11001- | |
| 24 | 208-27-31152 | CARRIER | 12253- | |
| 24 | 208-27-31580 | CARRIER | 11001-12252 | |
| 25 | 208-27-00071 | PLANETARY GEAR A. | 12253- | |
| 25 | 208-27-00070 | PLANETARY GEAR A. | 11001-12252 | |
| 25 | \6\ | GEAR | 12253- | |
| 25 | \6\ | GEAR | 11001-12252 | |
| 26 | 208-27-31561 | BEARING,(WITH SPACER) | 12253- | |
| 26 | 208-27-31560 | BEARING,(WITH SPACER) | 11001-12252 | |
| 27 | 208-27-31262 | PIN | 12253- | |
| 27 | 208-27-31550 | PIN | 11001-12252 | |
| 28 | 01011-51620 | BOLT | 11001- | |
| 29 | 208-27-31570 | SPACER | 11001- | |
| 30 | 208-27-31720 | SPACER | 12253- | |
| 30 | 207-27-33350 | SPACER | 11001-12252 | |
| 31 | 208-27-31164 | GEAR | 12253- | |
| 31 | 208-27-31540 | GEAR | 11001-12252 | |
| 32 | 208-27-31143 | COVER | 12253- | |
| 32 | 208-27-31590 | COVER | 11001-12252 | |
| 33 | 07049-01215 | PLUG | 11001- | |
| 34 | 07040-13618 | PLUG | 12253- | |
| 34 | 07040-12414 | PLUG | 11001-12252 | |
| 35 | 07002-03634 | O-RING | 12253- | |
| 35 | 07002-02434 | O-RING | 11001-12252 | |
| 36 | 01011-52020 | BOLT | 12253- | |
| 36 | 01011-52010 | BOLT | 11001-12252 | |
| 37 | 01643-32060 | WASHER | 12253- | |
| 37 | 01643-32060 | WASHER | 11001-12252 | |
| 38 | 208-27-31240 | COUPLING | 11001- | |
| 39 | 07000-05240 | O-RING | 11001- | |
| 40 | 01010-52485 | BOLT | 11001- | |
| 41 | 01643-32460 | WASHER | 11001- | |
| 42 | 01011-52000 | BOLT | 11001- | |
| 43 | 01643-32060 | WASHER | 11001- | |
| ADJUSTMENT SPACER | ||||
| 13 | 208-27-31510 | SPACER, 3.25MM | 11723-12252 | |
| 13 | 208-27-31450 | SPACER, 3.35MM | 11723-12252 | |
| 13 | 208-27-31460 | SPACER, 3.40MM | 11723-12252 | |
| 13 | 208-27-31470 | SPACER, 3.45MM | 11723-12252 | |
| 13 | 208-27-31480 | SPACER, 3.50MM | 11723-12252 | |
| 13 | 208-27-31490 | SPACER, 3.55MM | 11723-12252 | |
| 13 | 208-27-51350 | SPACER, 3.25MM | 12253- | |
| 13 | 208-27-51290 | SPACER, 3.35MM | 12253- | |
| 13 | 208-27-51310 | SPACER, 3.40MM | 12253- | |
| 13 | 208-27-51320 | SPACER, 3.45MM | 12253- | |
| 13 | 208-27-51330 | SPACER, 3.50MM | 12253- | |
| 13 | 208-27-51340 | SPACER, 3.55MM | 12253- |
